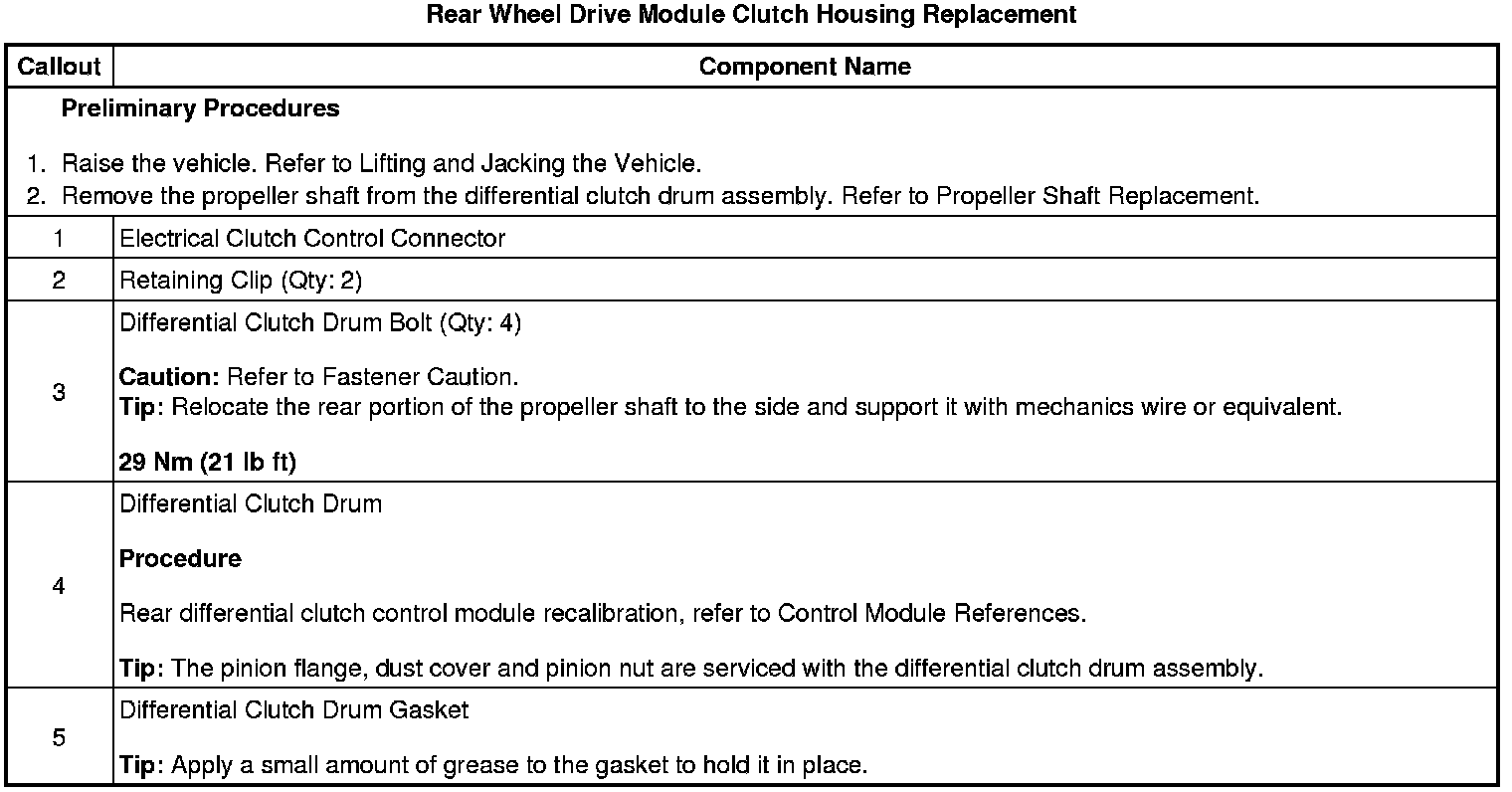

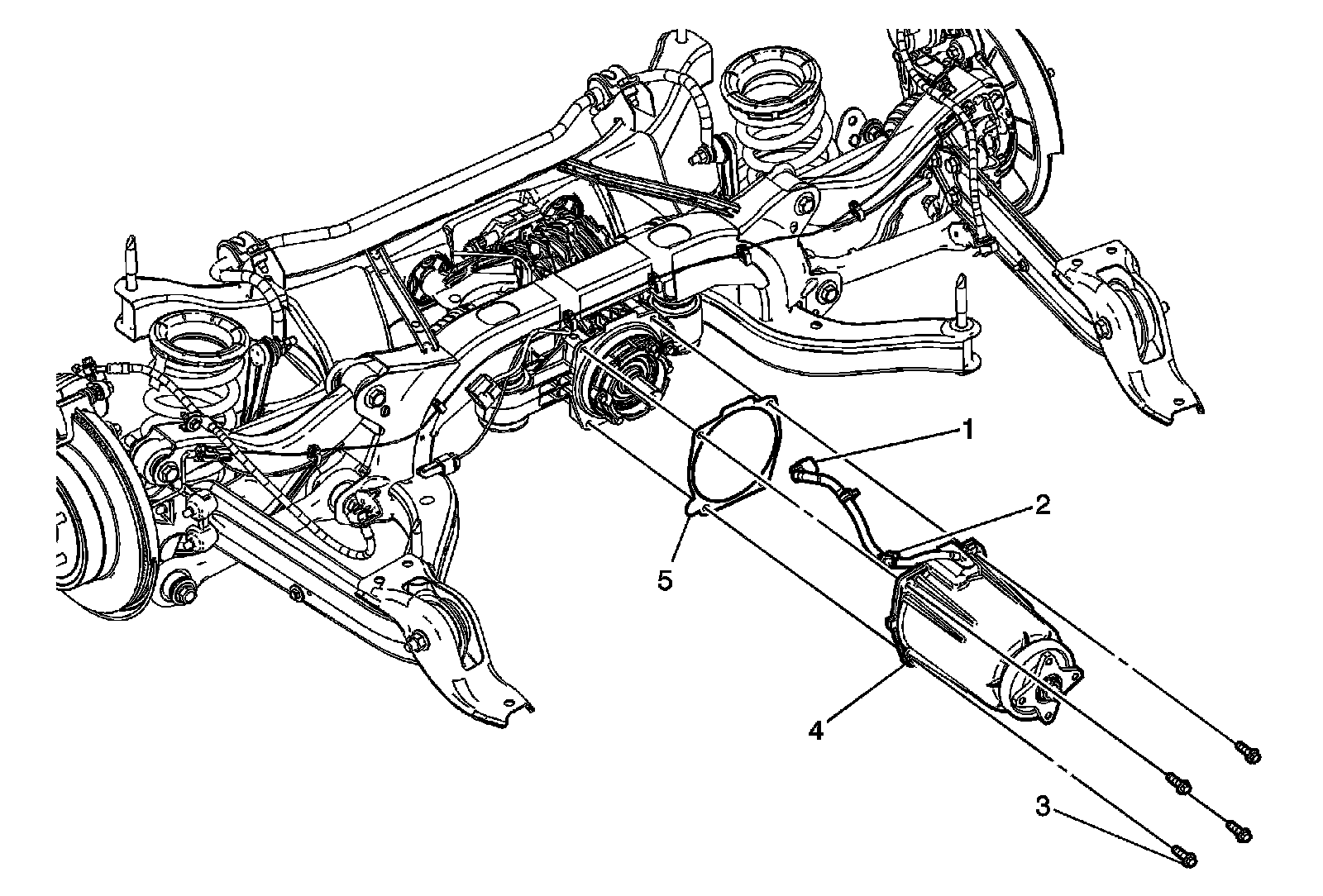

Rear Wheel Drive Module Clutch Housing Replacement
Rear Wheel Drive Module Clutch Housing Replacement
