Brake Fluid Level Sensor/Switch: Service and Repair

Brake Fluid Level Indicator Switch Replacement

Removal Procedure

1. Remove the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement Accessory Wiring Junction Block Replacement.

2. Disconnect the brake fluid level indicator switch electrical connector.

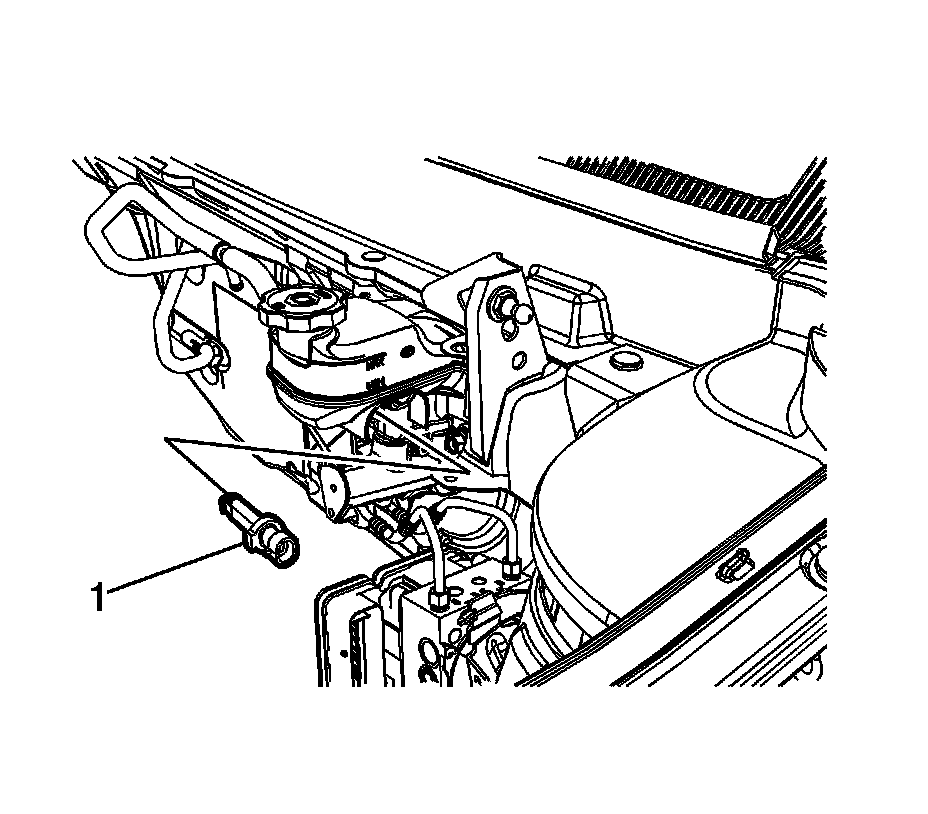

3. While compressing the retaining tabs on the inboard side of the brake fluid level indicator switch (1), carefully remove the switch from the brake master cylinder reservoir.

Installation Procedure





Note:
Ensure the retaining tabs on the brake fluid level indicator switch are fully engaged in the master cylinder reservoir.

1. Install the brake fluid level indicator switch (1) by carefully inserting the switch into the master cylinder reservoir.

2. Connect the brake fluid level indicator switch electrical connector.

3. Install the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement Accessory Wiring Junction Block Replacement.
