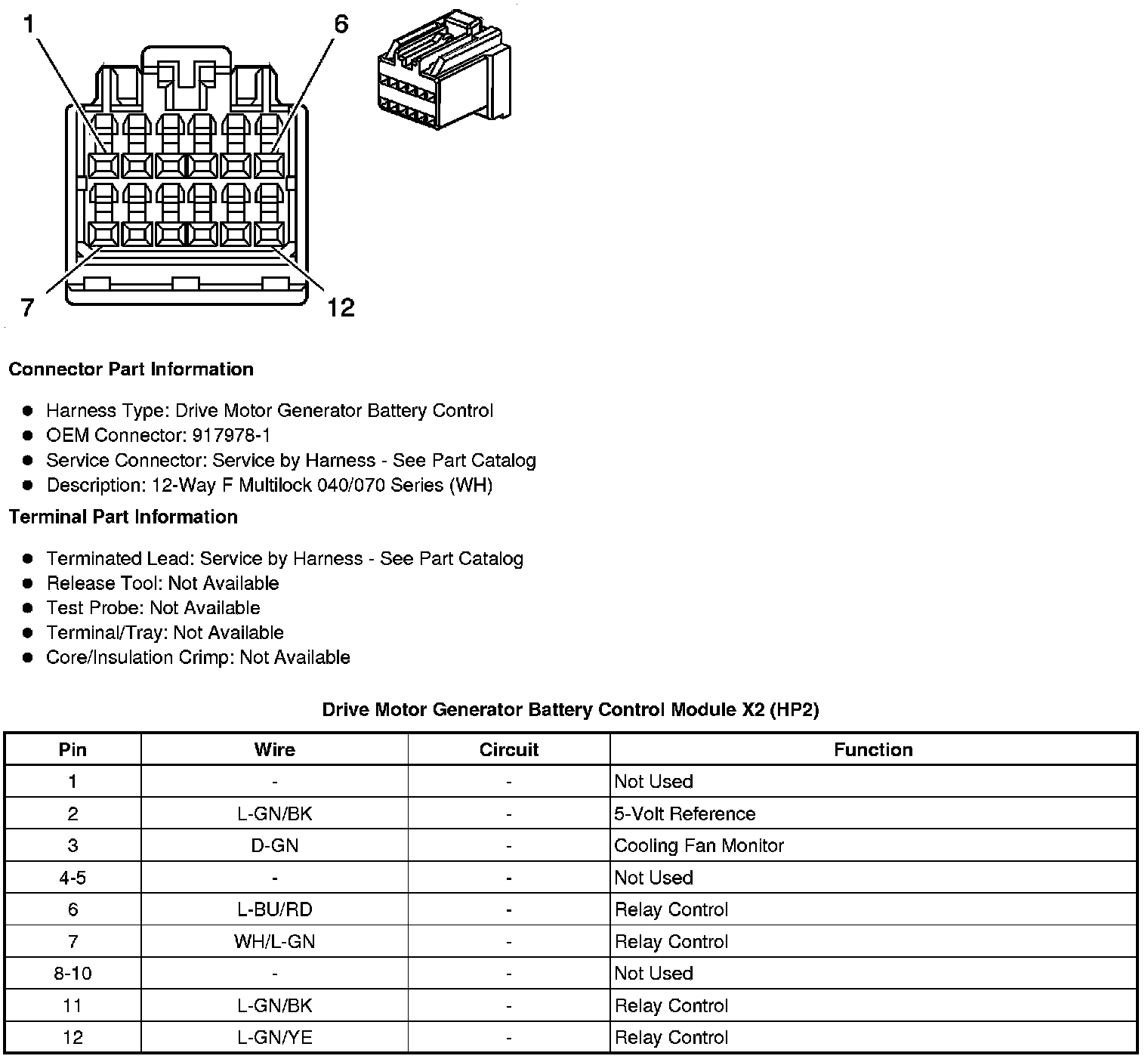

Drive Motor Generator Battery Control Module X2




Component Connector End Views

Drive Motor Generator Battery Control Module X2 (HP2)
