Accessory AC/DC Power Control Module

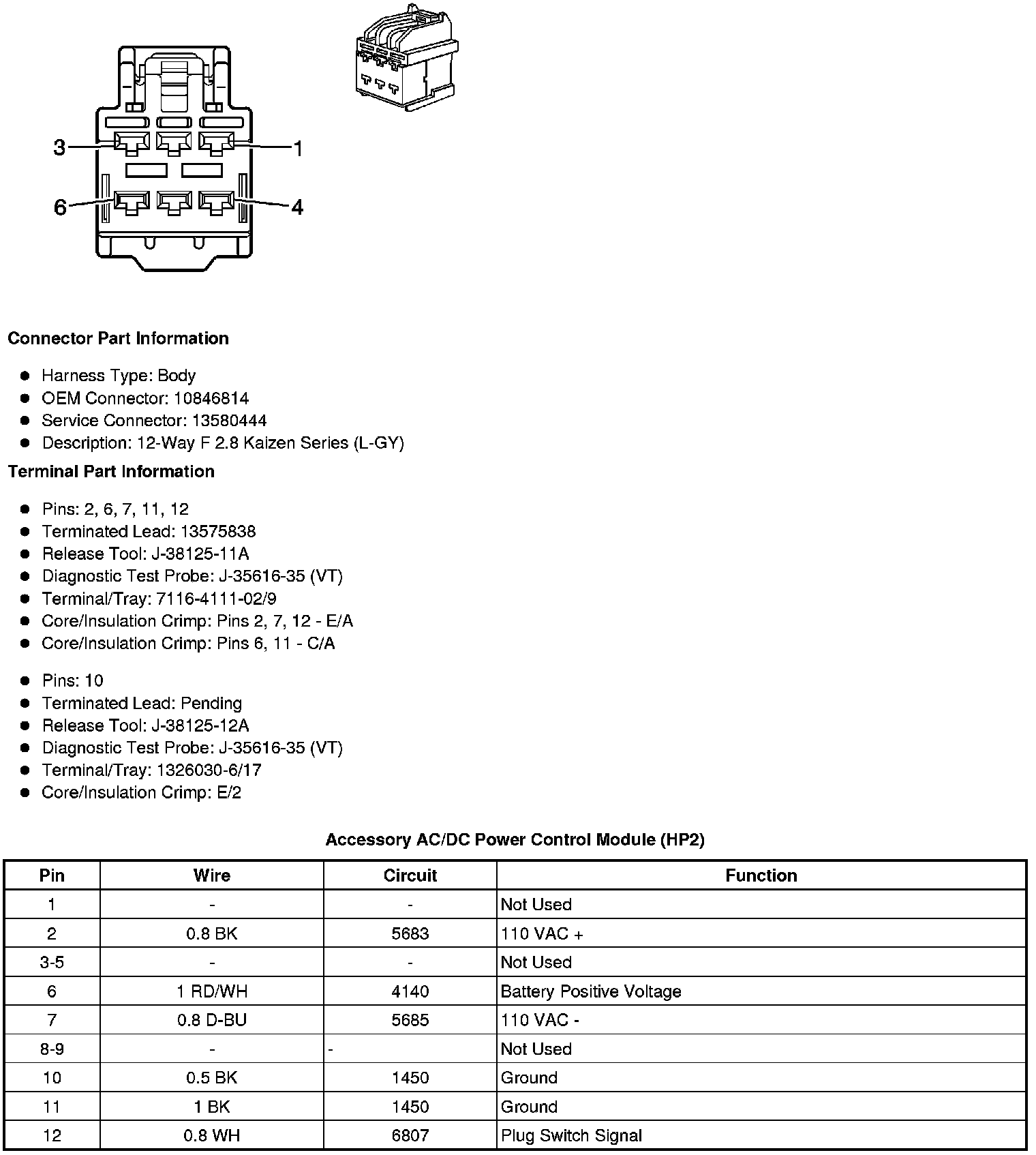

Component Connector End Views
Accessory AC/DC Power Control Module (HP2)
