Right Side of Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

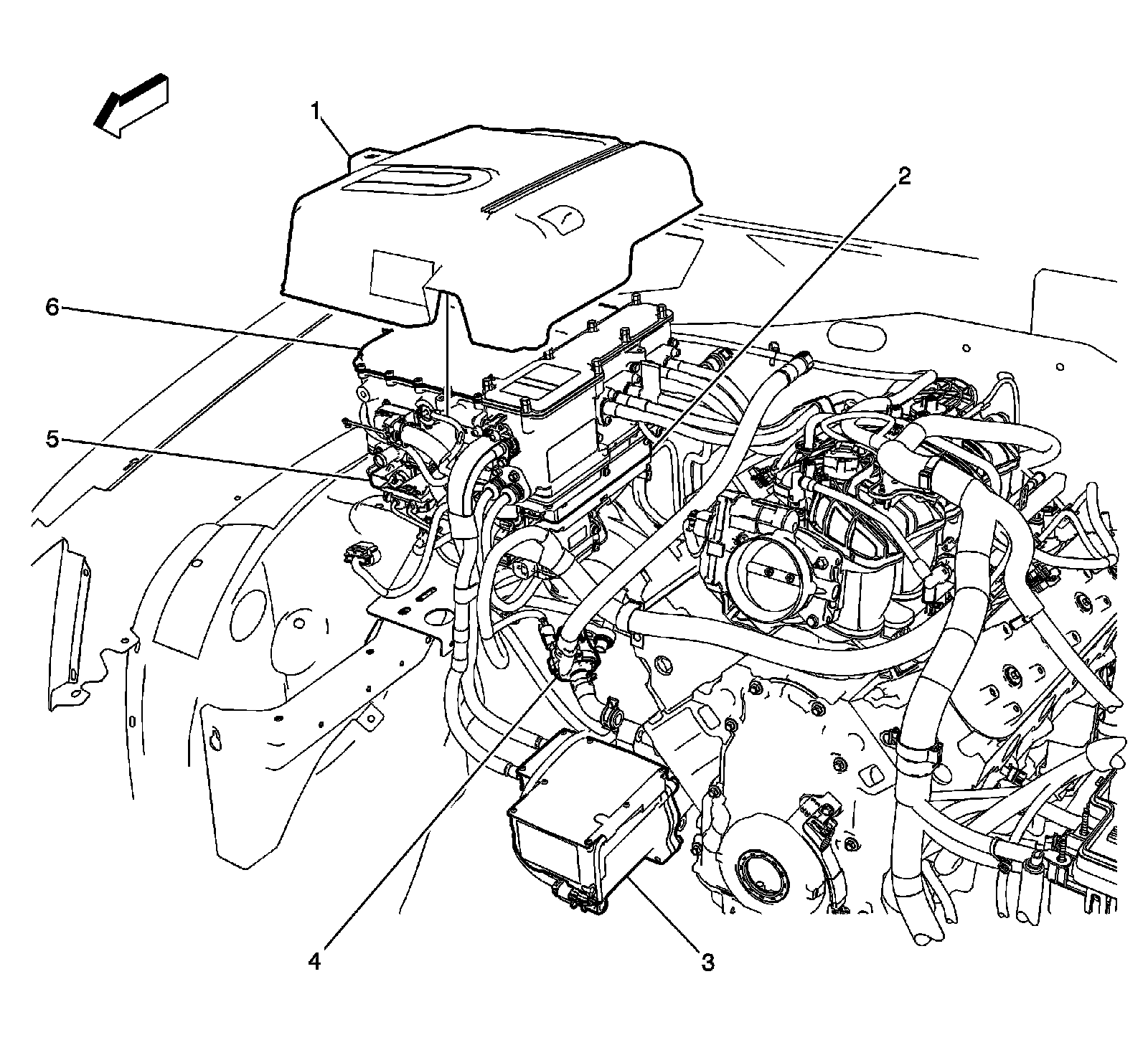

Right Side of Engine Compartment Components (HP2)




1 - Drive Motor Generator Power Inverter Module Cover
2 - Electronic Power Steering Motor Control Module
3 - A/C Compressor
4 - Heater Coolant Pump
5 - Accessory DC Power Control Module
6 - Drive Motor Generator Power Inverter Module
