Data Link Resistor 2
Passenger Compartment/Roof Component Views

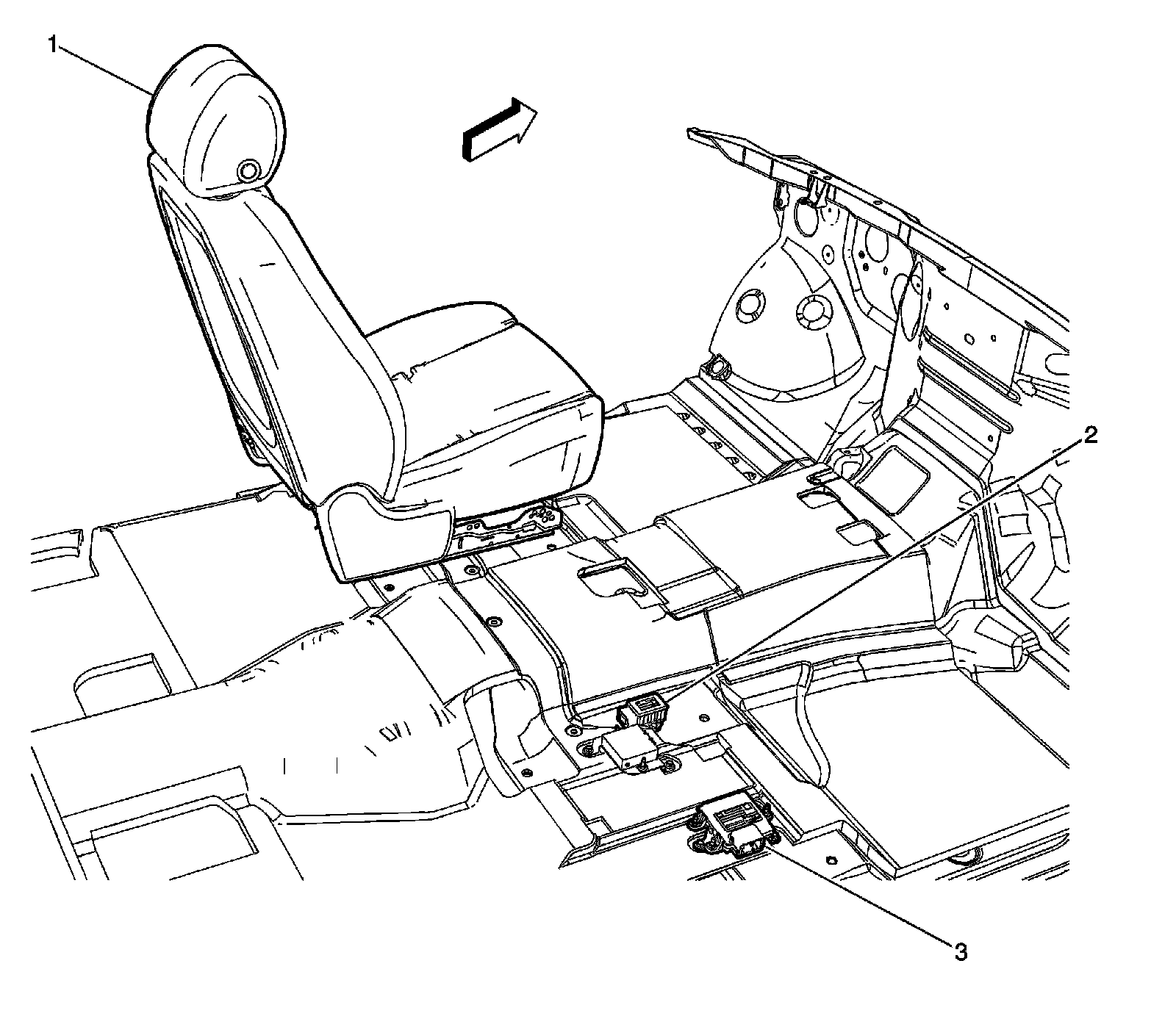

Right Front of Passenger Compartment Components
1 - Front Driver Seat
2 - Yaw and Lateral Accelerometer Sensor
3 - Rear Object Sensor Control Module (UD7)
3 - Data Link Resistor 2 (HP2)
Passenger Compartment/Roof Component Views
Right Front of Passenger Compartment Components
1 - Front Driver Seat
2 - Yaw and Lateral Accelerometer Sensor
3 - Rear Object Sensor Control Module (UD7)
3 - Data Link Resistor 2 (HP2)
