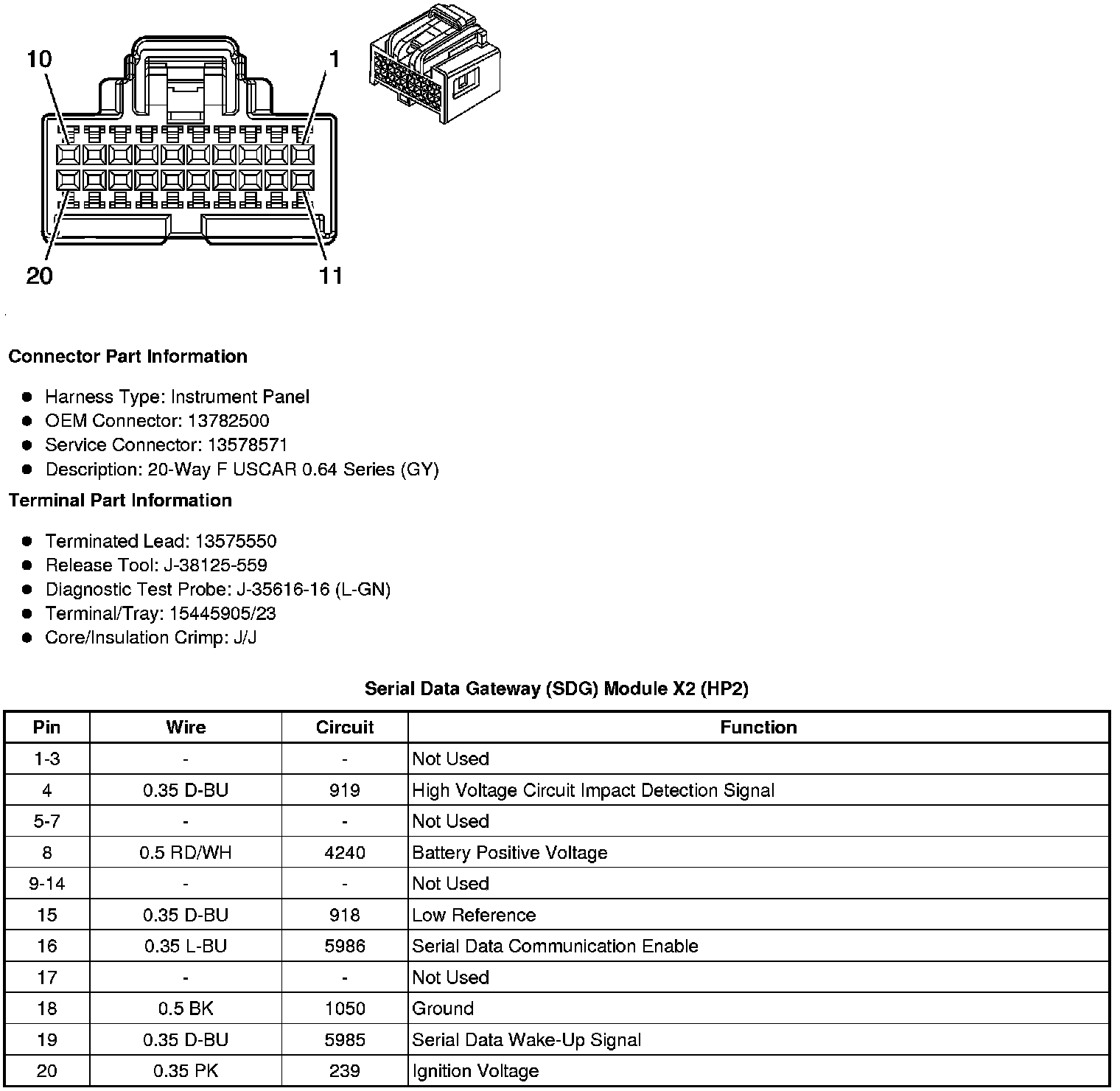

Serial Data Gateway (SDG) Module X2
Component Connector End Views
Serial Data Gateway (SDG) Module X2 (HP2)
