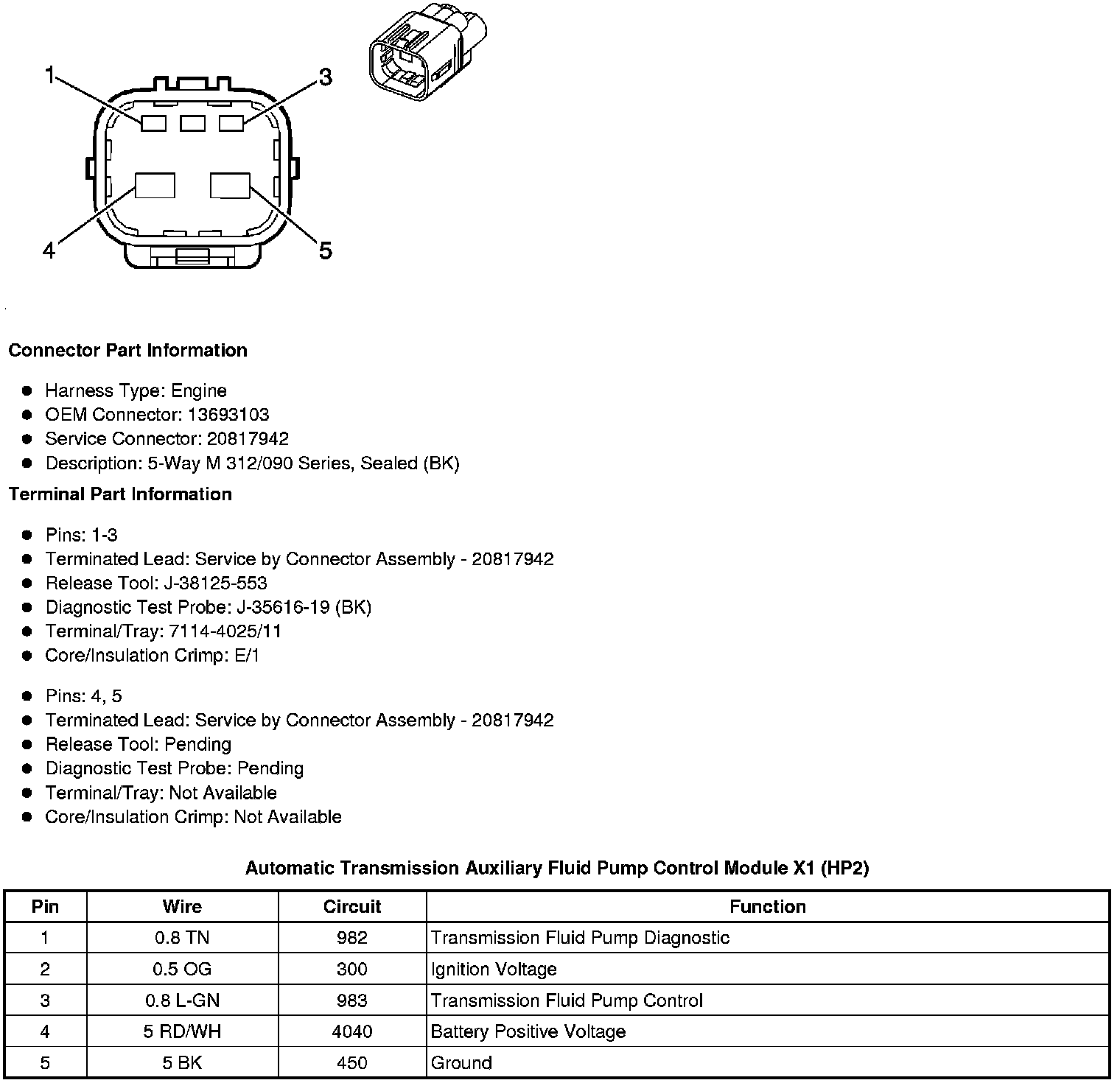

Automatic Transmission Auxiliary Fluid Pump Control Module X1




Component Connector End Views

Automatic Transmission Auxiliary Fluid Pump Control Module X1 (HP2)
