Automatic Transmission Auxiliary Fluid Pump Control Module X2

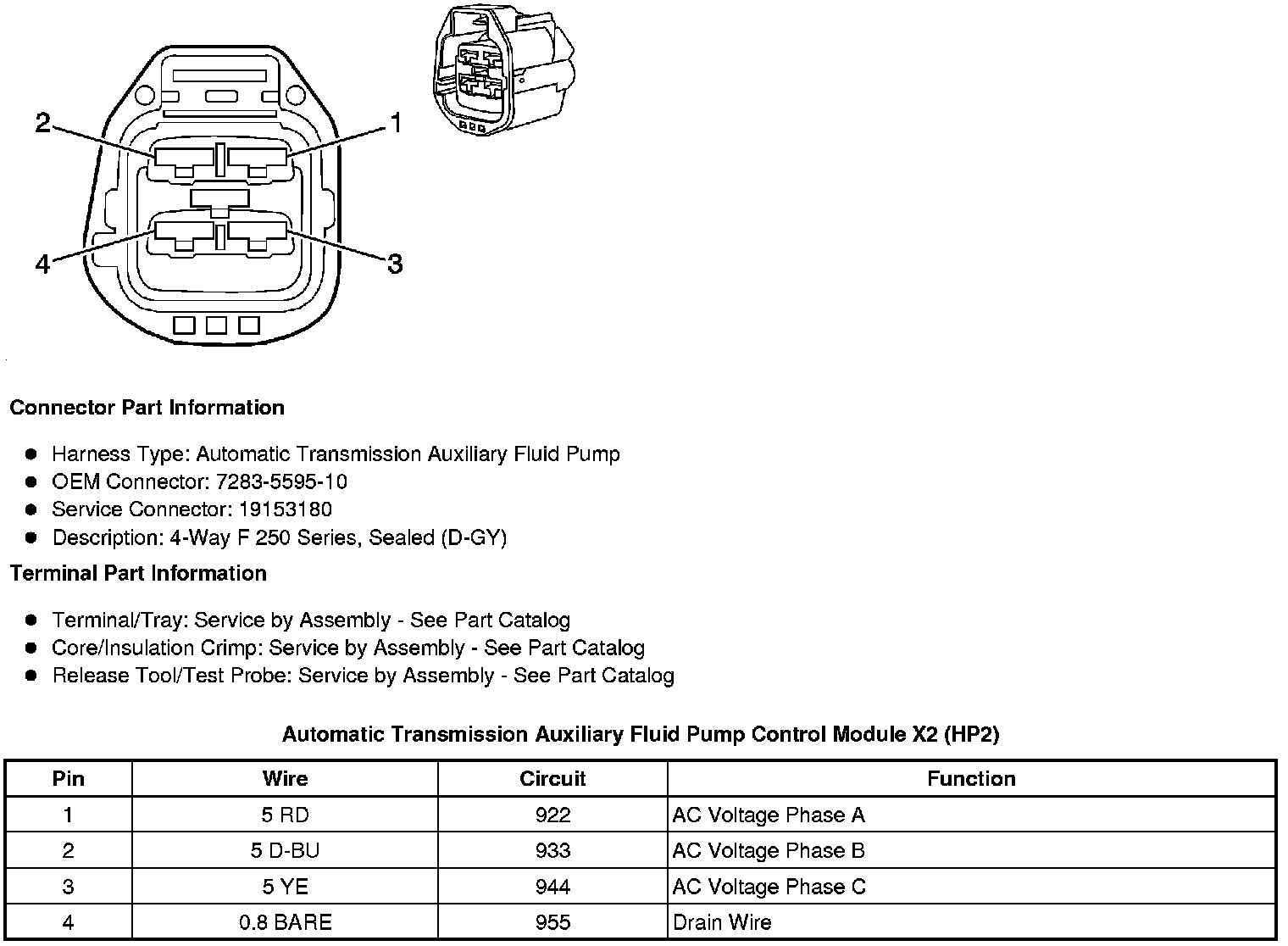

Component Connector End Views

Automatic Transmission Auxiliary Fluid Pump Control Module X2 (HP2)
