Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

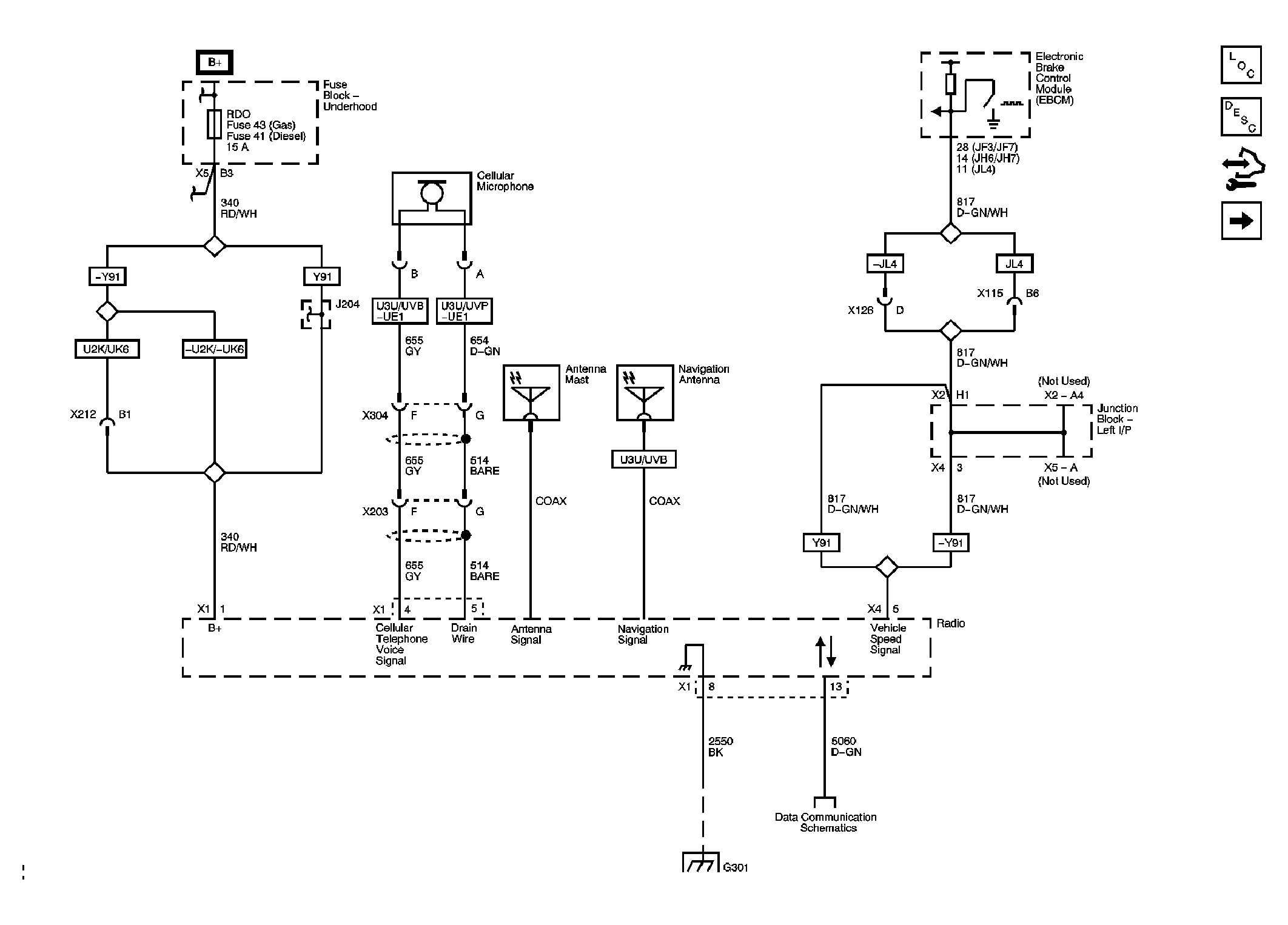

Fig 1: Radio Power, Ground and Serial Data

Courtesy of GENERAL MOTORS CORP.

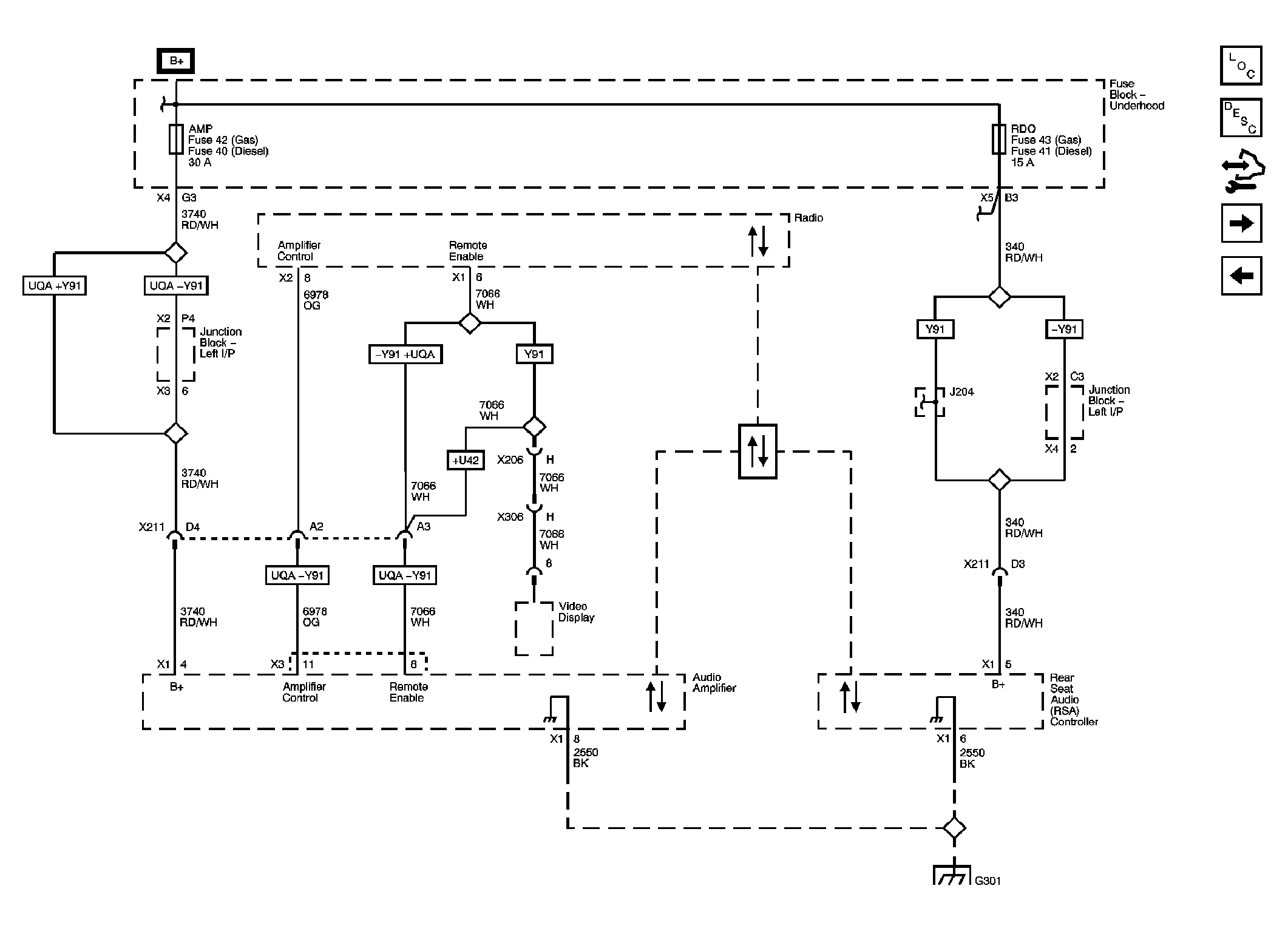

Fig 2: Amplifier (UQA) and Rear Seat Audio (UK6) Power, Ground and Serial Data

Courtesy of GENERAL MOTORS CORP.

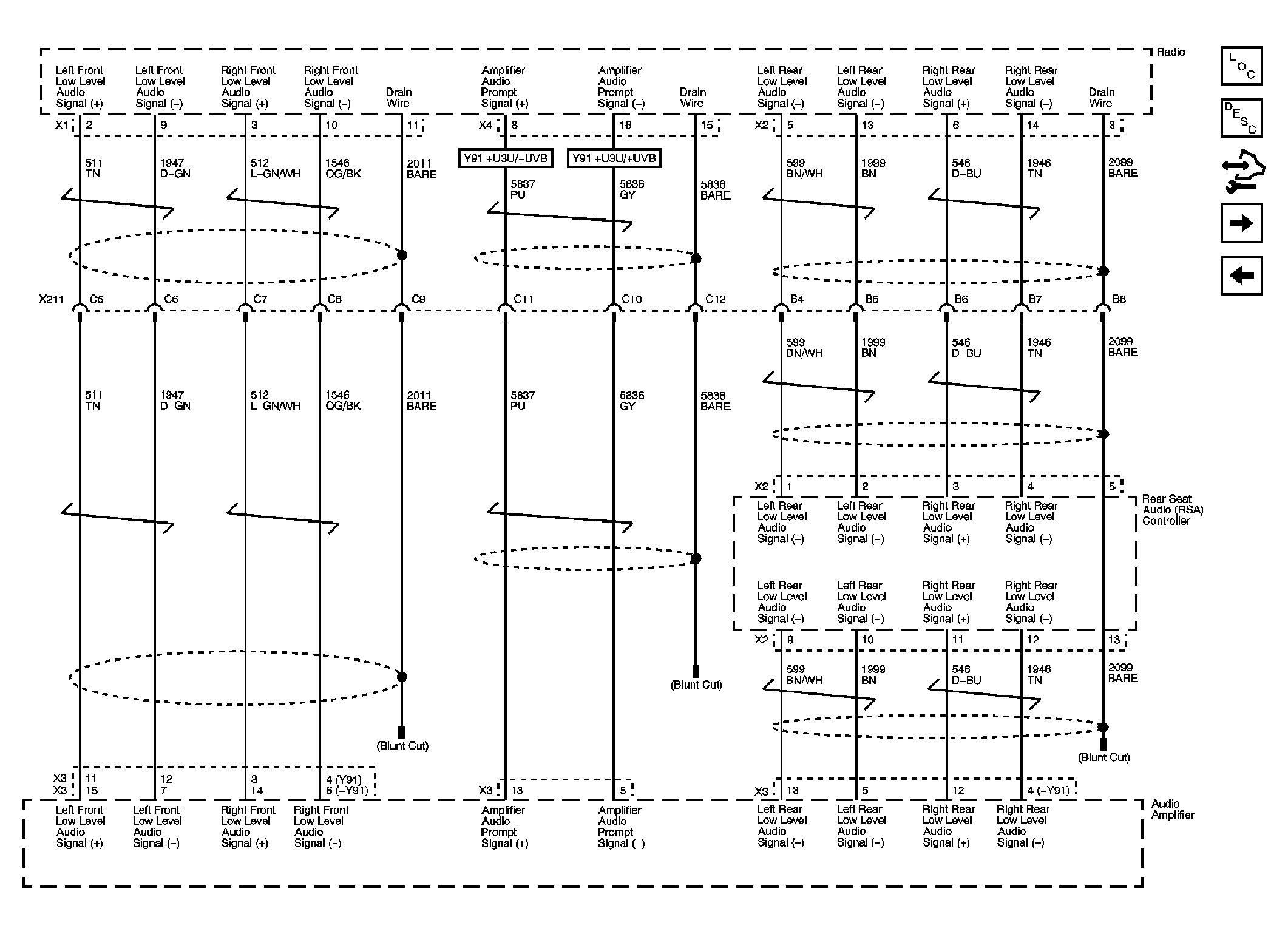

Fig 3: Amplifier Inputs (UQA)

Courtesy of GENERAL MOTORS CORP.

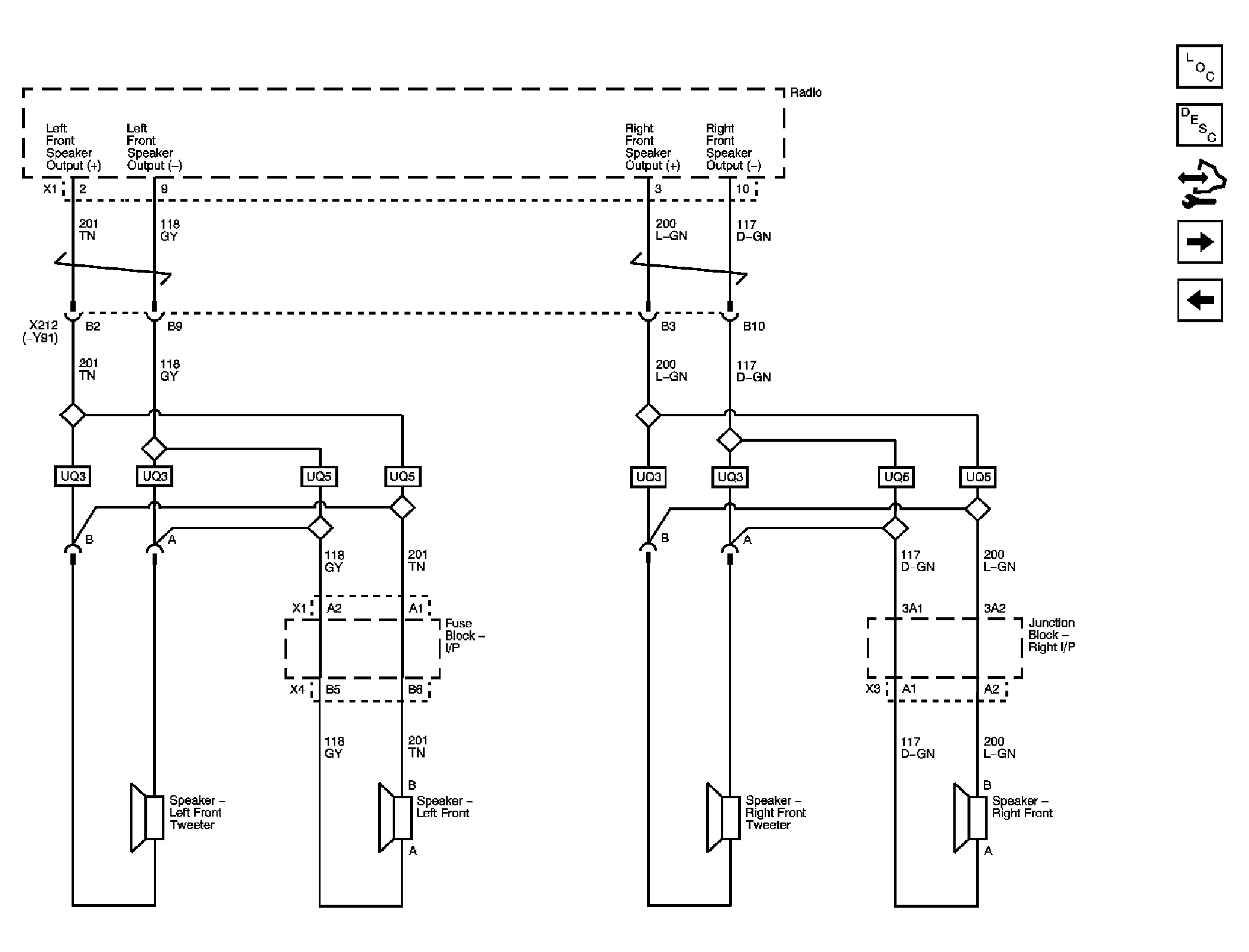

Fig 4: Front Speakers (UQ3/UQ5)

Courtesy of GENERAL MOTORS CORP.

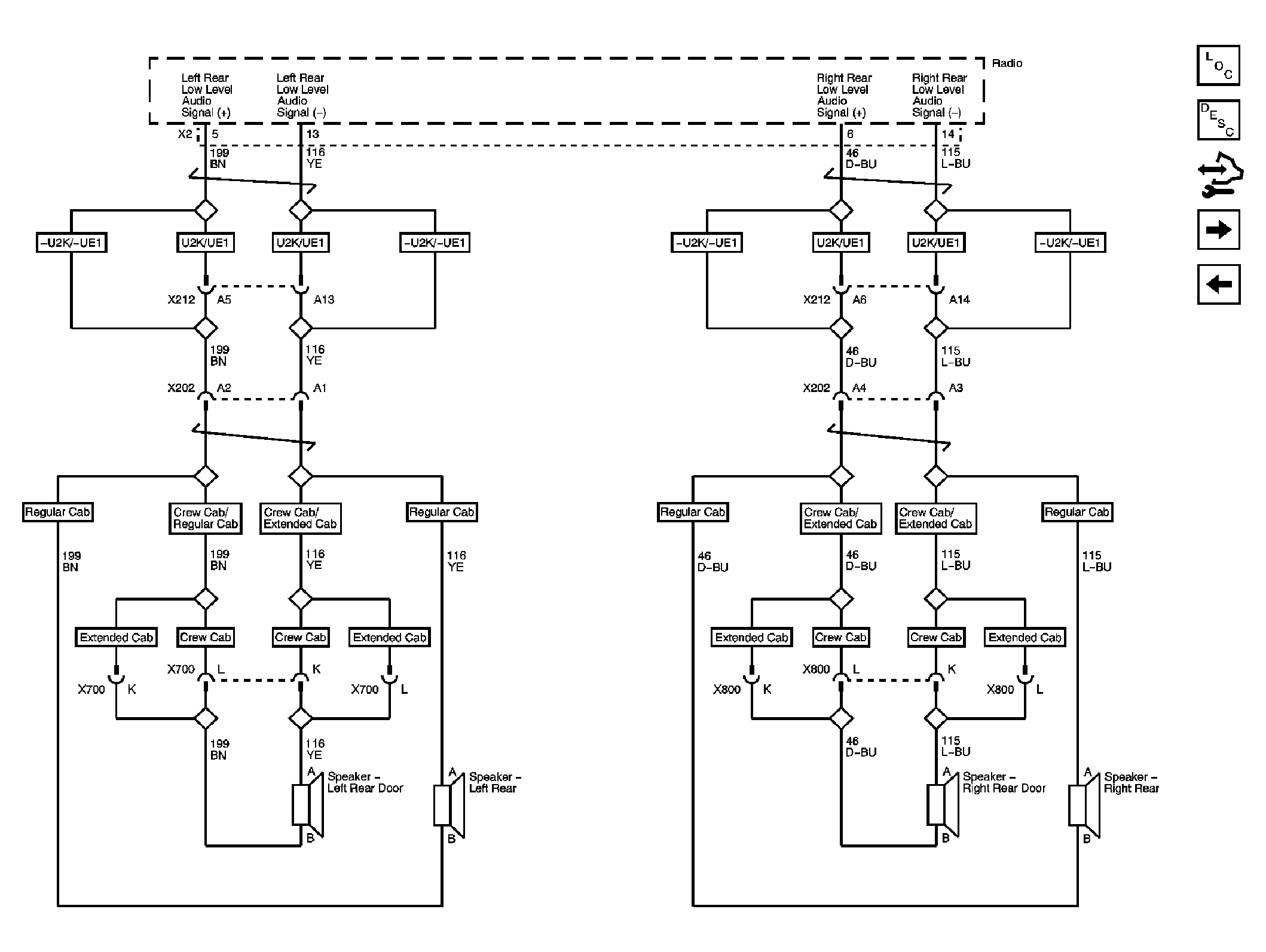

Fig 5: Rear Speakers (UQ3/UQ5)

Courtesy of GENERAL MOTORS CORP.

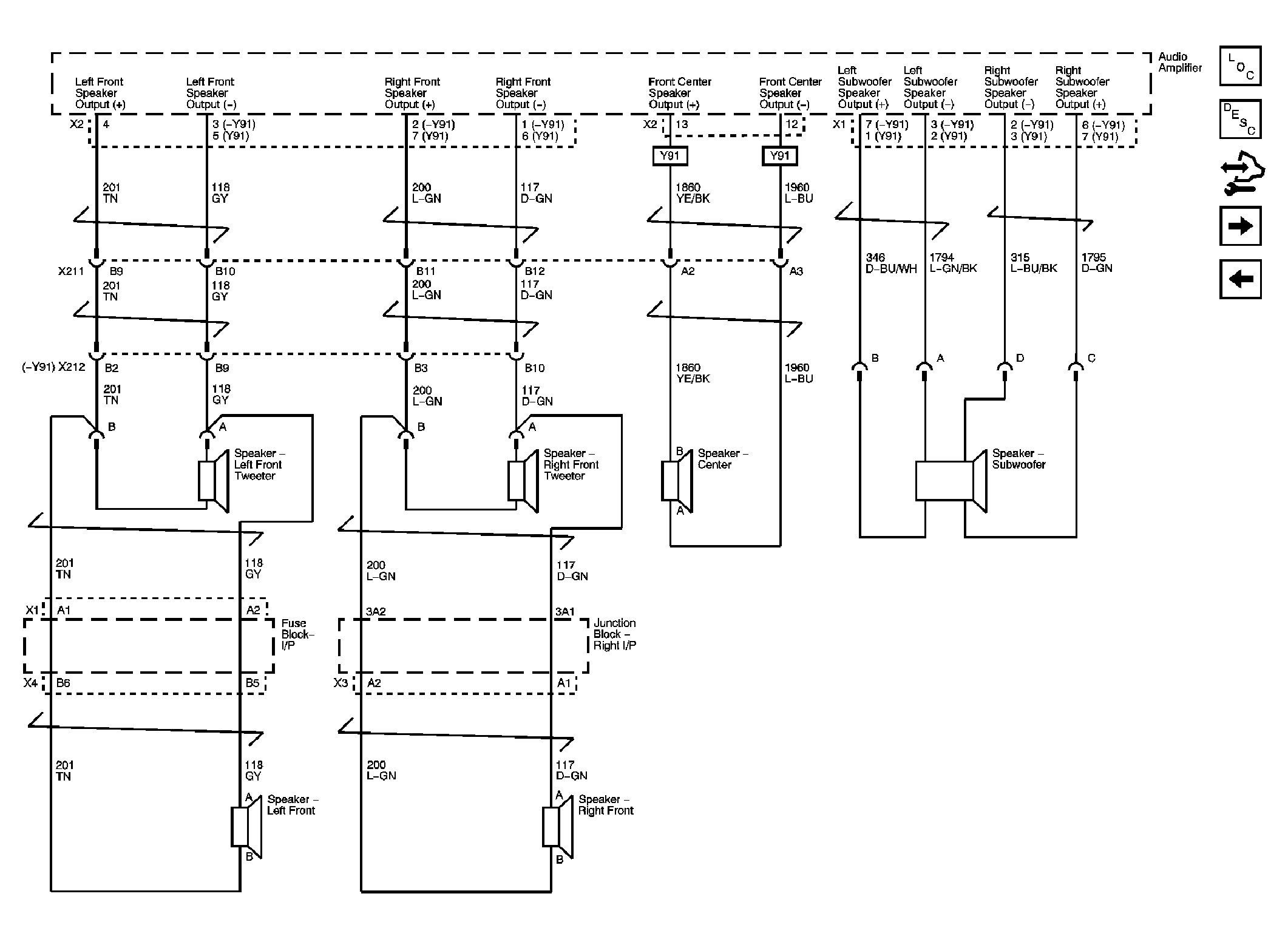

Fig 6: Front Speakers (UQA)

Courtesy of GENERAL MOTORS CORP.

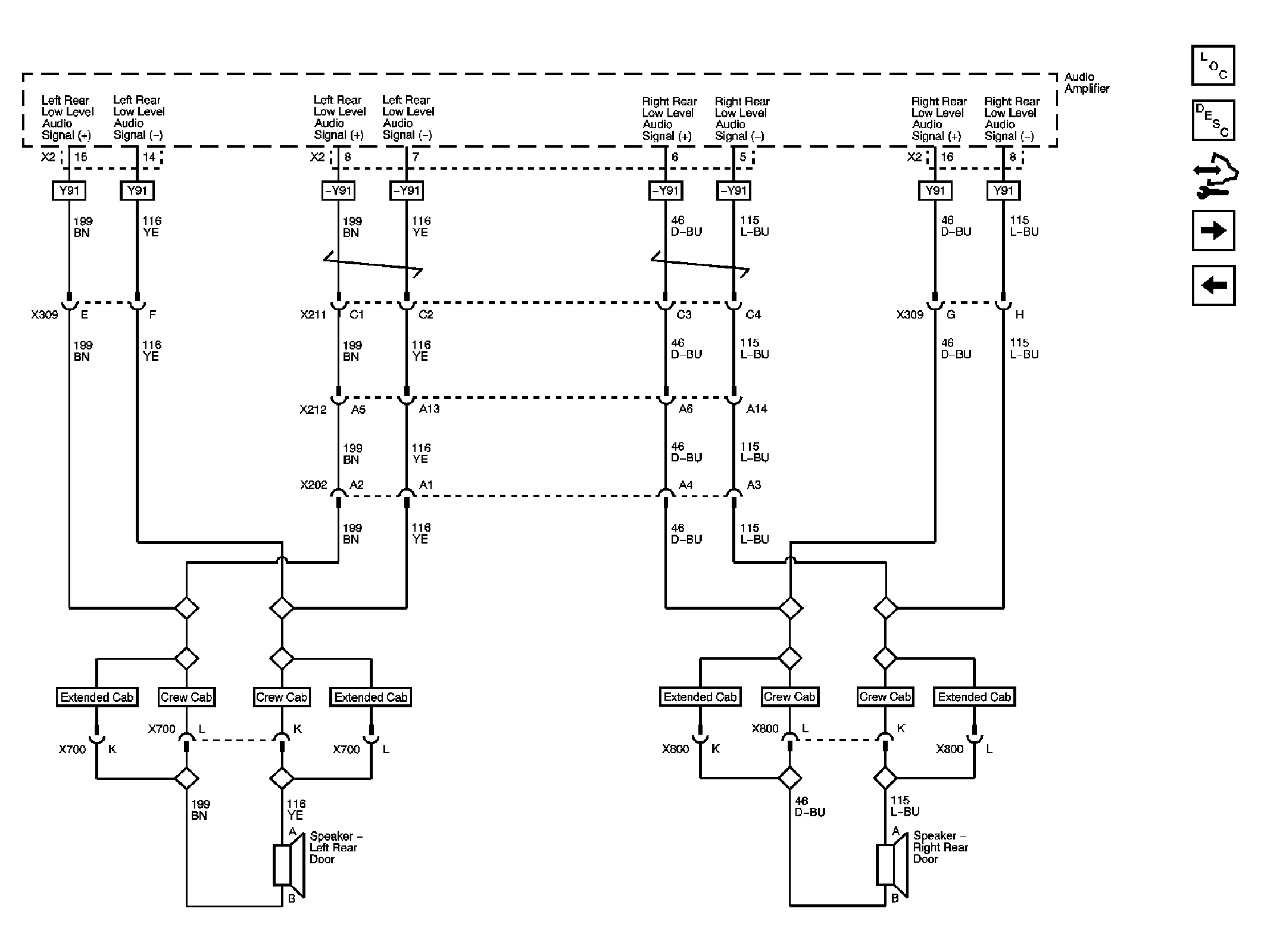

Fig 7: Rear Speakers (UQA)

Courtesy of GENERAL MOTORS CORP.

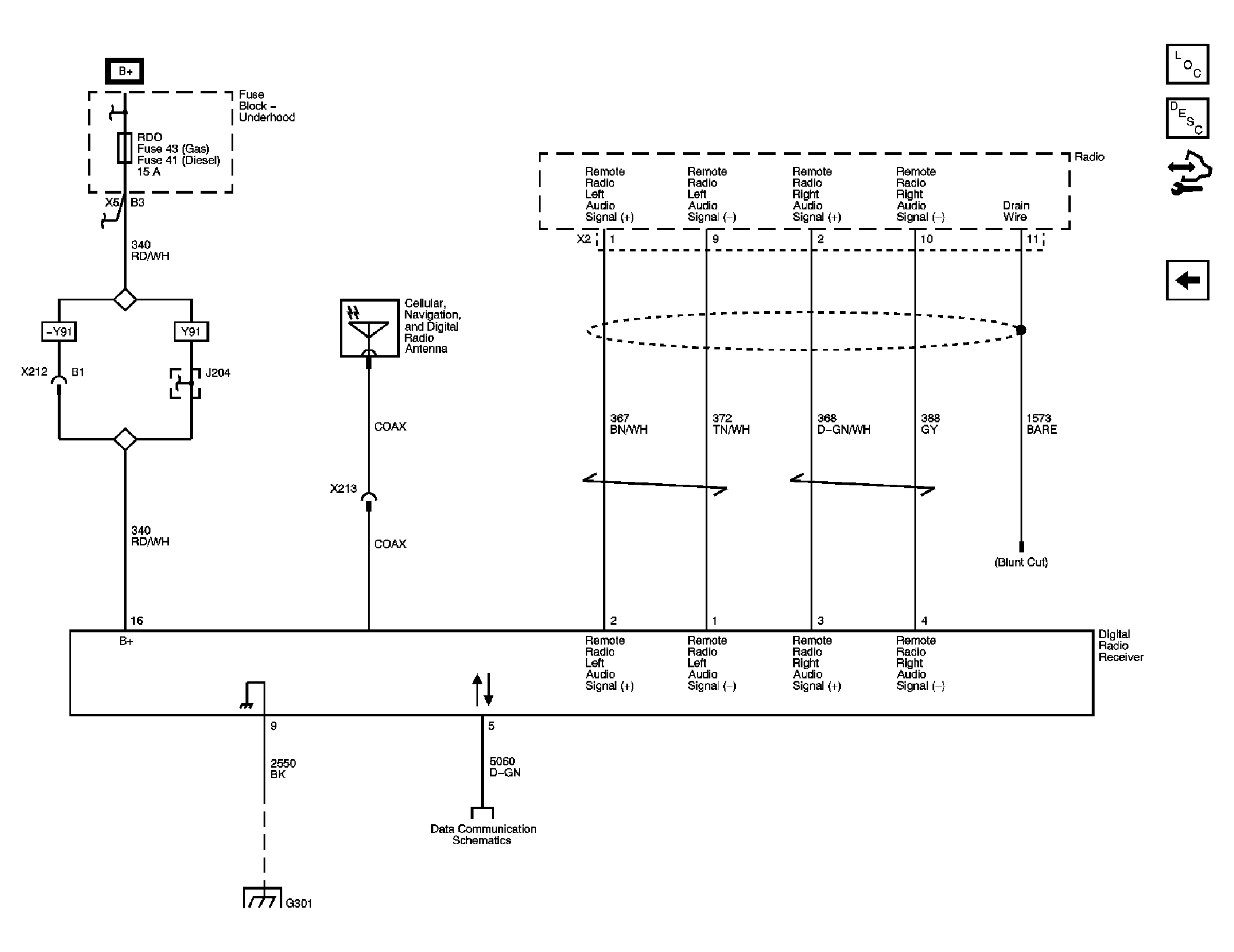

Fig 8: Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.
