Side Object Detection (UFT)

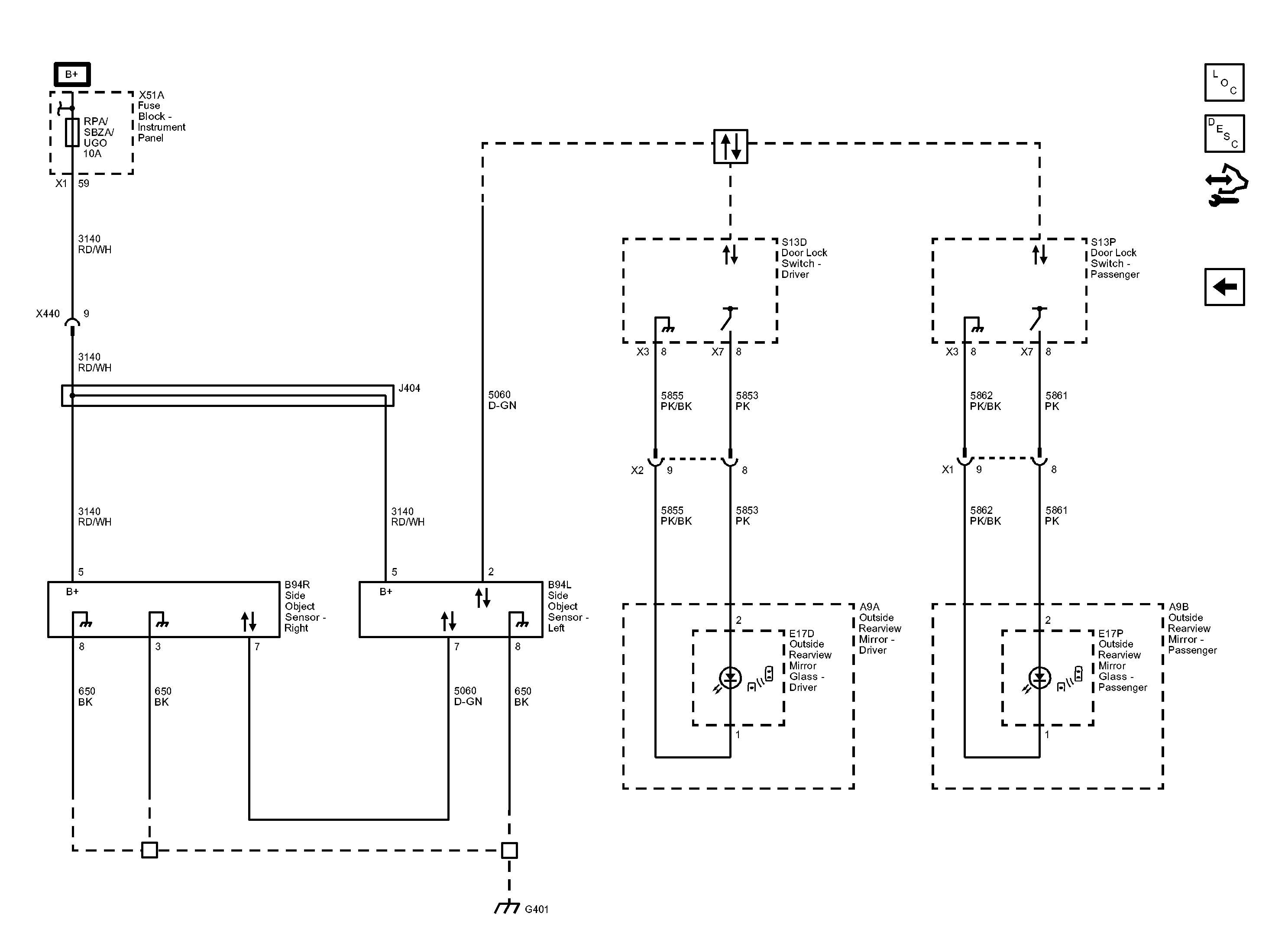

Fig 1: Side Object Detection (UFT) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
