Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

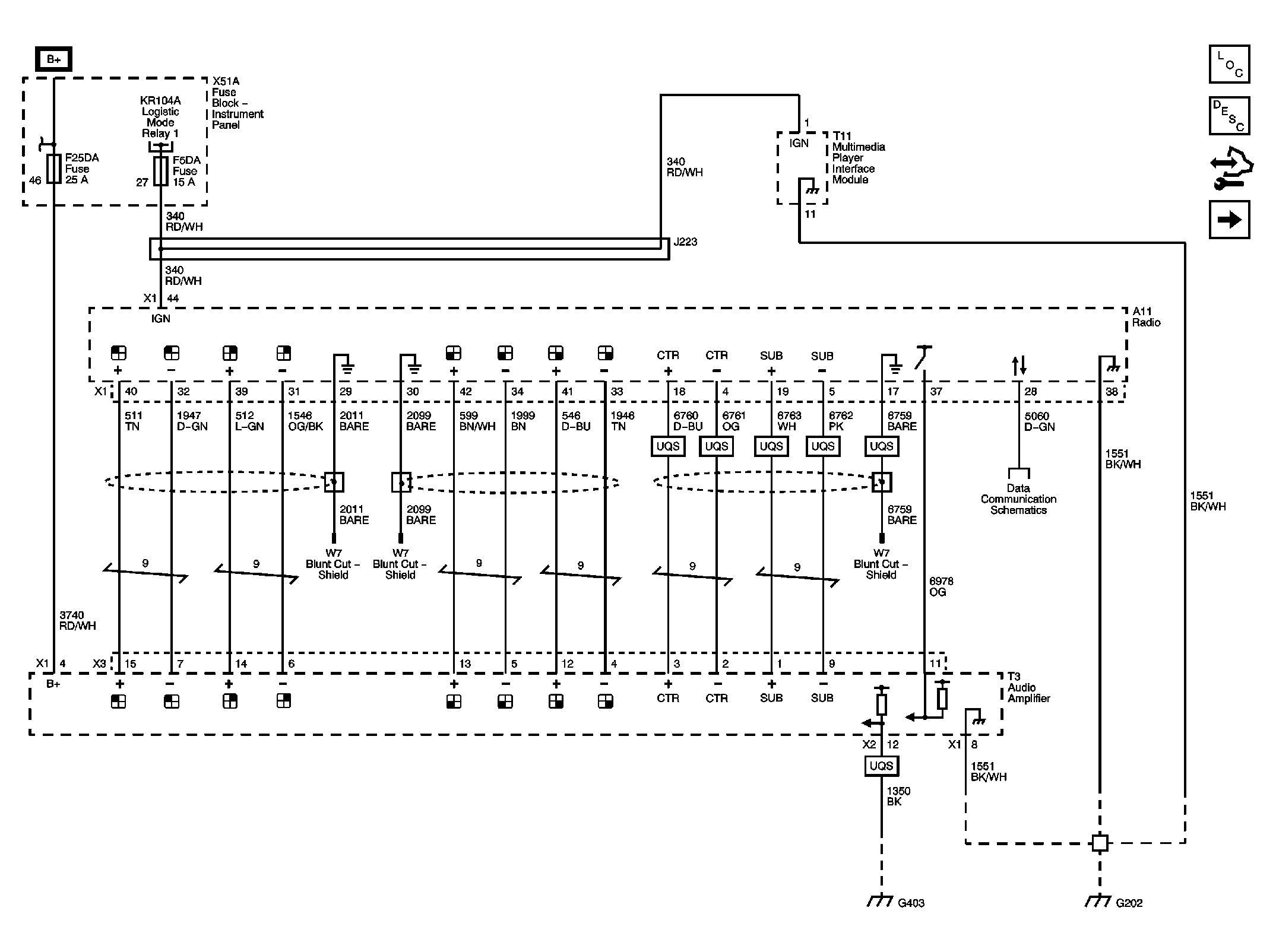

Fig 1: Radio Amplifier Power, Ground & Communication Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

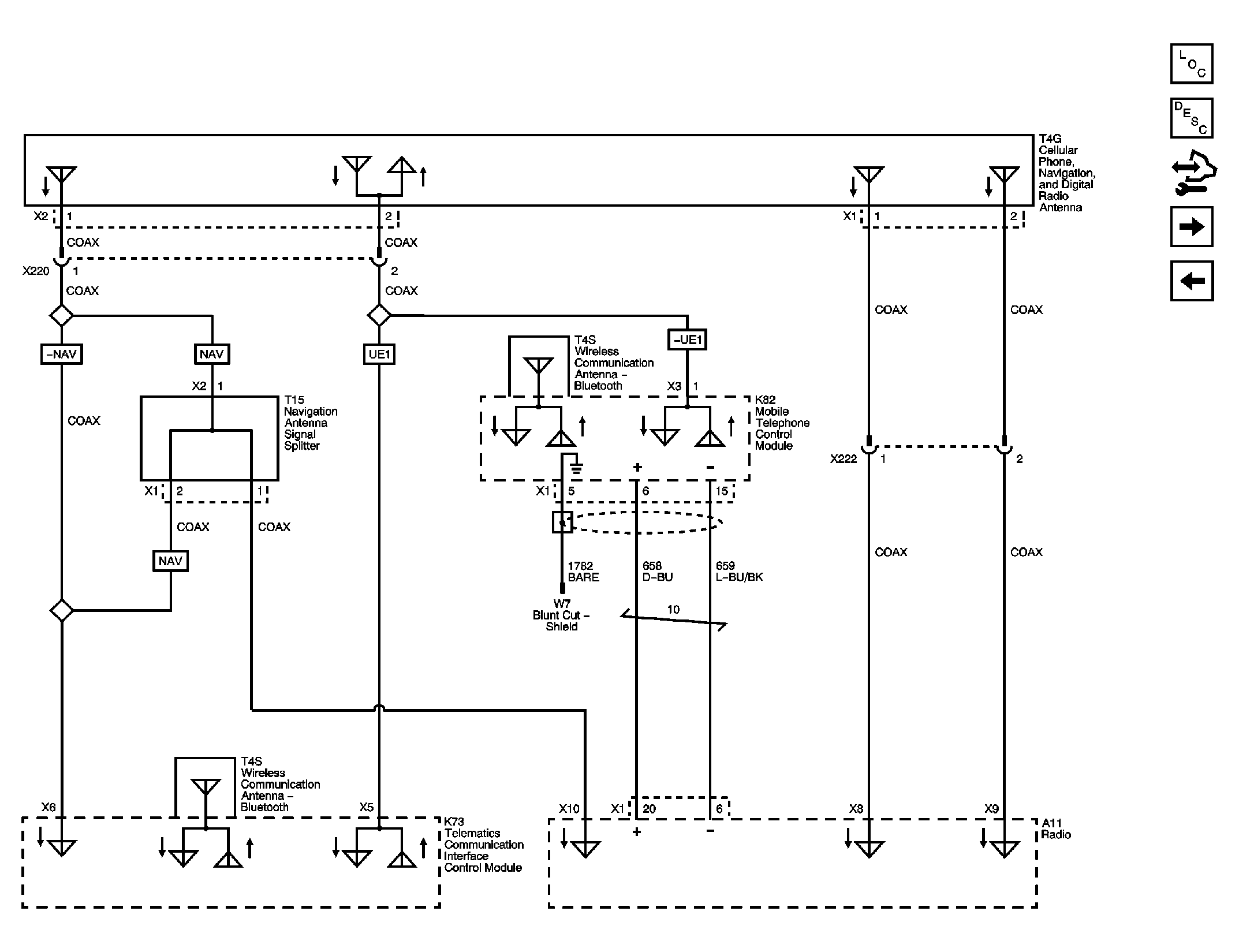

Fig 2: Radio Antenna Signals Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

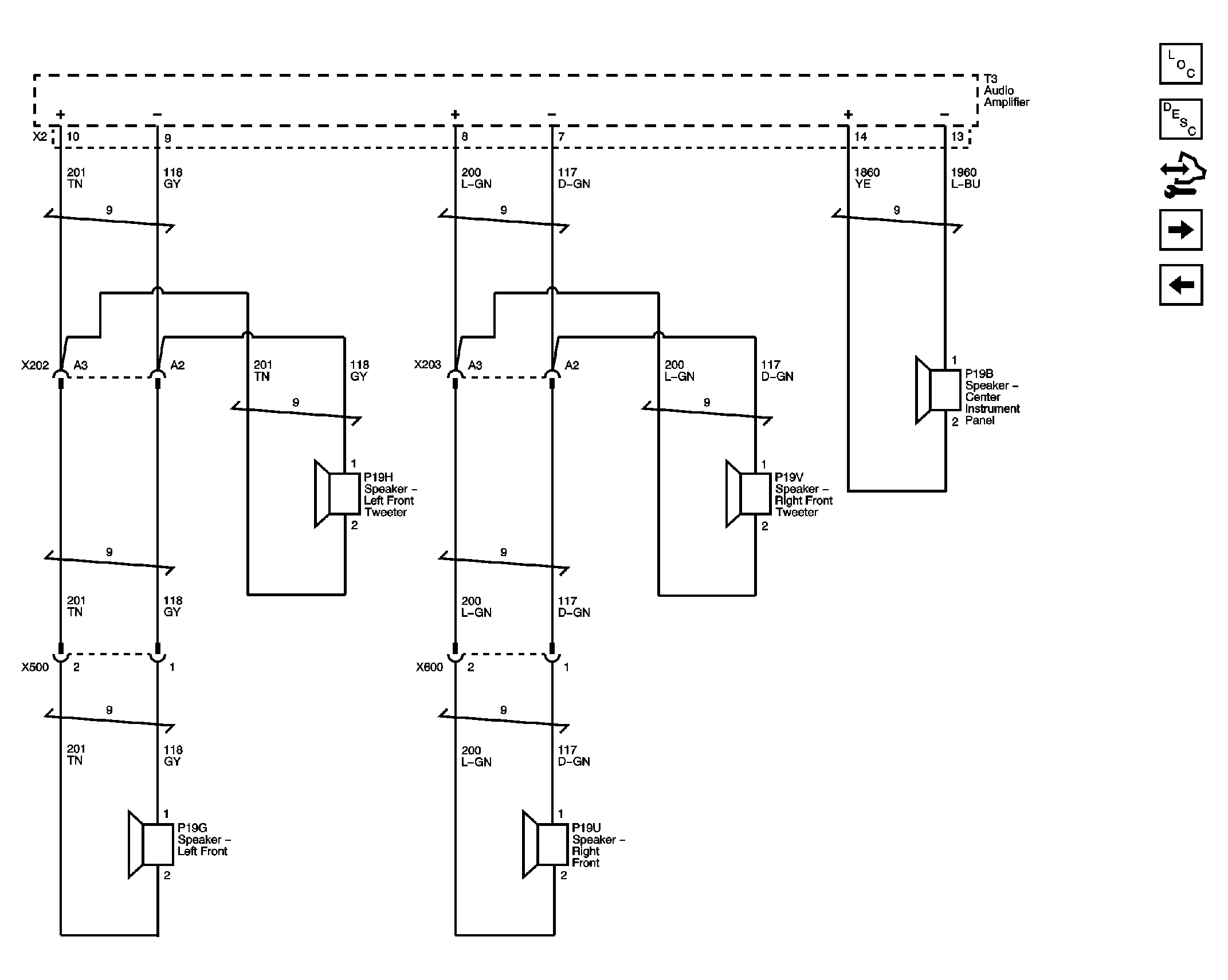

Fig 3: Front Speakers Circuit Schematic (UQA/UQS)

Courtesy of GENERAL MOTORS CORP.

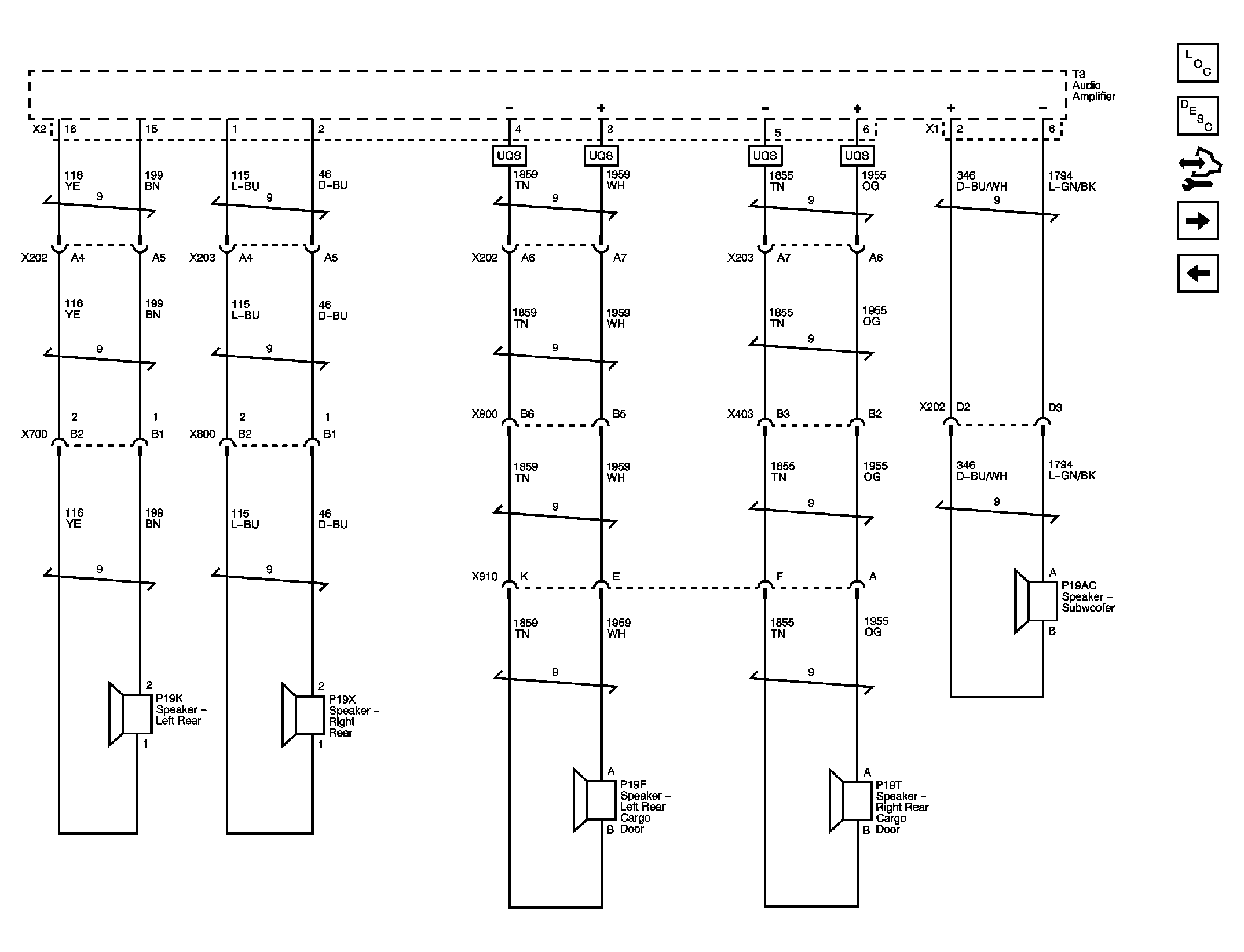

Fig 4: Rear Speakers Circuit Schematic (UQA/UQS)

Courtesy of GENERAL MOTORS CORP.

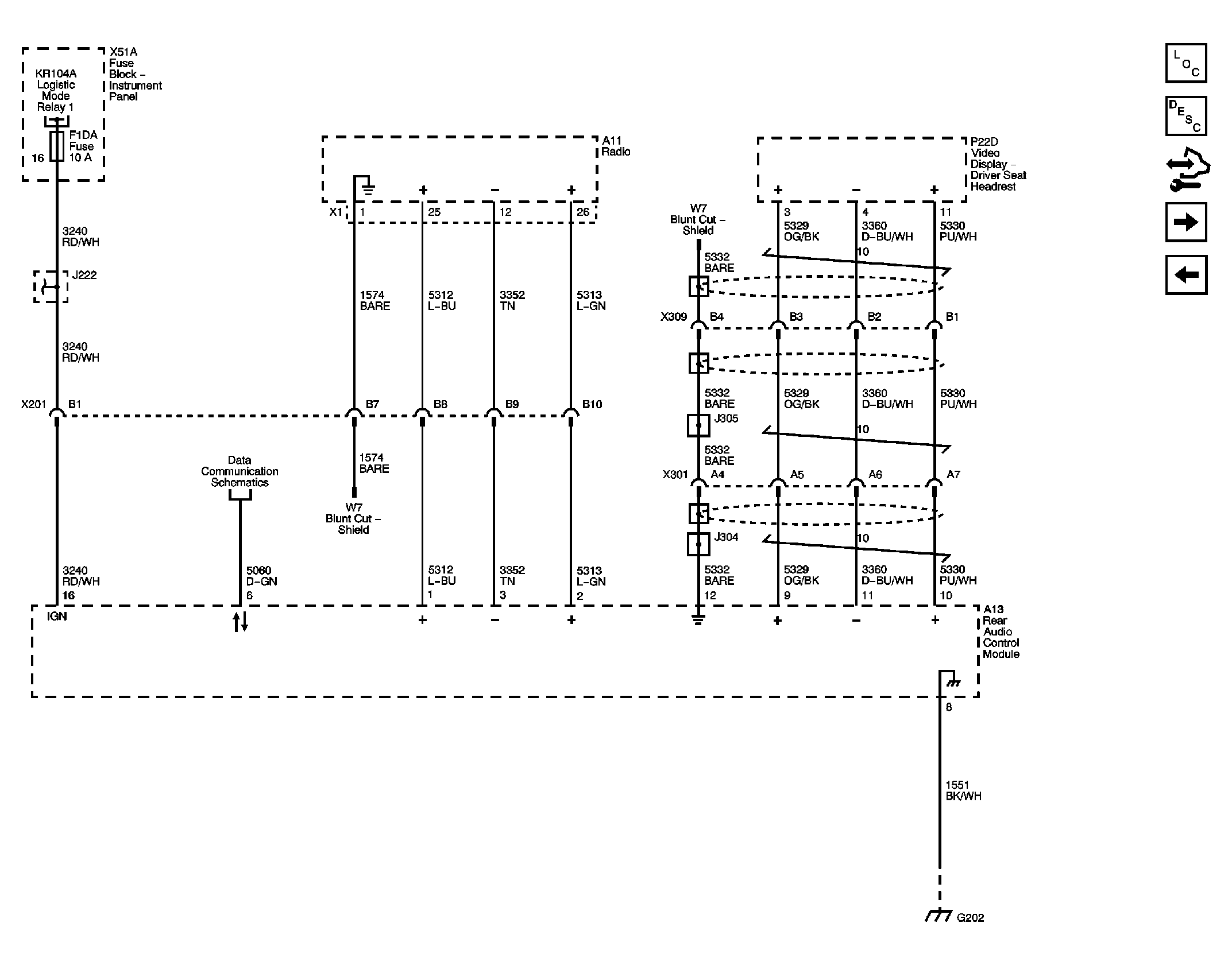

Fig 5: Rear Seat Audio Controls Circuit Schematic (ULD)

Courtesy of GENERAL MOTORS CORP.

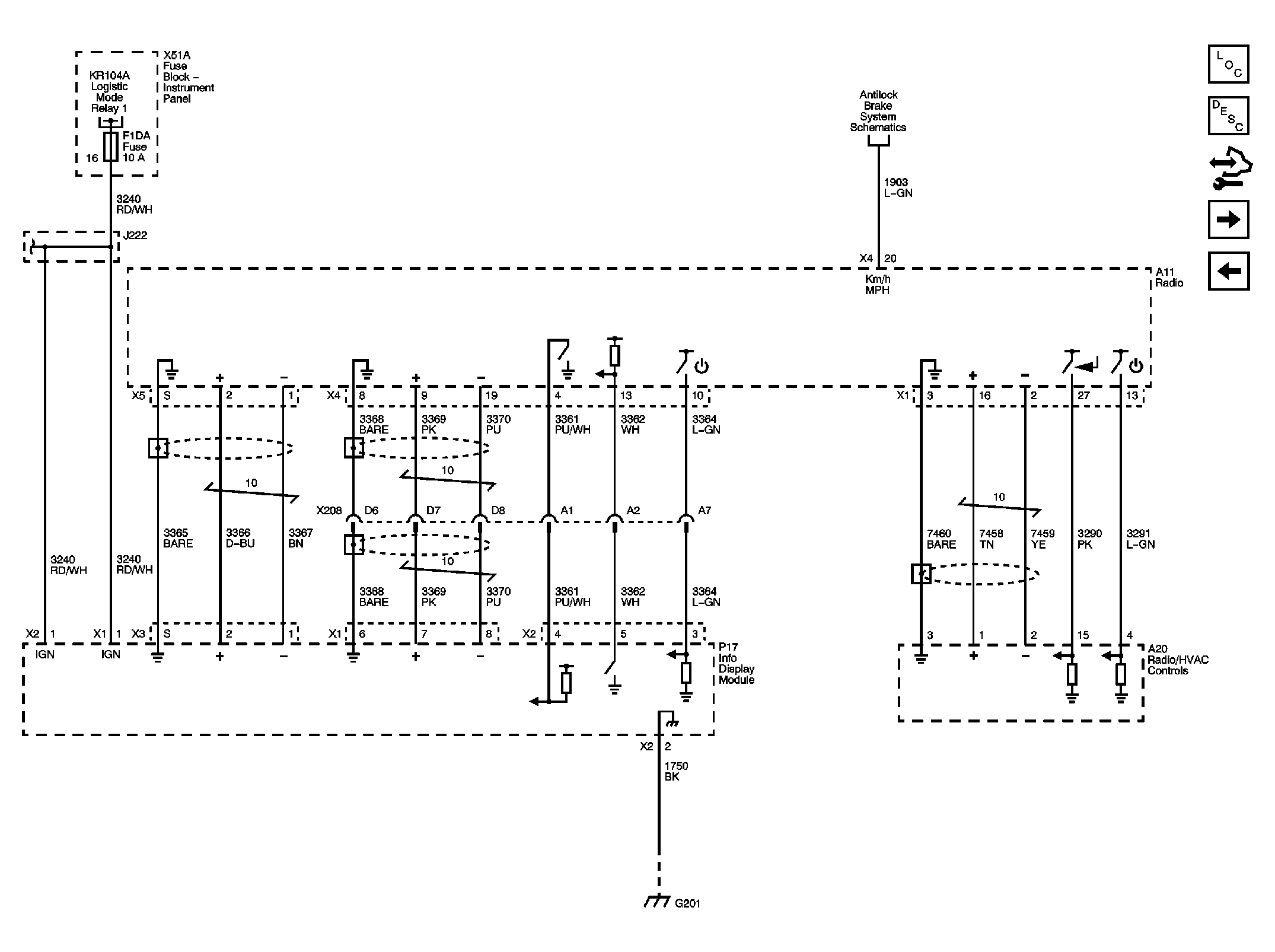

Fig 6: Radio Display With Navigation Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

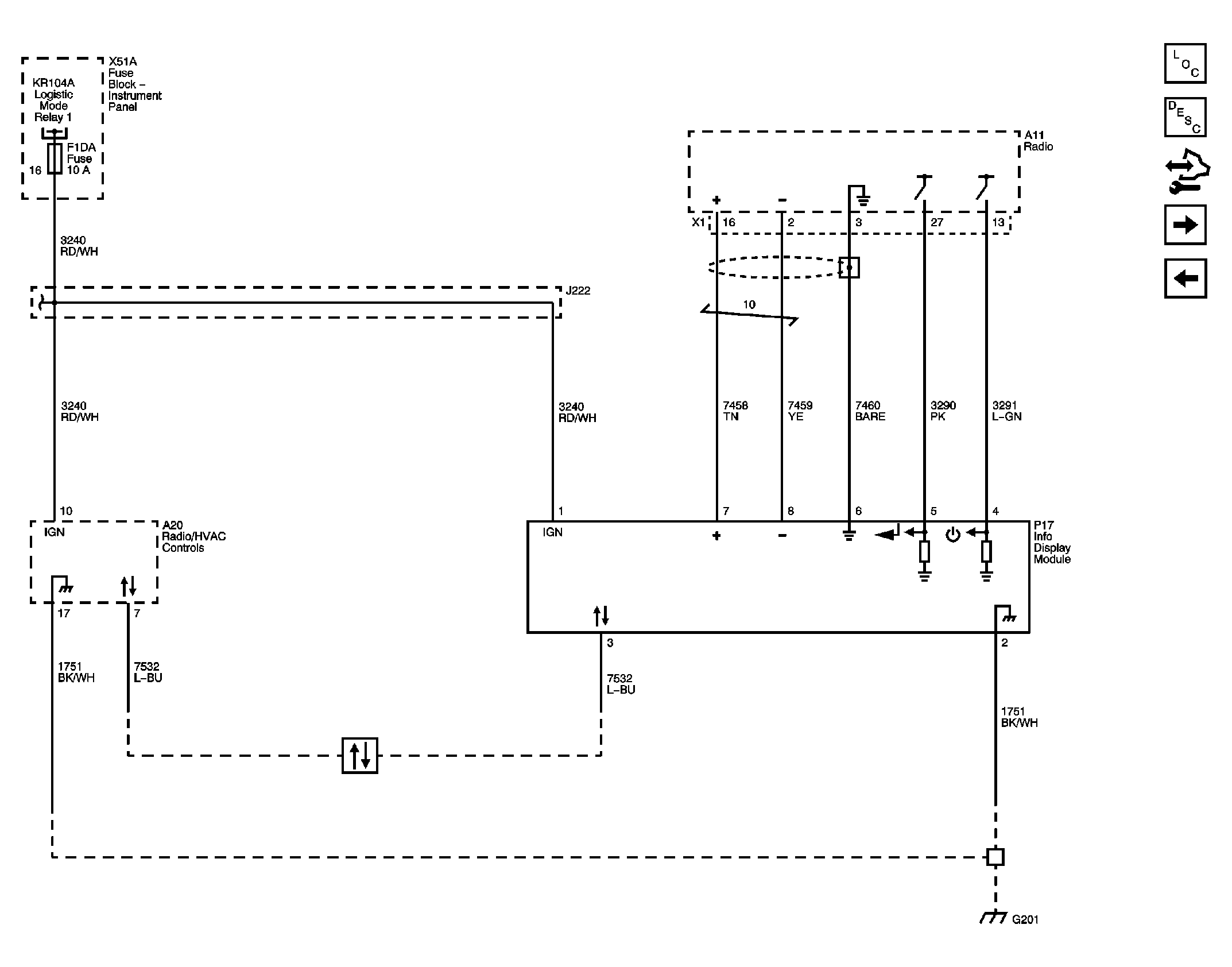

Fig 7: Radio Display Without Navigation Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Remote Device Enable Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Audio Inputs without Multimedia Player Interface Module Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

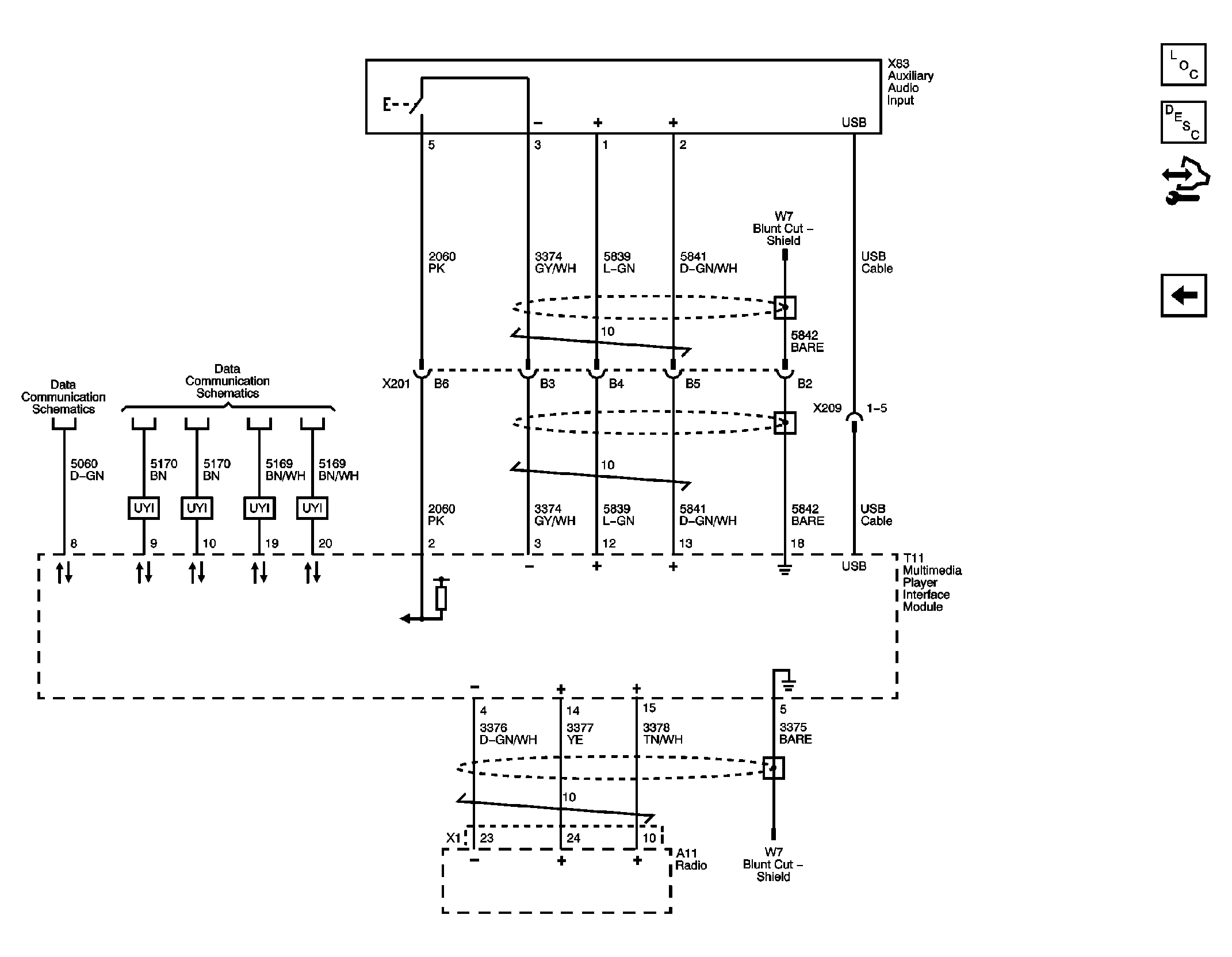

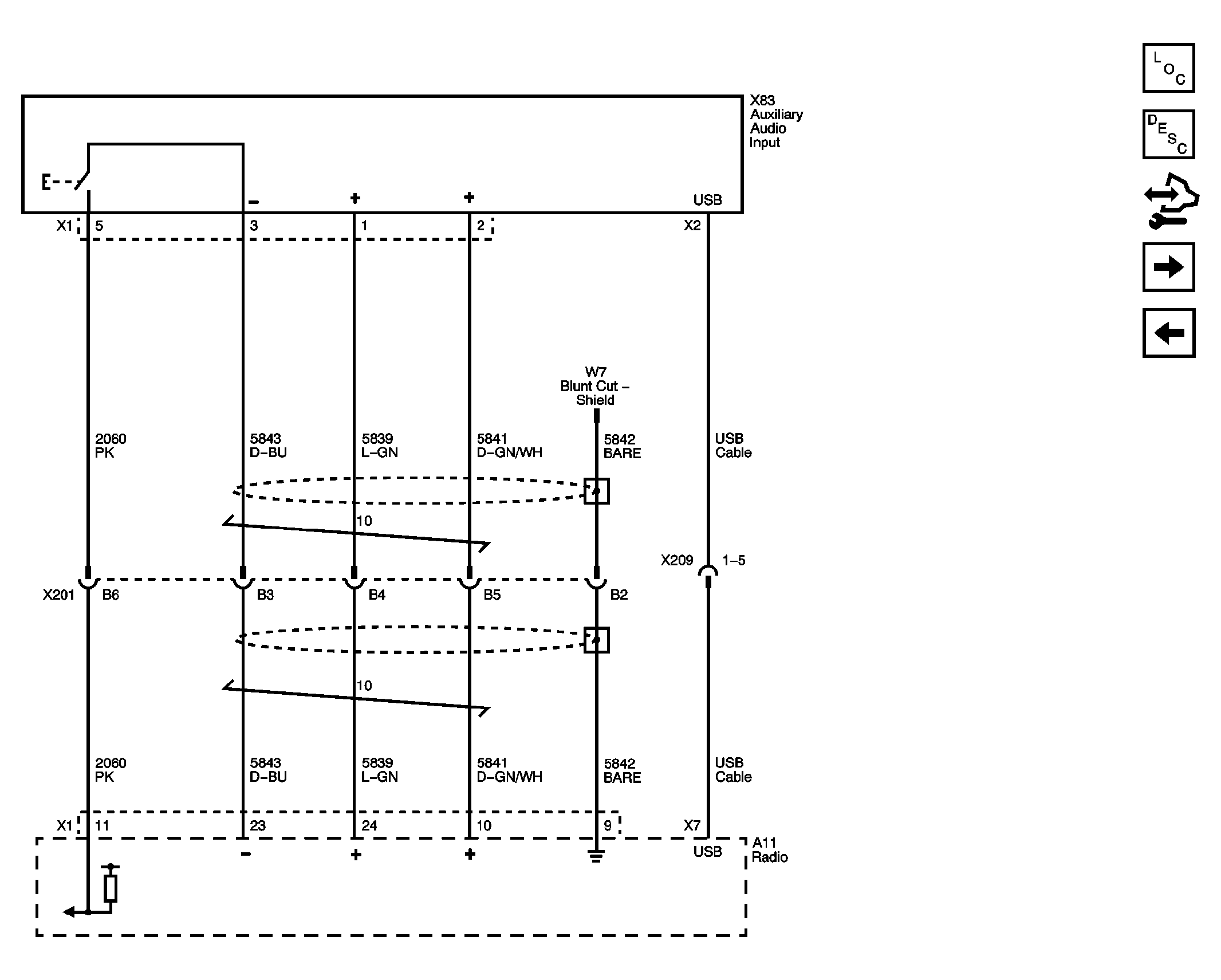

Fig 10: Audio Inputs with Multimedia Player Interface Module Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
