Component Locations

Passenger Compartment/Roof Component Views

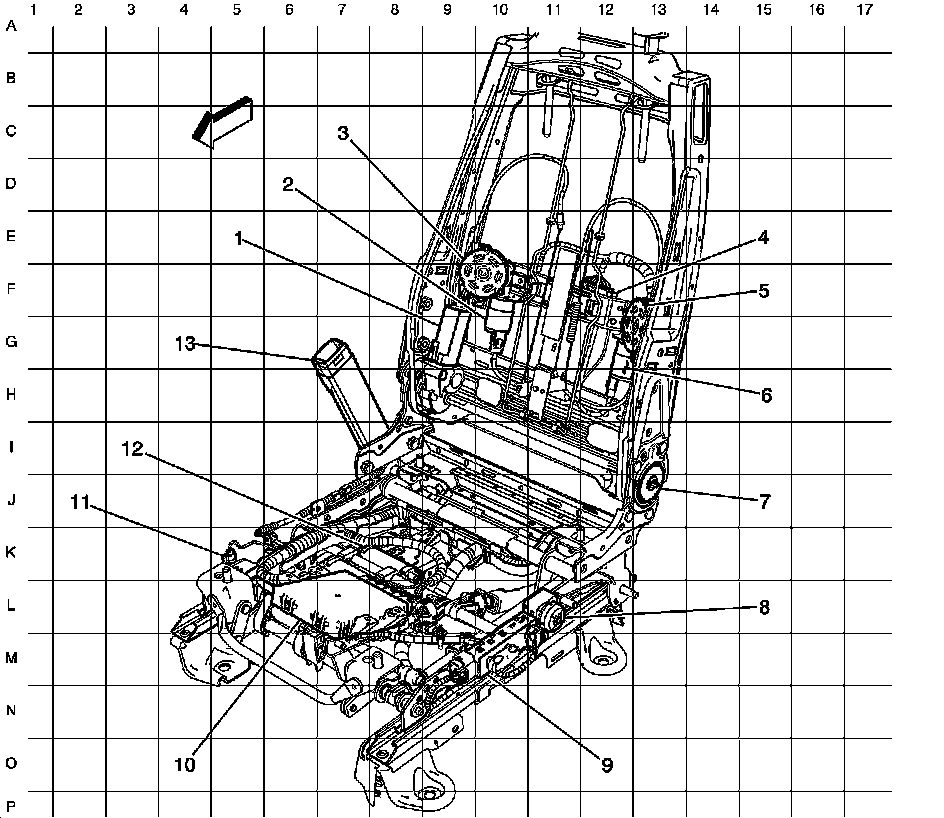

Driver Seat Components - 1 of 2





1 - Seat Recline Motor - Driver (AN3)

2 - Seat Lumbar Vertical Motor Position Sensor - Driver (AN3)

3 - Seat Lumbar Vertical Motor - Driver (AN3)

4 - X324 (AN3)

5 - Seat Lumbar Horizontal Motor - Driver (AN3)

6 - Seat Lumbar Horizontal Motor Position Sensor - Driver (AN3)

7 - Seat Recline Position Sensor - Driver (AN3)

8 - Seat Lumbar Switch - Driver (AN3)

9 - Seat Adjuster Switch - Driver (AG1)

10 - Memory Seat Module (MSM) (AN3)

11 - Inflatable Restraint Seat Position Sensor - Driver (10 Series except MEX)

12 - Seat Adjuster Motor Assembly - Driver (AG1)

13 - Seat Belt Buckle - Driver
