Power Take Off (PTO) Module (PTO)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Take Off (PTO) Module (PTO)

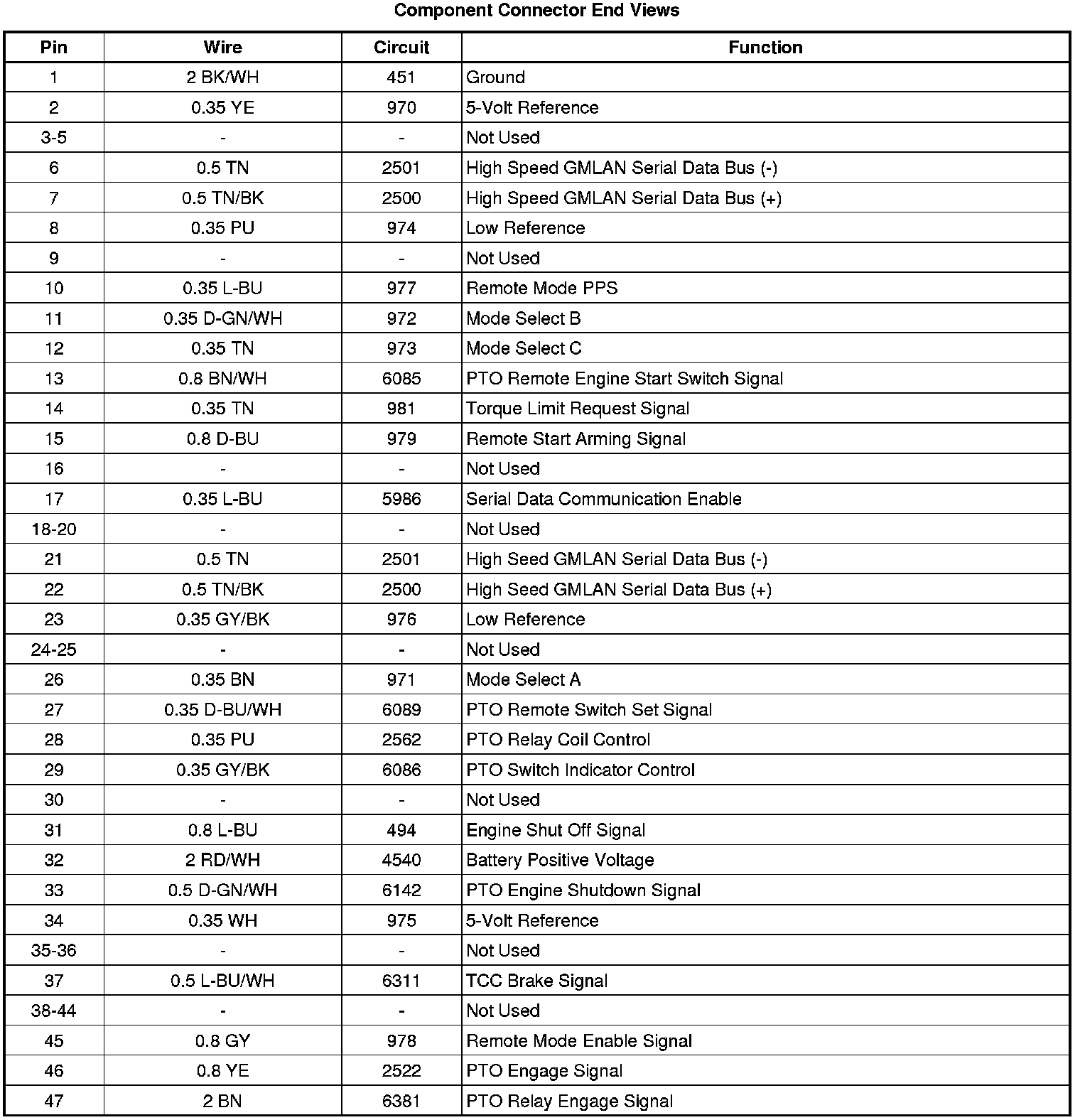

Component Connector End Views
Power Take Off (PTO) Module (PTO)
