Fuel Pump/Trailer Brake Control Module (JL1)

Wheels/Vehicle Underbody Component Views

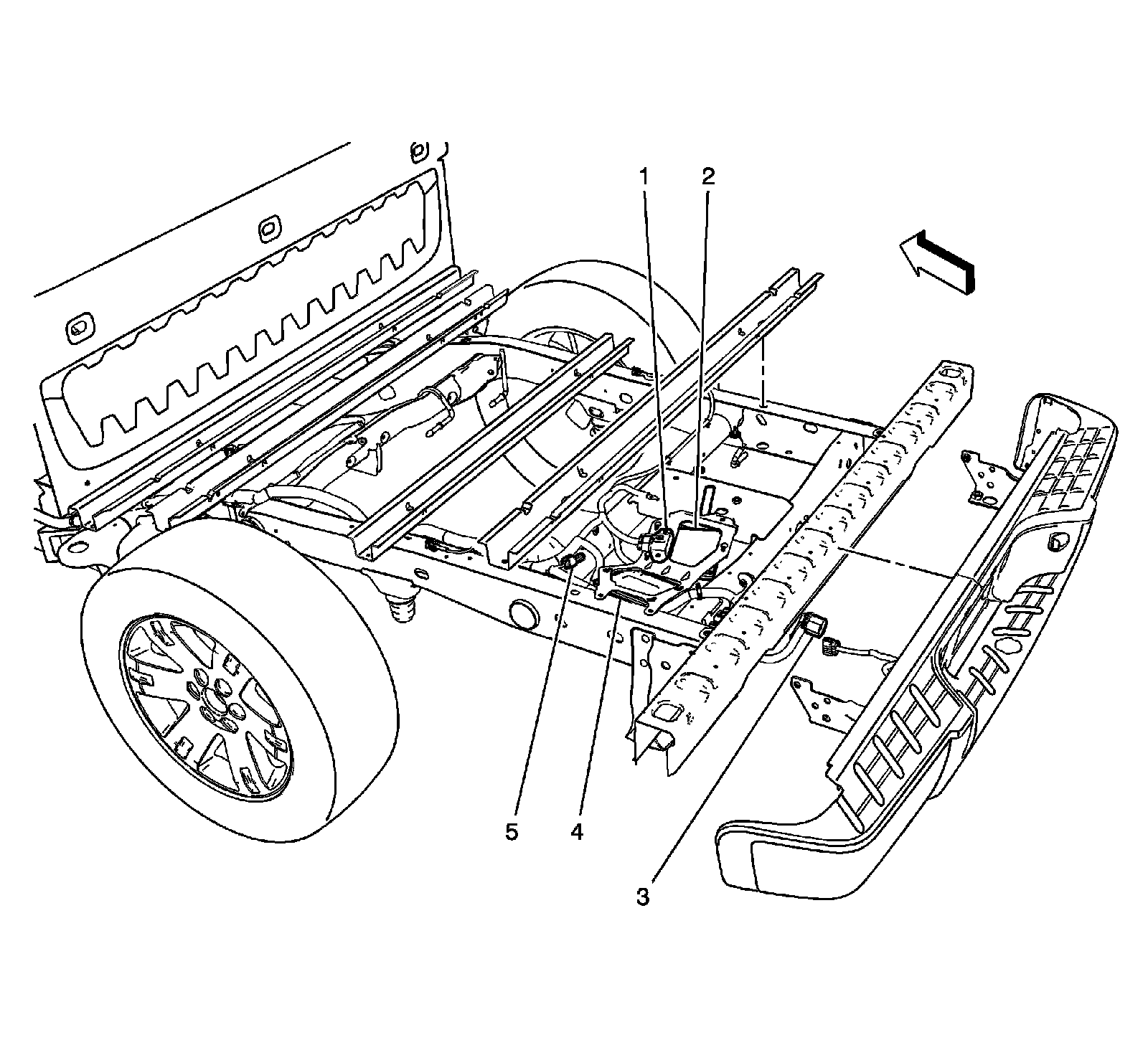

Rear Frame and Underbody Components (10 Series)





1 - Trailer Brake Control Relay (JL1)

2 - Fuel Pump/Trailer Brake Control Module (JL1)

3 - Trailer Connector (except MEX or EXP)

4 - Fuel Pump Flow Control Module (except LU3 or JL1)

5 - Data Link Resistor
