Below the Left Side of the I/P Components - 2 of 2

Instrument Panel/Center Console Component Views

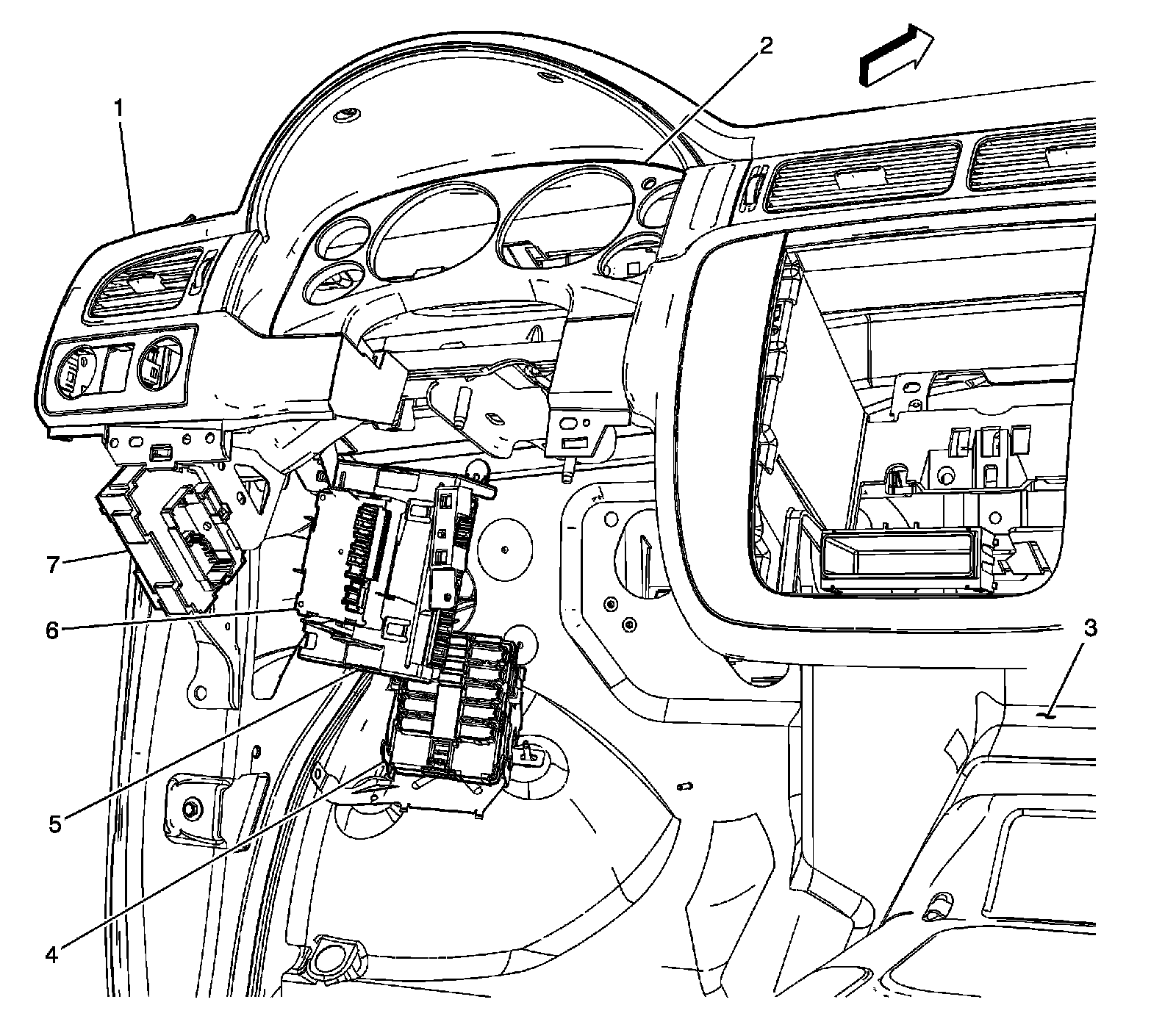

Below the Left Side of the I/P Components - 2 of 2





1 - I/P Trim

2 - I/P Cluster Trim

3 - Floor Panel

4 - Junction Block - Left I/P (except MEX)

5 - Body Control Module (BCM)

6 - Transfer Case Shift Control Module (NQF/NQH)

7 - Fuse Block - I/P
