Intake Manifold

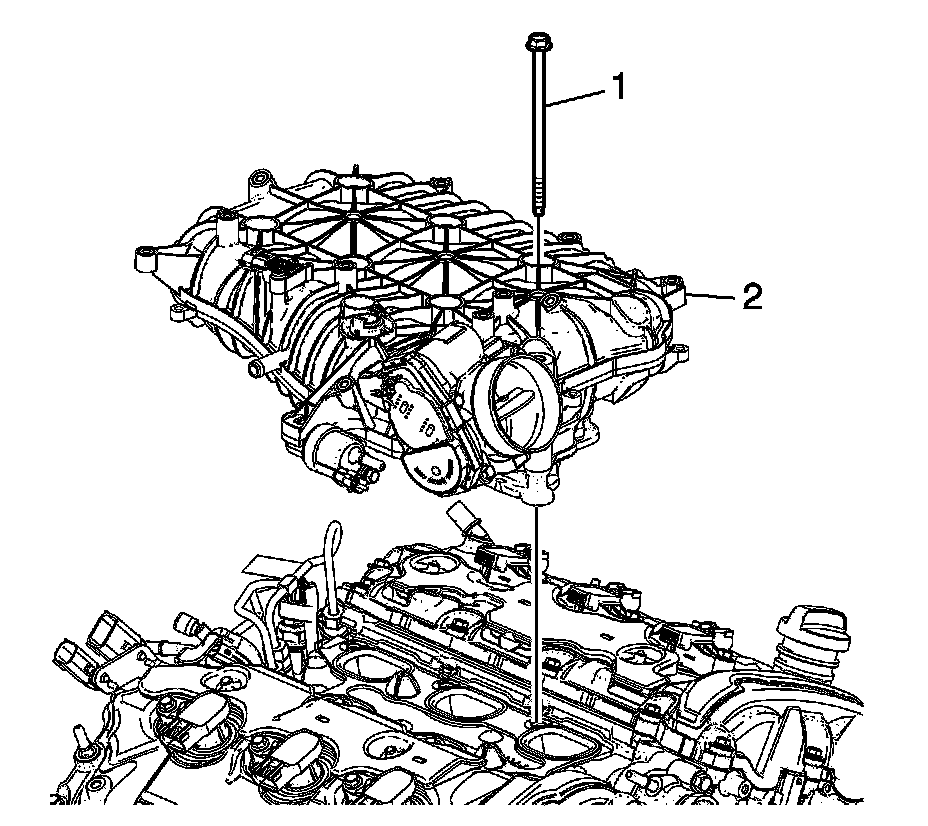

Install the intake manifold assembly (2).

Install the intake manifold bolts (1).

Intake Tightening Sequence (LF1 or LFW):

Tighten the intake manifold bolts in the sequence shown.
Tighten the intake manifold bolts in sequence to 25 Nm (18 lb ft).
Tighten the intake manifold bolts a second pass in sequence to 25 Nm (18 lb ft).
