Amplifier Inputs (UQA or UQS)

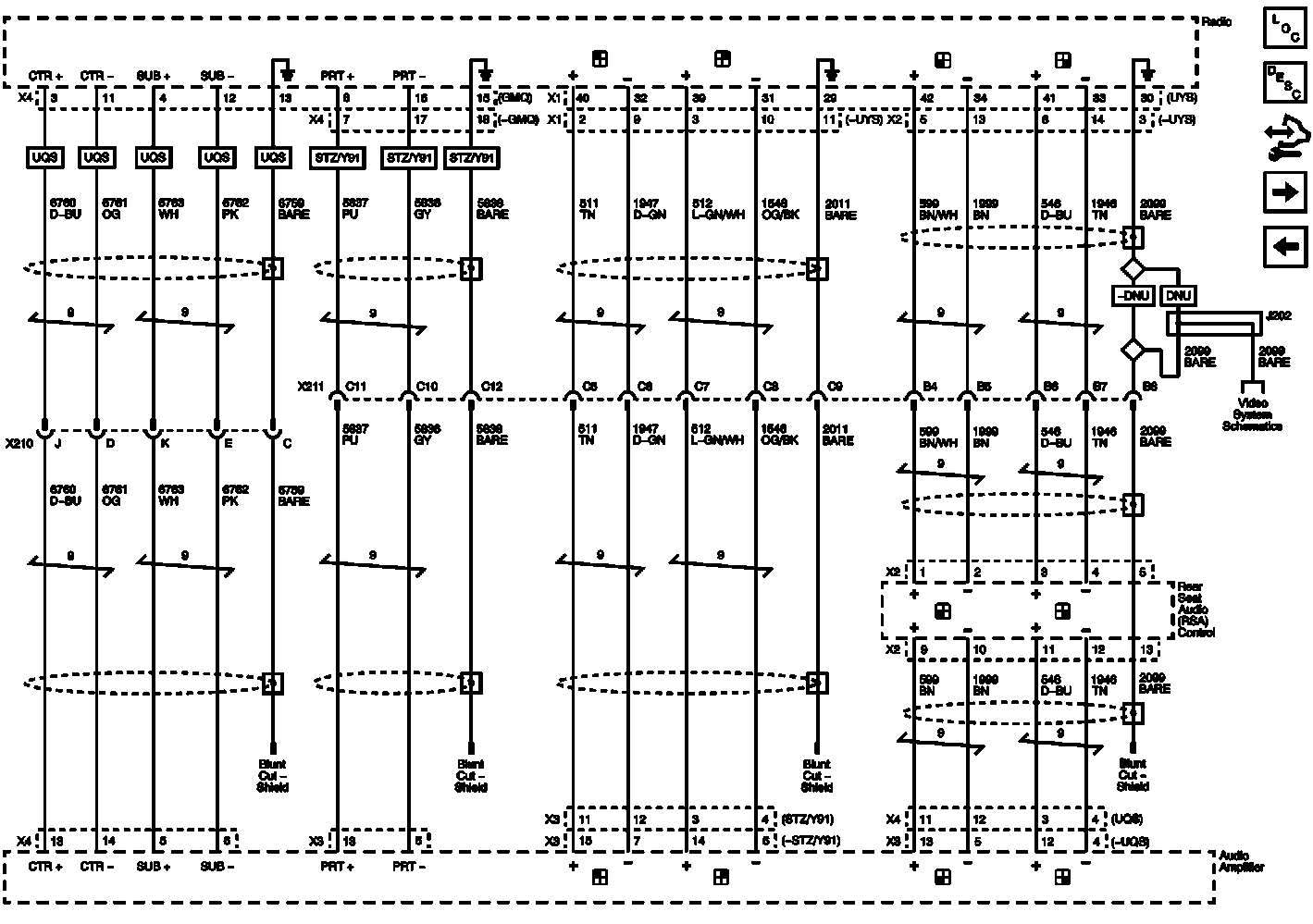

Fig 1: Amplifier Inputs Wiring Schematic (UQA or UQS)
Courtesy of GENERAL MOTORS COMPANY
