HVAC Control Module X4 (C69)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

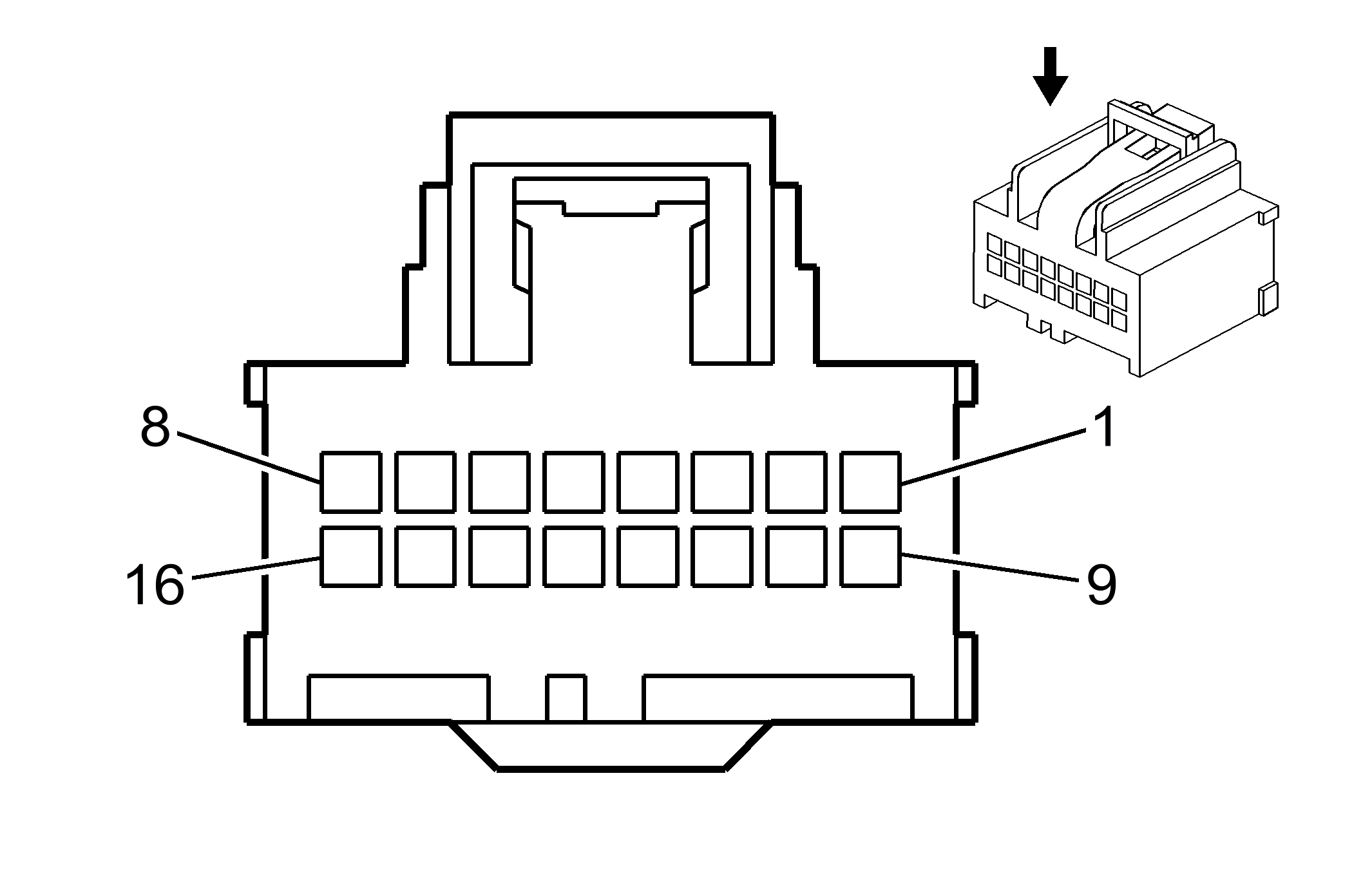

GM1715225Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 15483874
  • Service Connector: 21997401
  • Description: 16-Way F Kaizen 0.64 Series (GN)
Terminal Part Information
  • Terminated Lead: 13575867
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
HVAC Control Module X4 (C69)

Pin Wire Circuit Function
1 - - Not Used
2 0.35 GY 596 5-Volt Reference
3 0.35 OG 2215 Auxiliary Mode Door Control
4 0.35 GY 2614 Auxiliary Air Temperature Door Control
5 0.35 GY/BK 1798 Low Reference (CJ3)
6 0.35 GY/BK 1798 Low Reference (CJ2)
7 0.35 BN 5516 Inside Air Temperature Sensor Assembly Control (CJ2)
8-9 - - Not Used
10 0.35 D-GN 2211 Auxiliary Blower Motor Speed Control
11-16 - - Not Used
