Rearview Camera (UVC) Wiring Schematics

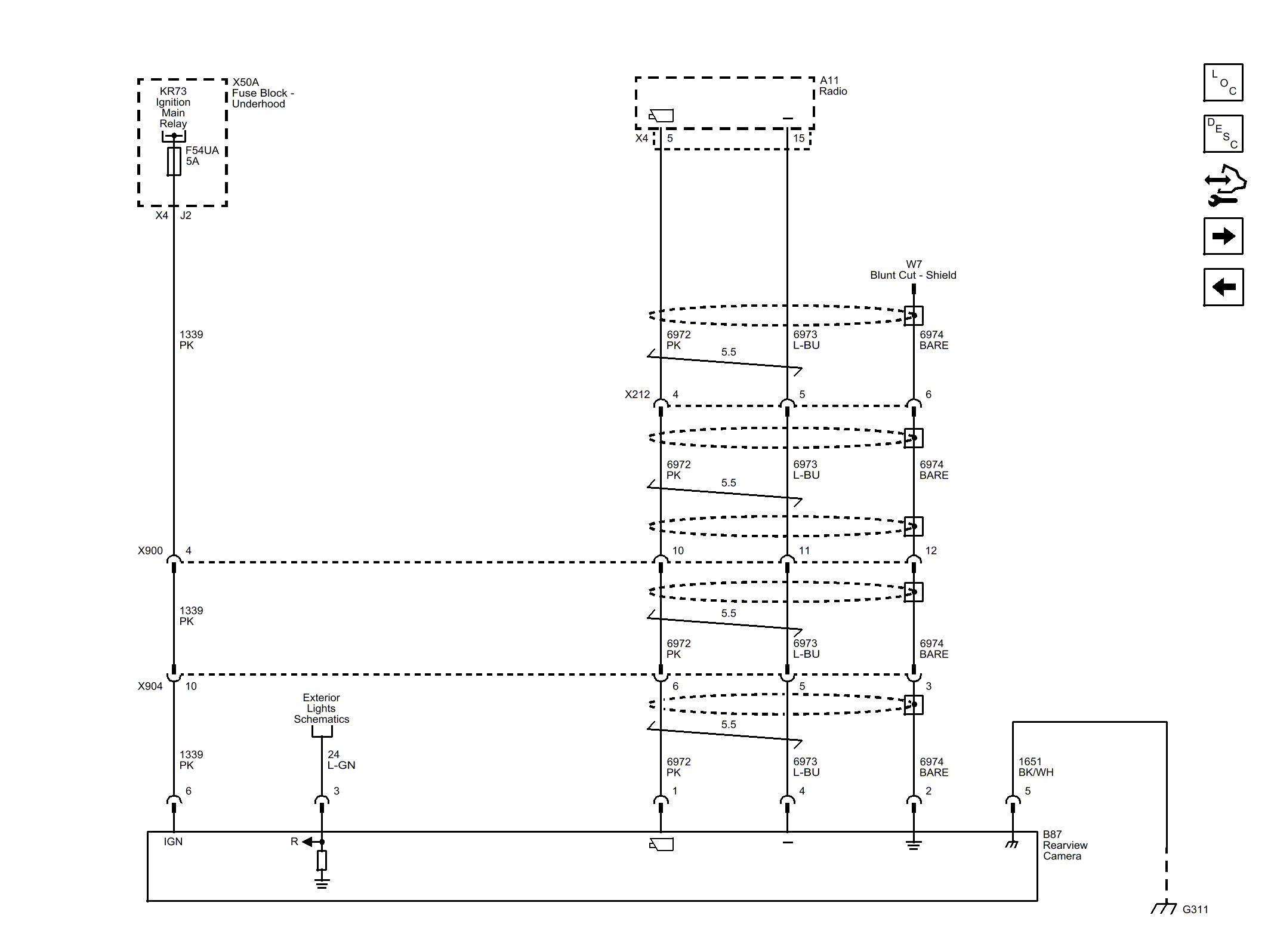

Fig 1: Rearview Camera (UVC) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
