Side Object Detection (UFT) Wiring Schematics

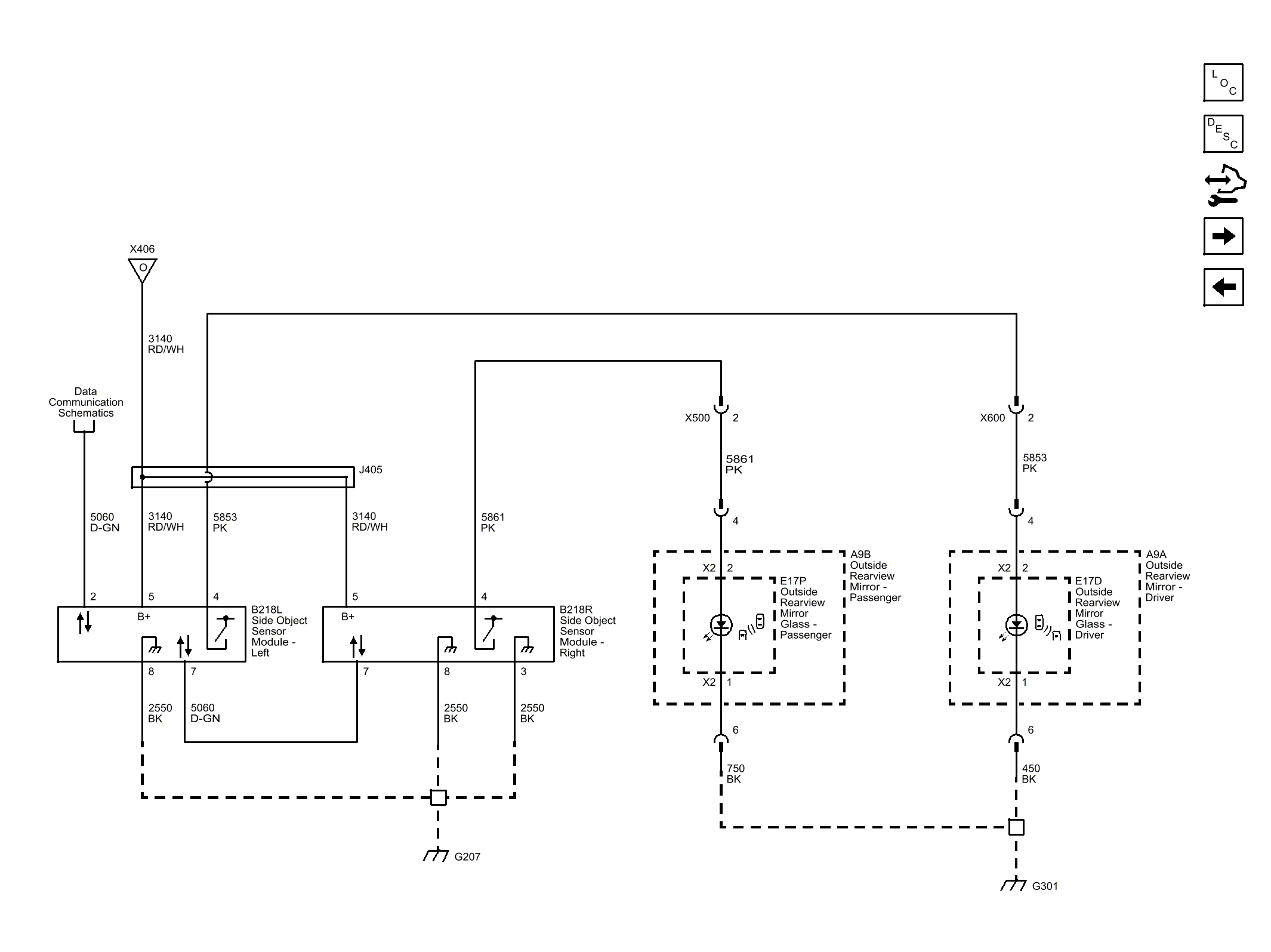

Fig 1: Side Object Detection (UFT) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
