Installation Procedure
WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

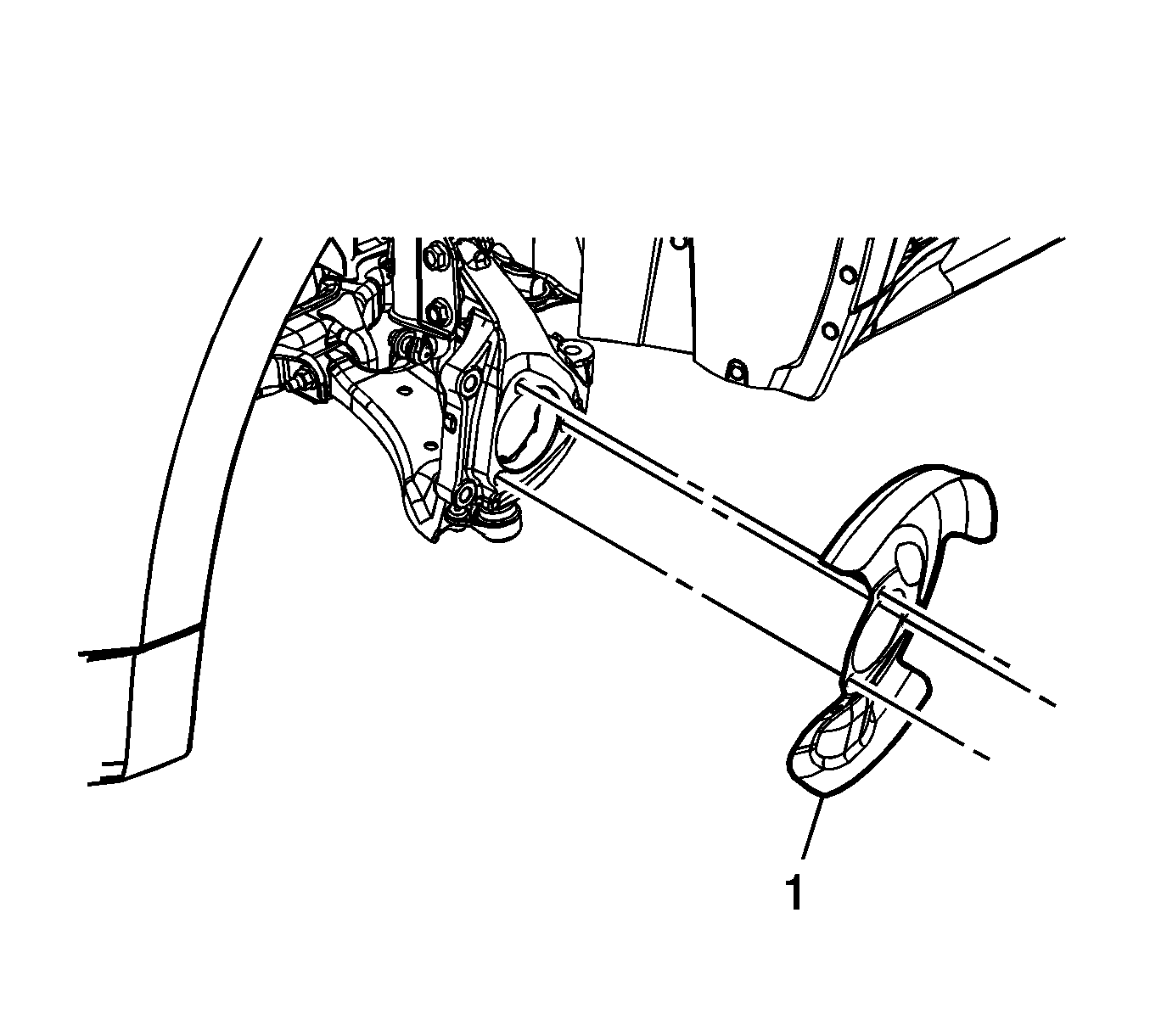

- Install the front brake shield (1).
- Install the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement .
- Install the front wheel drive shaft nut. Refer to Front Wheel Drive Shaft Replacement .
- Install the front brake rotor. Refer to Front Brake Rotor Replacement .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
