Electronic Traction Control and Vehicle Stability Control Switch Replacement

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

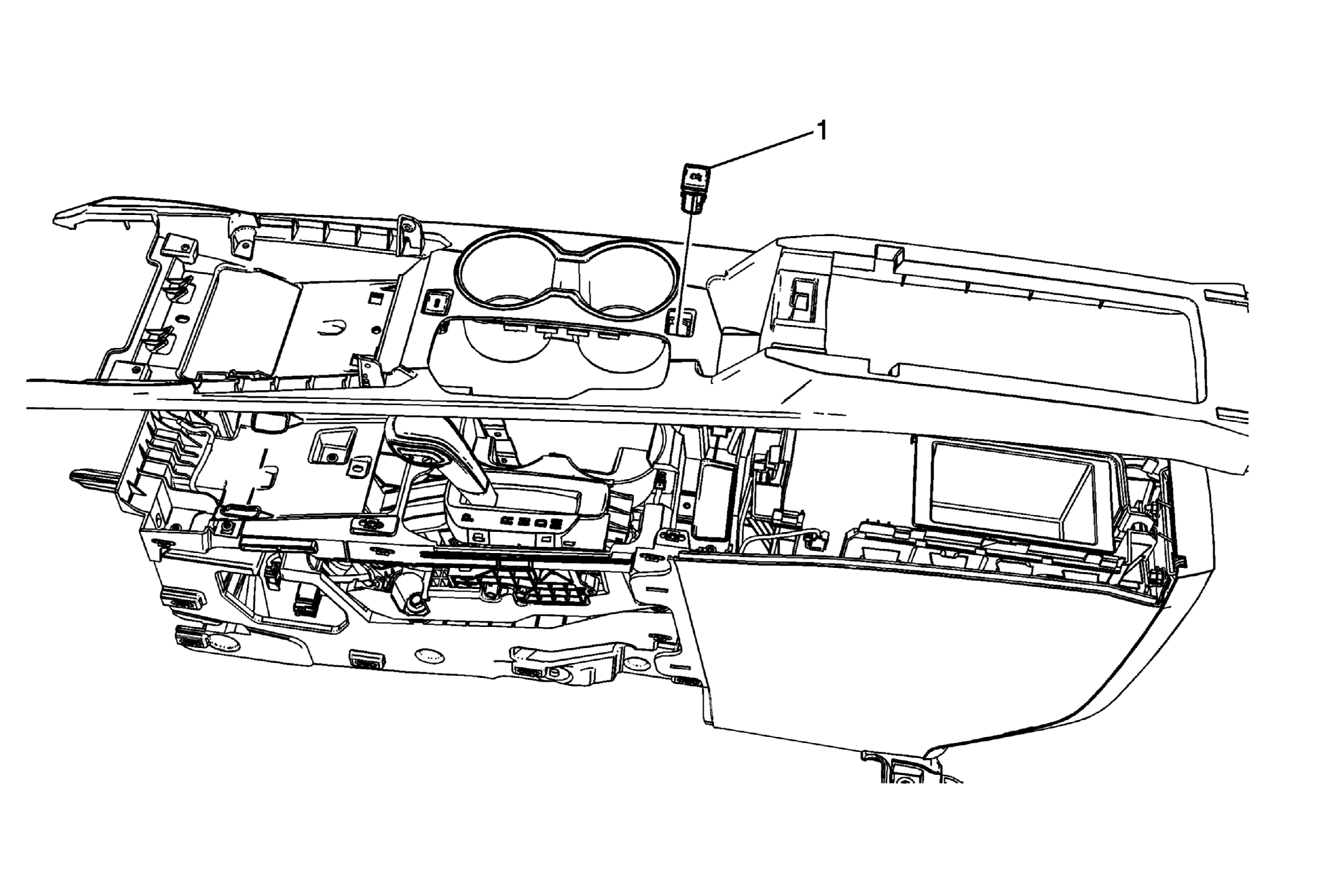

Fig 1: Electronic Traction Control & Vehicle Stability Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console transmission shift opening trim plate. Refer to Front Floor Console Transmission Shift Opening Trim Plate Replacement
1	Electronic Traction Control and Vehicle Stability Control Switch Insert your fingers or the appropriate tool into the seam around the shifter assembly and push upward on the traction control switch from below to release the fastening tabs. Disconnect the electrical connector.
