Remote Control Door Lock Receiver Replacement (With UFL)

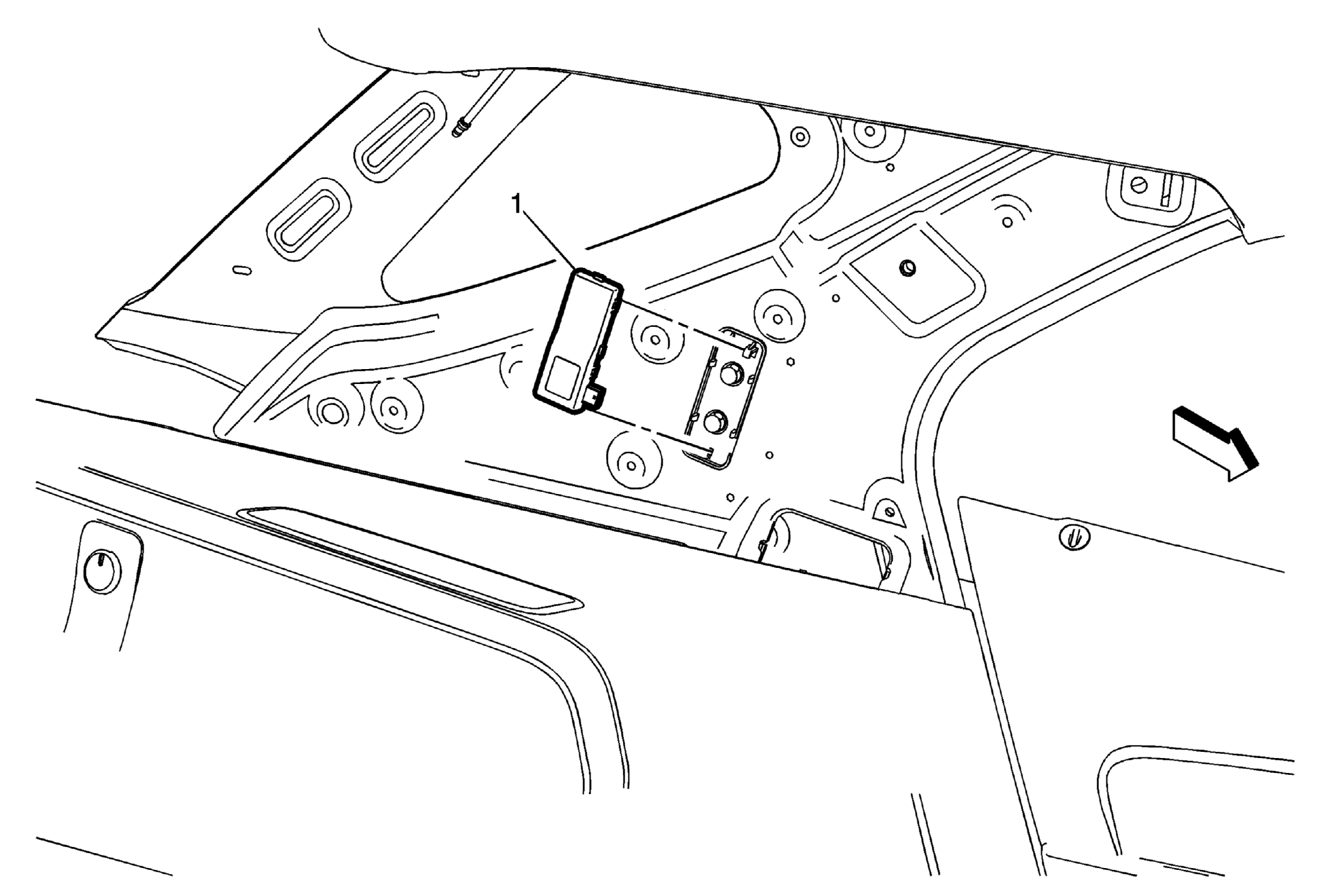

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure NOTE: The Quarter Window Trim Finish Panel only needs to be repositioned to gain access to the Remote Control door Lock Receiver. The seat belt does not need to be removed from the panel. Reposition the quarter window trim finish panel - left side. Refer to Quarter Window Trim Finish Panel Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the receiver from the bracket. For programming and set up, refer to Control Module References

Callout

Component Name

Preliminary Procedure

NOTE:

The Quarter Window Trim Finish Panel only needs to be repositioned to gain access to the Remote Control door Lock Receiver. The seat belt does not need to be removed from the panel.

Reposition the quarter window trim finish panel - left side. Refer to Quarter Window Trim Finish Panel Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Unsnap the receiver from the bracket.
For programming and set up, refer to Control Module References
