Rearview Camera (UVC)

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

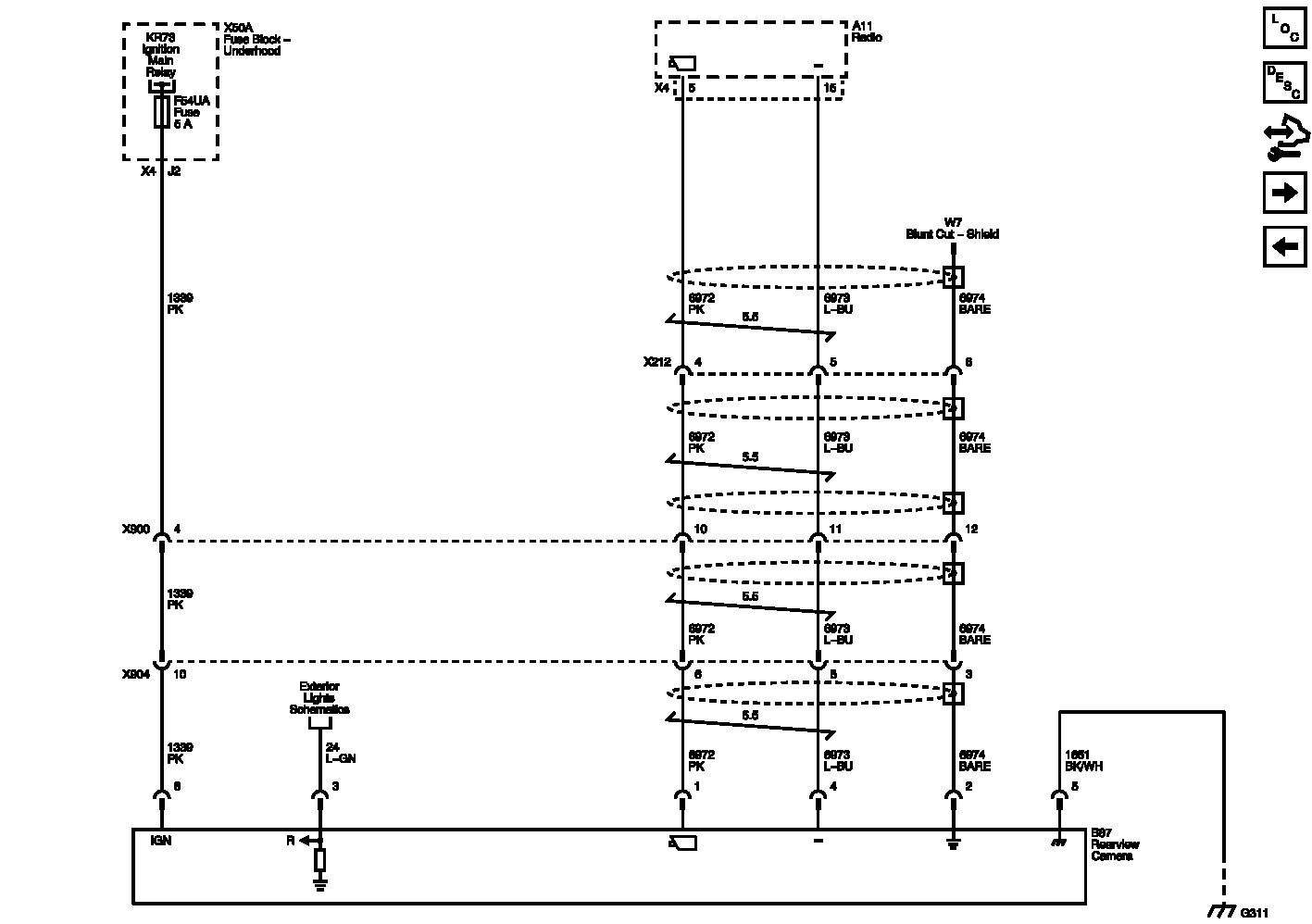

Fig 1: Rearview Camera (UVC) Wiring Schematic
GM2619510Courtesy of GENERAL MOTORS COMPANY
