Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

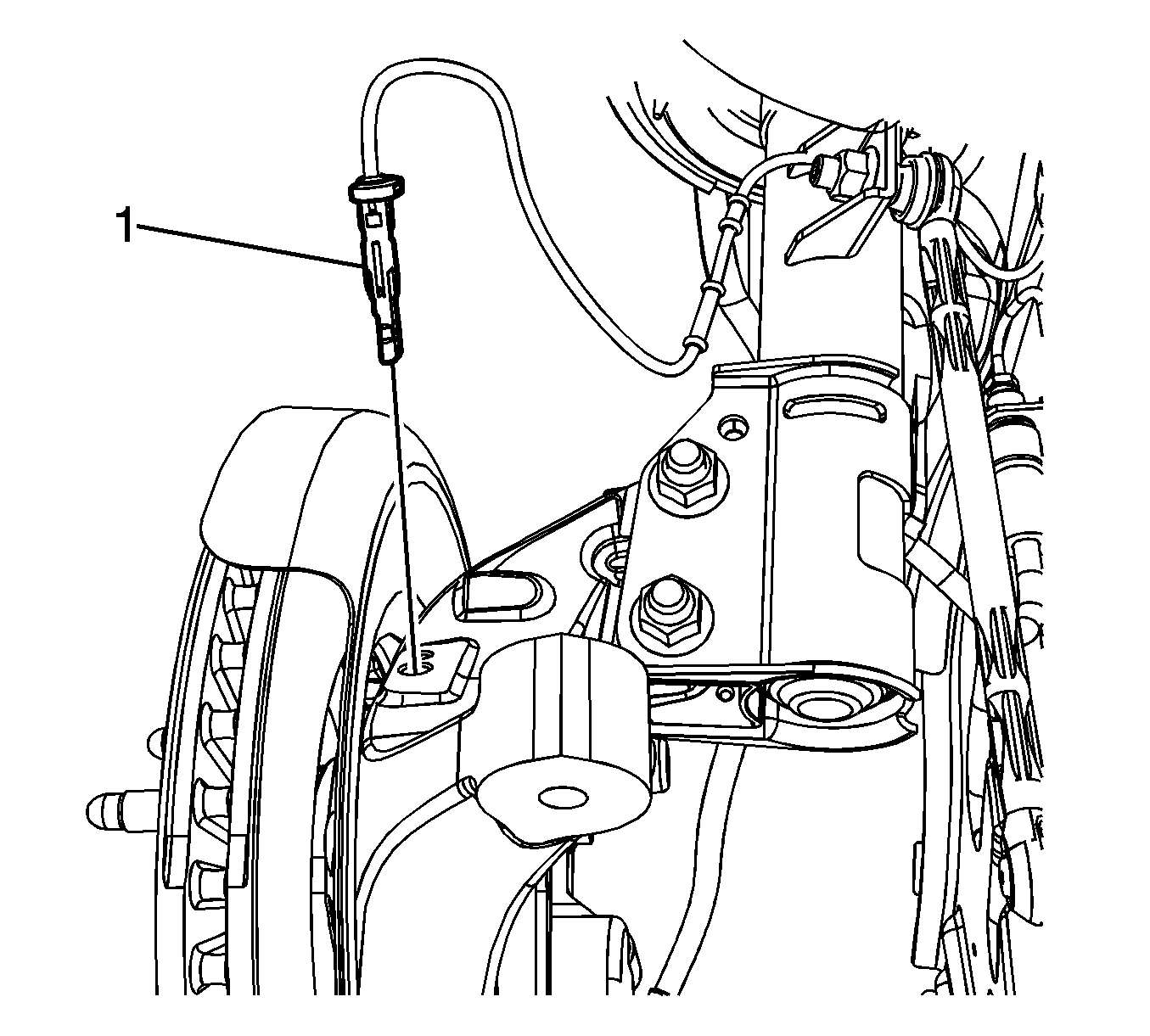

    Fig 1: Wheel Speed Sensor
    GM2249468Courtesy of GENERAL MOTORS CORP.
  1. Install the wheel speed sensor (1) to the steering knuckle.

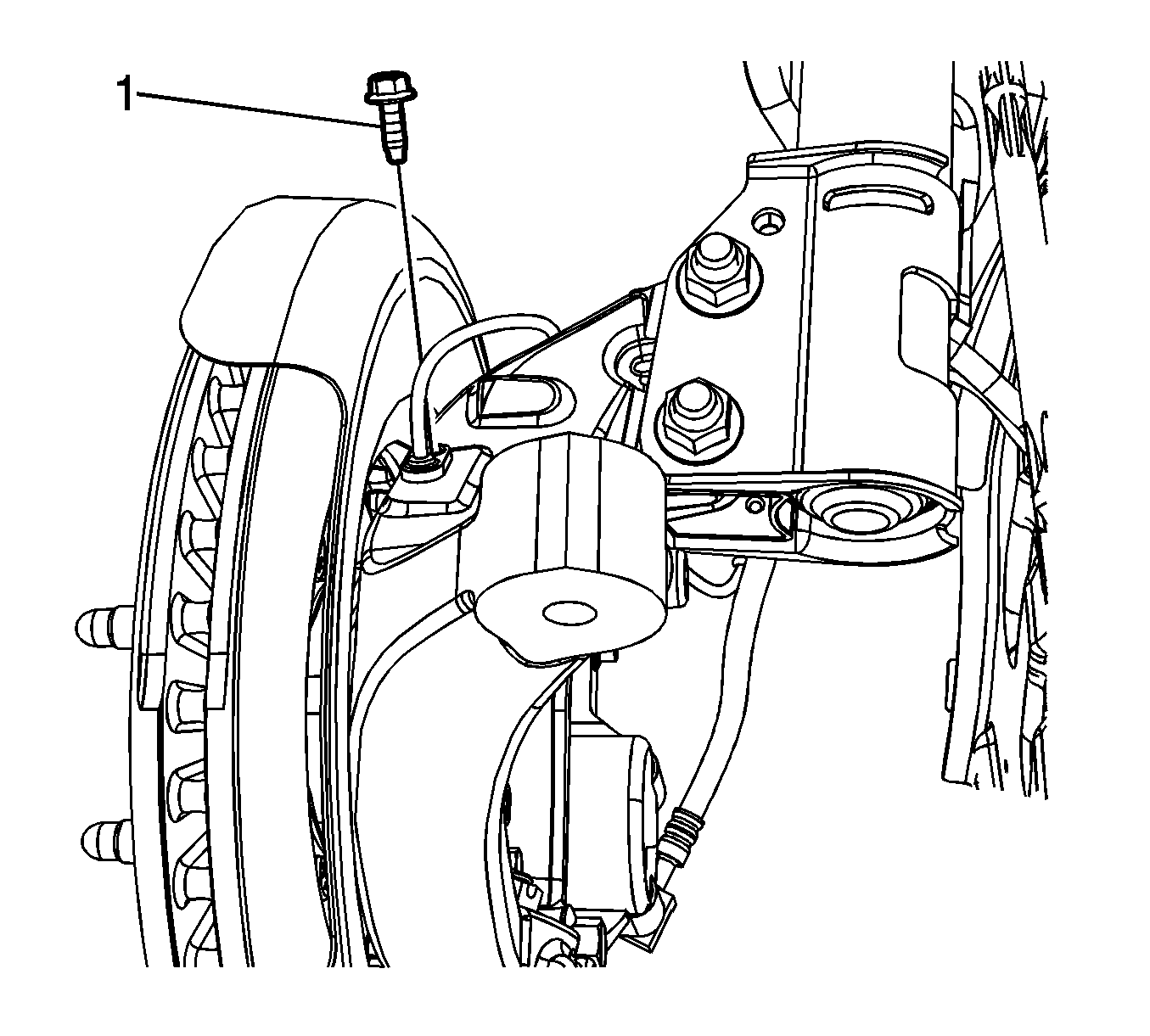

    2. Fig 2: Wheel Speed Sensor Bolt
    GM2249467Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the wheel speed sensor bolt (1) and tighten to 10 N.m (89 lb in).

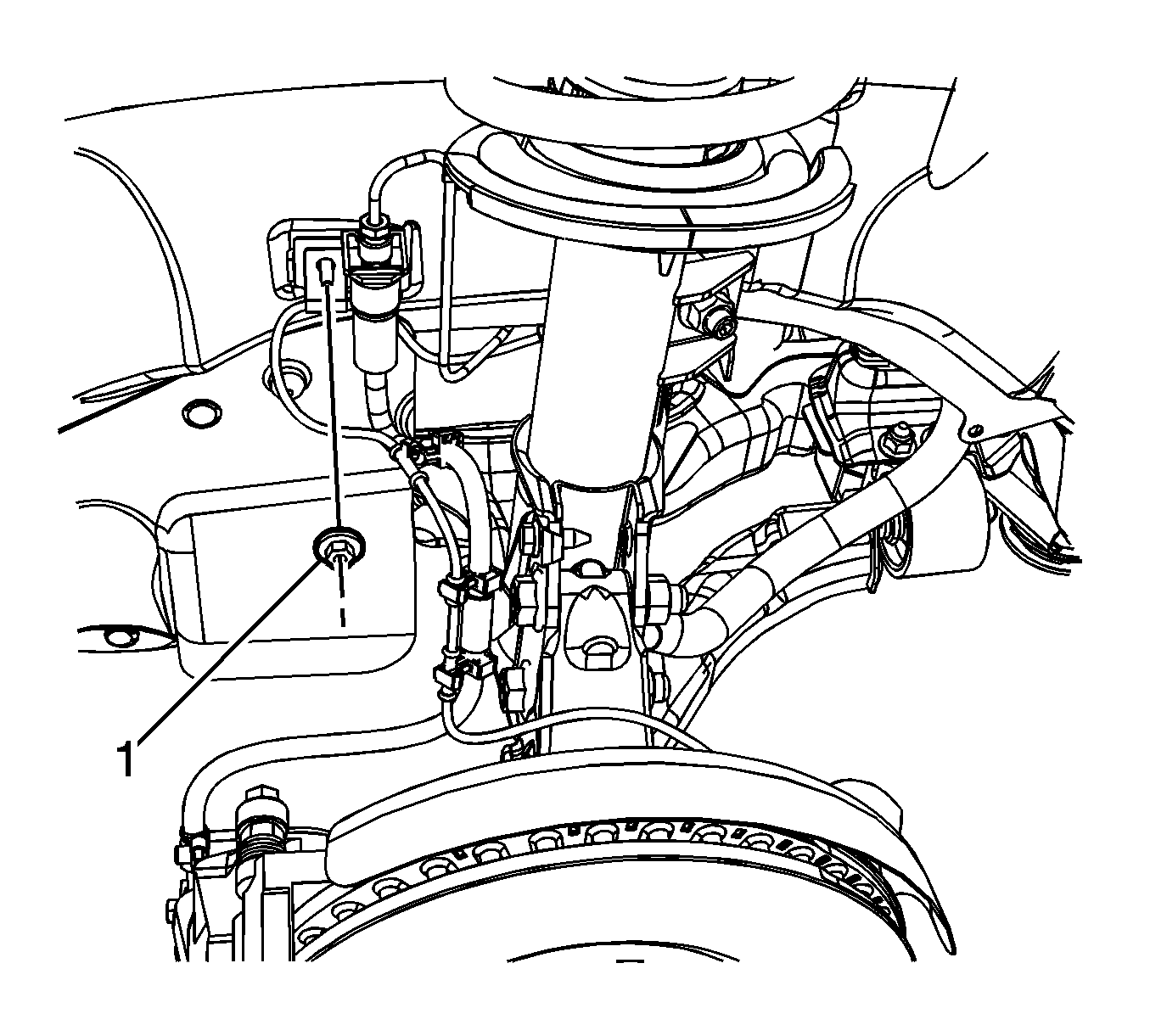

    3. Fig 3: Front Brake Hose Bracket Nut
    GM2249464Courtesy of GENERAL MOTORS CORP.
  3. Install the front brake hose bracket nut (1) and tighten to 10 N.m (89 lb in).
  4. Connect the wheel speed sensor electrical connector.
  5. Install the front wheel speed sensor harness to the retainers on the front brake hose.
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
