Rearview Camera Image Display Module Replacement

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

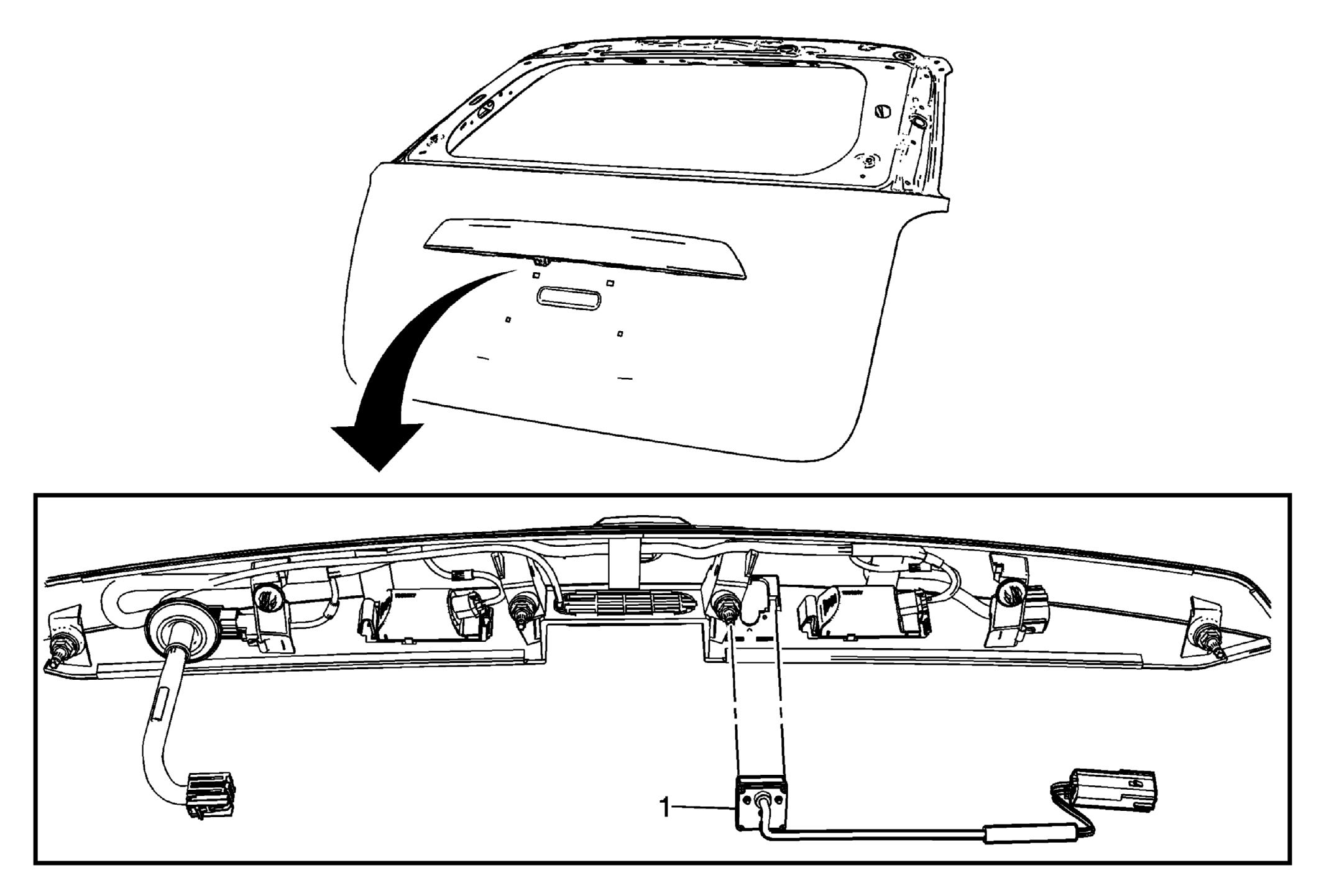

Fig 1: Rearview Camera Image Display Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate applique. Refer to Liftgate Applique Replacement (Equinox w/UVC) or Liftgate Applique Replacement (Equinox wo/UVC) or Liftgate Applique Replacement (Terrain) .
1	Rearview Camera Procedure Disconnect the electrical connector. Depress the clip fingers and push outward to remove the rearview camera from the applique.

Callout

Component Name

Preliminary Procedure:
Remove the liftgate applique. Refer to Liftgate Applique Replacement (Equinox w/UVC) or Liftgate Applique Replacement (Equinox wo/UVC) or Liftgate Applique Replacement (Terrain) .

Rearview Camera

Procedure

Disconnect the electrical connector.
Depress the clip fingers and push outward to remove the rearview camera from the applique.
