Installation Procedure

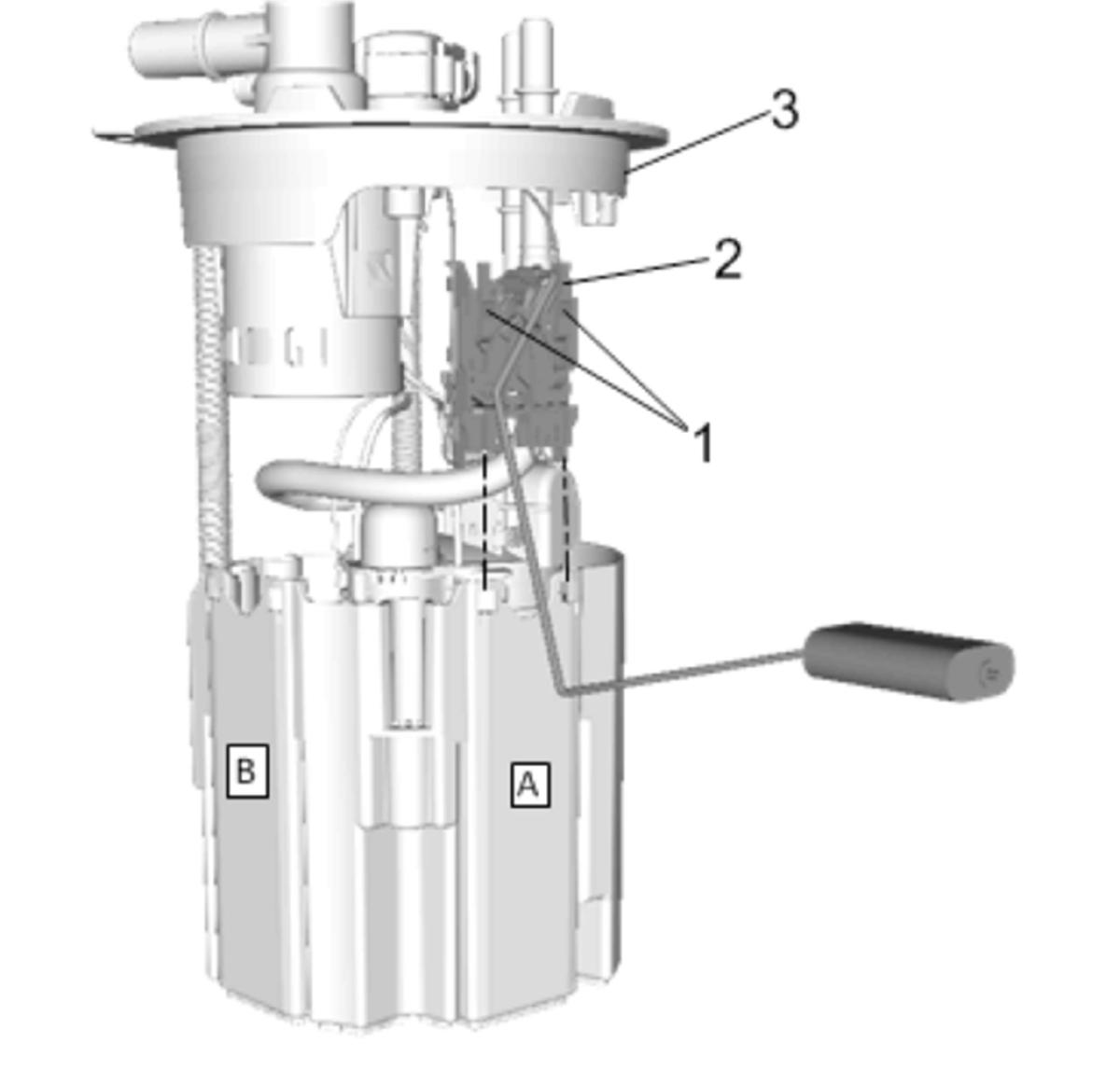

Fig 1: Fuel Tank Fuel Pump Module Fuel Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Install the fuel tank fuel pump module fuel level sensor (2) in slot (A) of the fuel tank fuel pump module (3).
Carefully insert the fuel tank fuel pump module fuel level sensor until the locking tabs (1) snap into the locking position.

Fig 2: Fuel Tank Fuel Pump Module Fuel Level Sensor Electrical Connectors

Courtesy of GENERAL MOTORS COMPANY

Connect the fuel tank fuel pump module fuel level sensor electrical connectors (1) to the fuel tank fuel pump module (2).

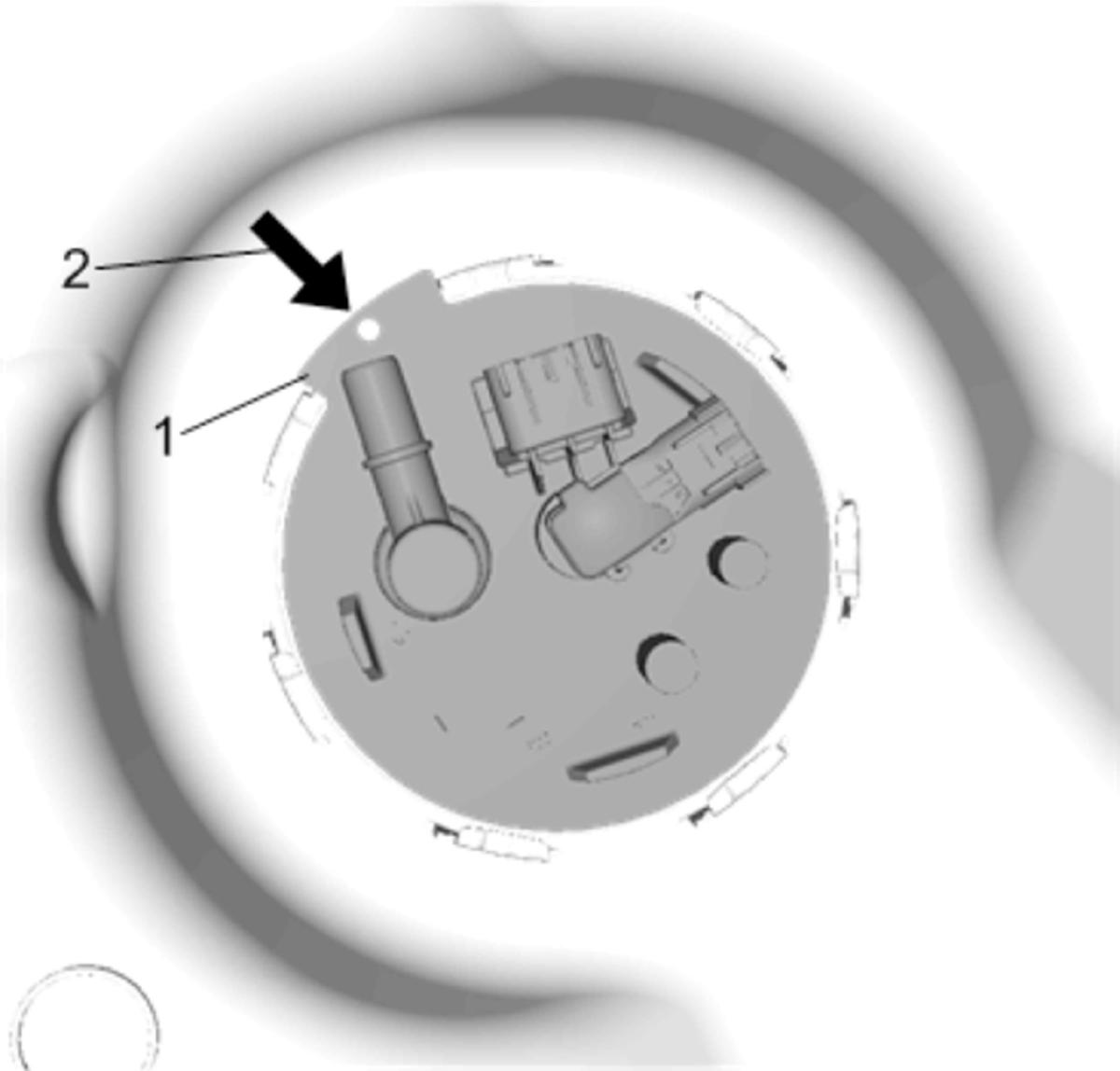

Fig 3: Fuel Tank Fuel Pump Module

Courtesy of GENERAL MOTORS COMPANY

Align fuel tank fuel pump module (1) with arrow (2) on the fuel tank.
Install the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
