Front of the Instrument Panel Components

Items
1: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
2: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQ3)P19H Speaker - Left Front Tweeter (UQA)
3: P16 Instrument Cluster P16 Instrument Cluster
4: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
5: P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA)
6: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
7: P17 Info Display Module P17 Info Display Module X1 P17 Info Display Module X3
8: A22 Radio Controls
9:A33 Media Disc Player (TG5) A33 Media Disc Player (TG5)
10: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter (UQ3)P19V Speaker - Right Front Tweeter (UQA)
11: A26 HVAC Controls A26 HVAC Controls
12: S32P Seat Heating Switch - Passenger (KA1) S32P Seat Heating Switch - Passenger (KA1)
13: X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1
14: S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel
15: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 X83 Auxiliary Audio Input X2 IO3
16: S32D Seat Heating Switch - Driver (KA1) S32D Seat Heating Switch - Driver (KA1)
17: S39 Ignition Switch S39 Ignition Switch
18: M93 Key Capture Solenoid Actuator (MYB) M93 Key Capture Solenoid Actuator (MYB)
19: K89 Immobilizer Control Module K89 Immobilizer Control Module
20: S77 Transfer Case Shift Control Switch (NQ6/NQ7) S77 Transfer Case Shift Control Switch (NQ6/NQ7)
21: S30 Headlamp Switch S30 Headlamp Switch

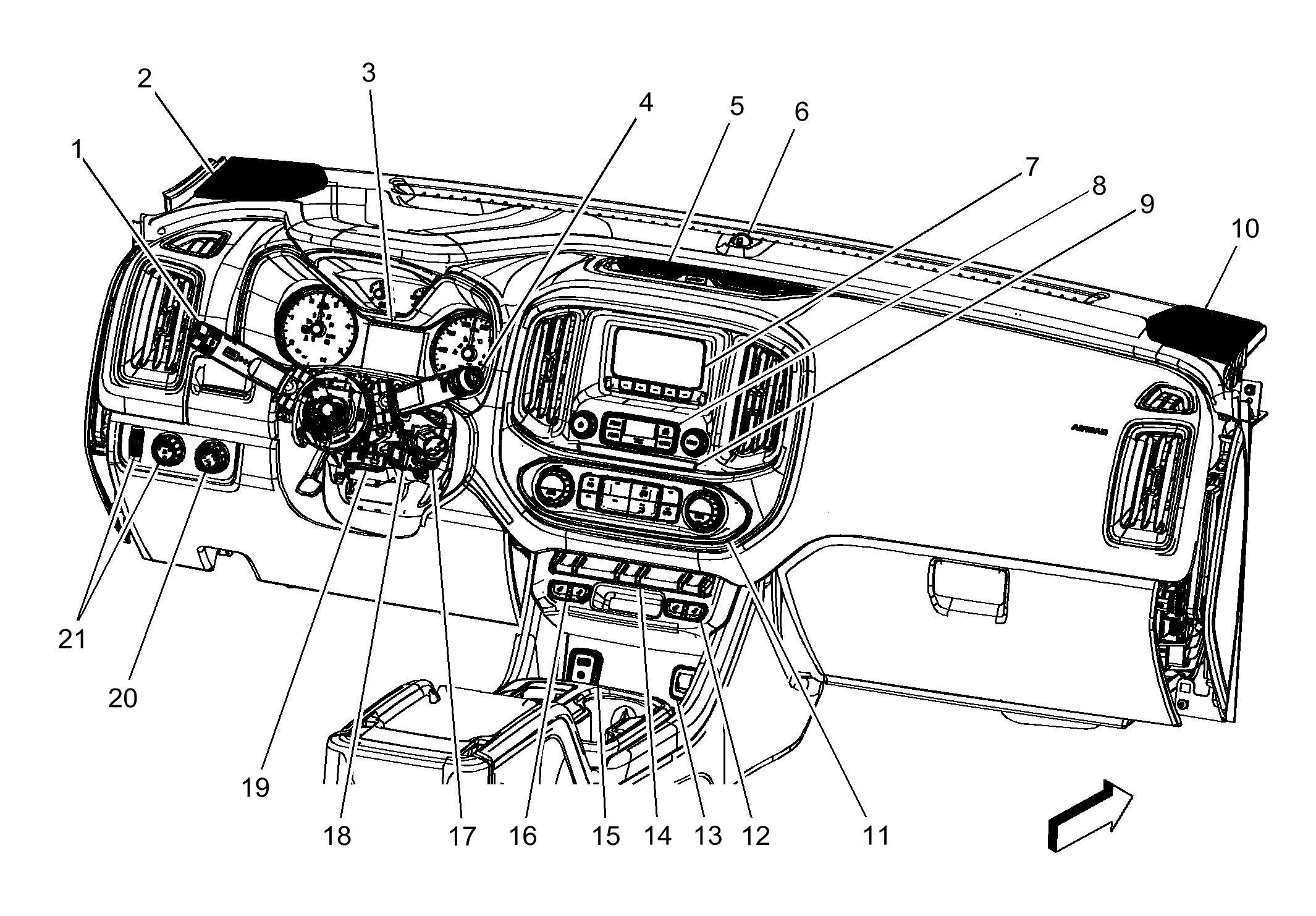

Fig 1: Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
