Outside Rearview Mirror Remote Control Switch Replacement

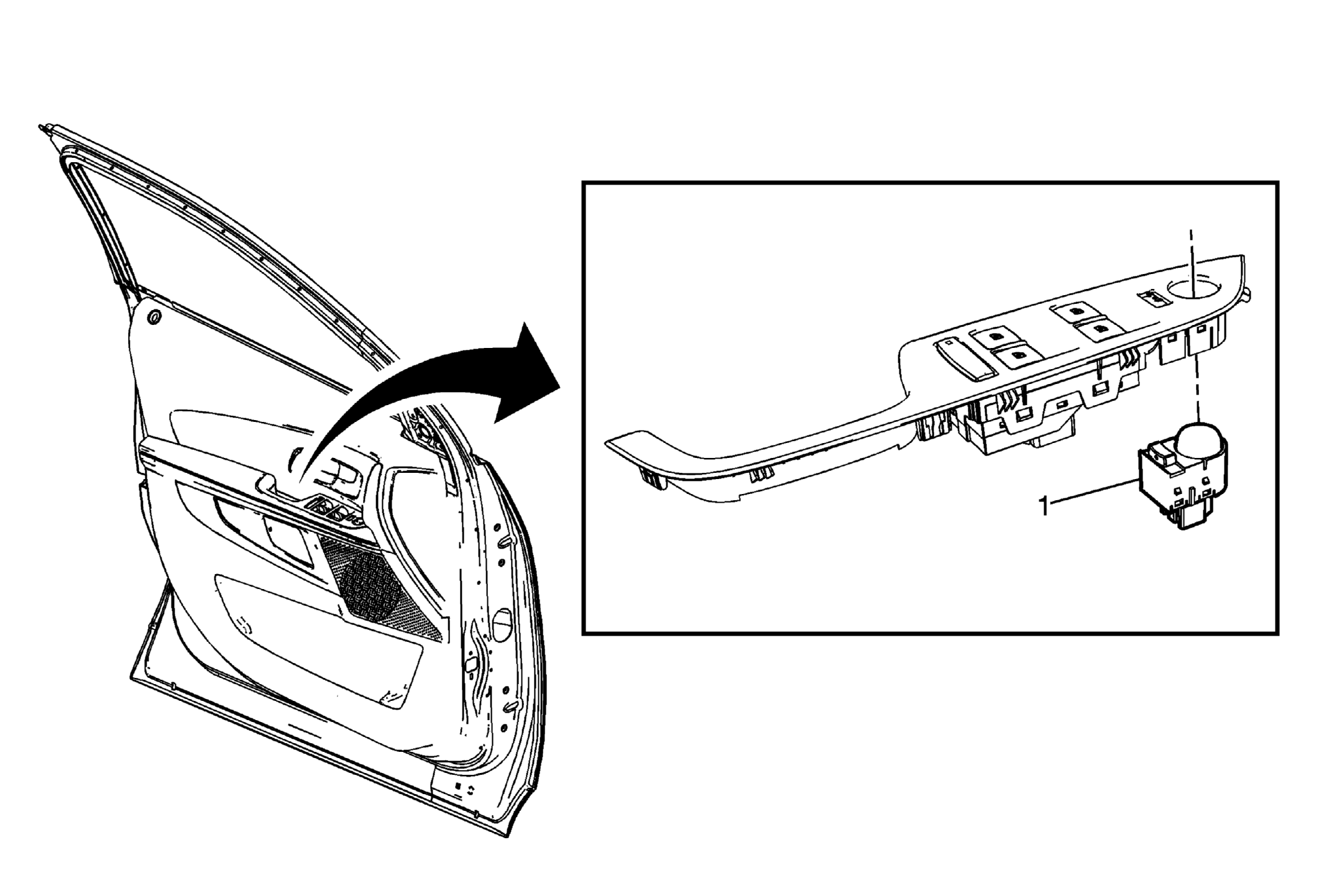

Fig 1: Outside Remote Control Rearview Mirror Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .
1	Outside Remote Control Rearview Mirror Switch Assembly Procedure Disconnect the electrical connector. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .

Outside Remote Control Rearview Mirror Switch Assembly

Procedure
