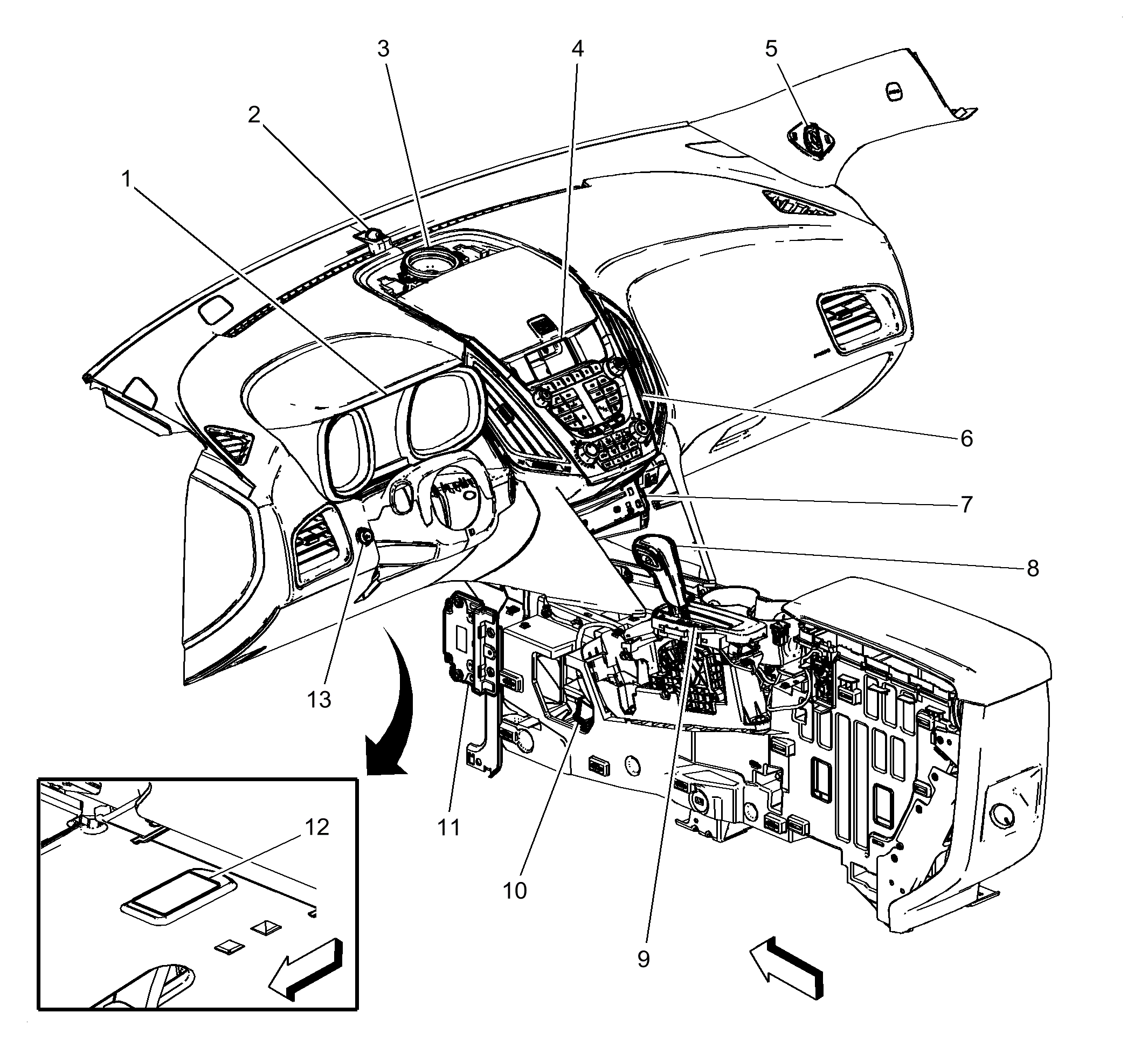

Instrument Panel Components (1 of 2)
Instrument Panel Components (1 of 2)
| Items |
|---|
| 1: P16 Instrument Cluster P16 Instrument Cluster |
| 2: B10B Ambient Light/Sunload Sensor (C68) B10B Ambient Light/Sunload Sensor |
| 3: P19B Speaker - Center Instrument Panel (UZ8) P19B Speaker - Center Instrument Panel |
| 4: P17 Info Display Module P17 Info Display ModuleP17 Info Display Module (without UHQ or UFU) |
| 5: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
| 6: A20 Radio/HVAC Controls A20 Radio/HVAC Controls |
| 7: A11 Radio A11 Radio X1A11 Radio X3A11 Radio X4 |
| 8: S3 Transmission Shift Lever S3 Transmission Shift Lever |
| 9: P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator |
| 10: T11 Multimedia Player Interface Module (KTA) T11 Multimedia Player Interface Module |
| 11: K108 Active Noise Cancellation Module (VQN) K108 Active Noise Cancellation Module |
| 12: E8J Instrument Panel Courtesy Lamp - Left (LTZ or SLT) E8J Instrument Panel Courtesy Lamp - Left |
| 13: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
