Camshaft Position Sensor Replacement - Intake

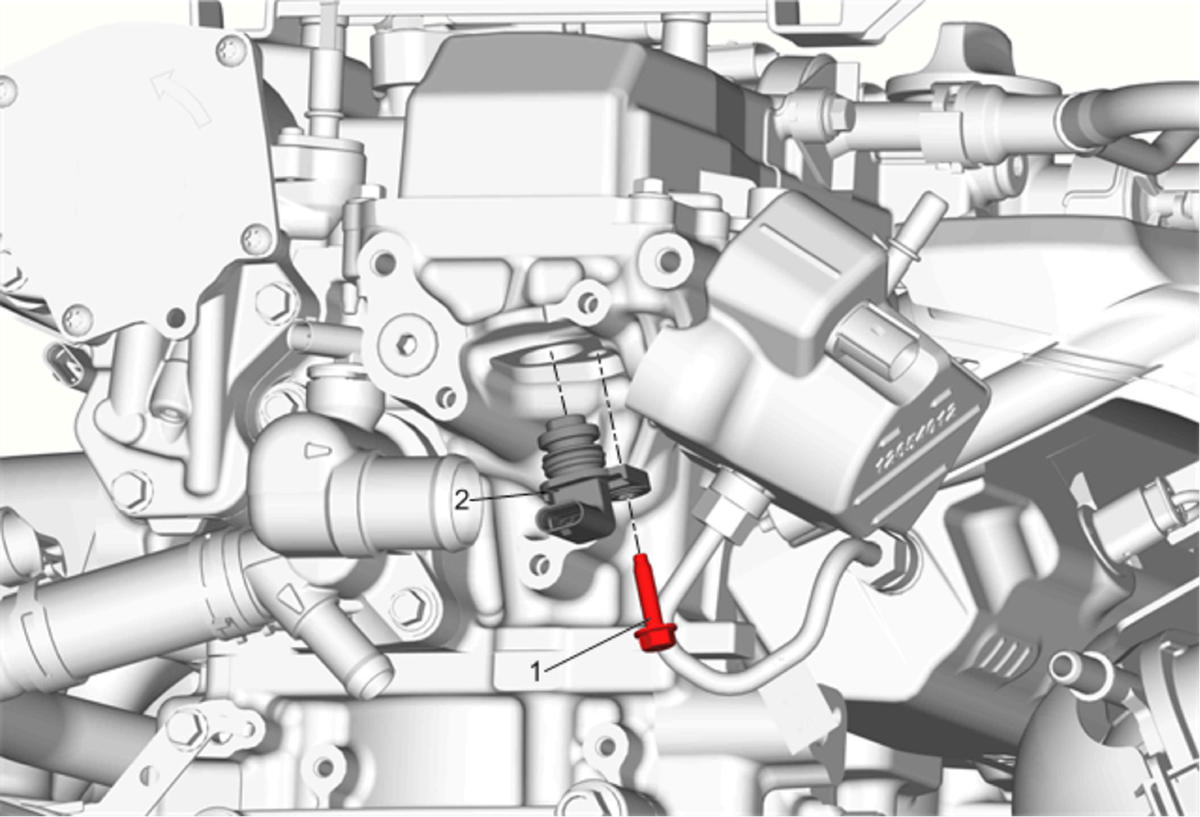

Fig 1: Camshaft Position Sensor - Intake

GM3818294

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the plenum front panel. Refer to Plenum Front Panel Replacement .
Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement .

1

Camshaft Position Sensor Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

2

Camshaft Position Sensor

Procedure

Disconnect the electrical wiring harness connector from the camshaft position sensor.
Install a NEW seal if reusing the camshaft position sensor.
