Fuel Tank Fuel Pump Module Replacement

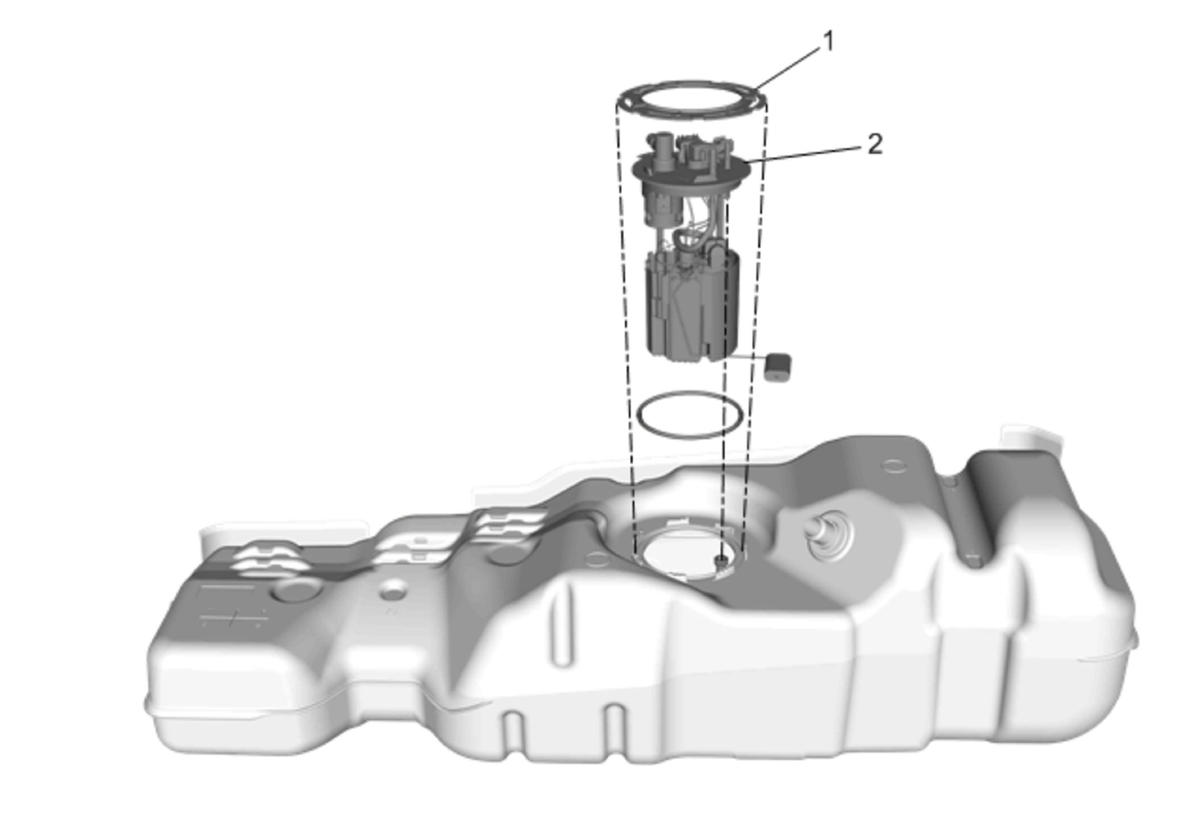

Fig 1: Fuel Tank Fuel Pump Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement . Disconnect the fuel and EVAP lines from the fuel tank fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service . Disconnect the electrical wiring harness connector from the fuel tank fuel pump module.
1	Fuel Tank Fuel Pump Module Lock Ring CAUTION: Refer to Fastener Caution . Special Tools J-45722 Fuel Sender Lock Ring Wrench For equivalent regional tools, refer to Special Tools (Diagnostic Tools)Special Tools (Mechanical Tools)
2	Fuel Tank Fuel Pump Module Procedure Disconnect the vent pipe. Refer to Plastic Collar Quick Connect Fitting Service . Replace the O-ring seal.

Callout

Component Name

Preliminary Procedure

Remove the fuel tank. Refer to Fuel Tank Replacement .
Disconnect the fuel and EVAP lines from the fuel tank fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service .
Disconnect the electrical wiring harness connector from the fuel tank fuel pump module.

Fuel Tank Fuel Pump Module Lock Ring

CAUTION:

Special Tools
J-45722 Fuel Sender Lock Ring Wrench
For equivalent regional tools, refer to Special Tools (Diagnostic Tools)Special Tools (Mechanical Tools)

Fuel Tank Fuel Pump Module

Procedure

Disconnect the vent pipe. Refer to Plastic Collar Quick Connect Fitting Service .
Replace the O-ring seal.
