Intake Air Baffle Replacement

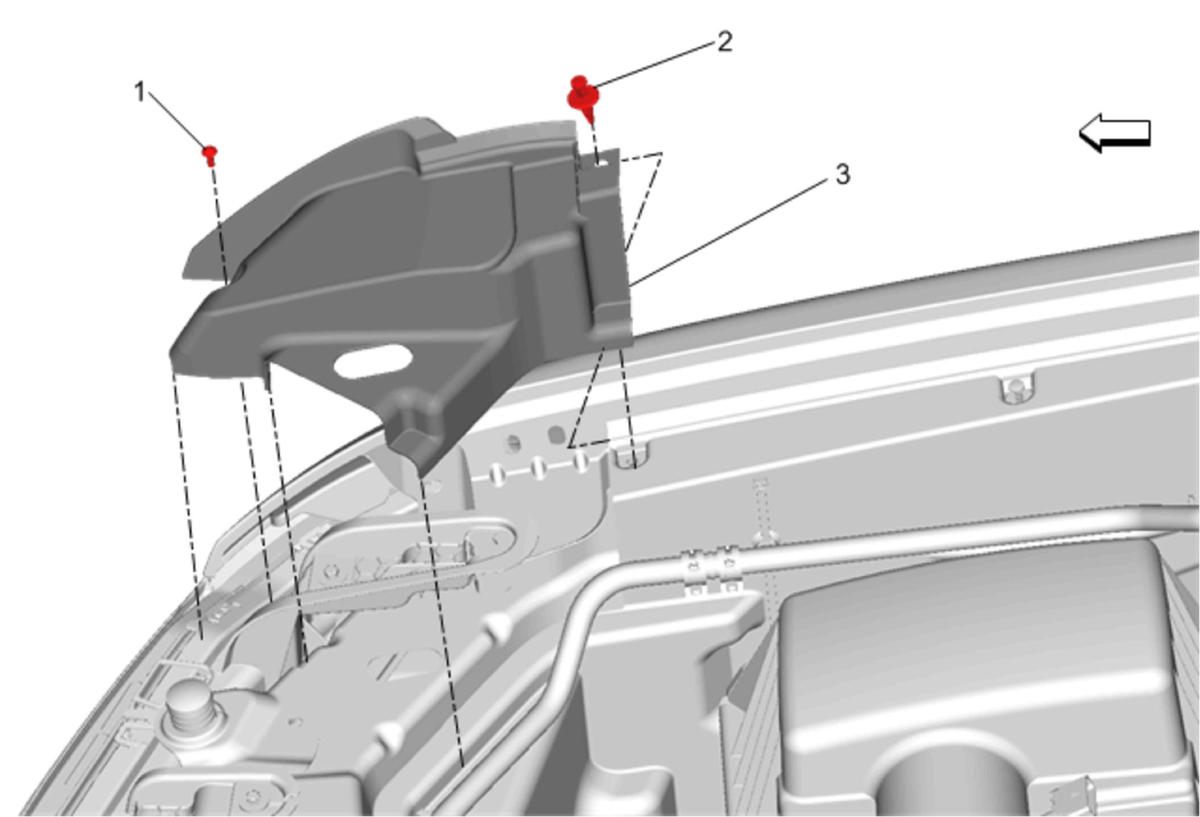

| Callout | Component Name |
|---|---|
| Preliminary Procedure If equipped remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement . |
|
| 1 | Intake Air Baffle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Intake Air Baffle Retainer |
| 3 | Intake Air Baffle Procedure Lift up and slide forward to remove from underneath intake air splash shield. |
