Headlamp Automatic Control Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

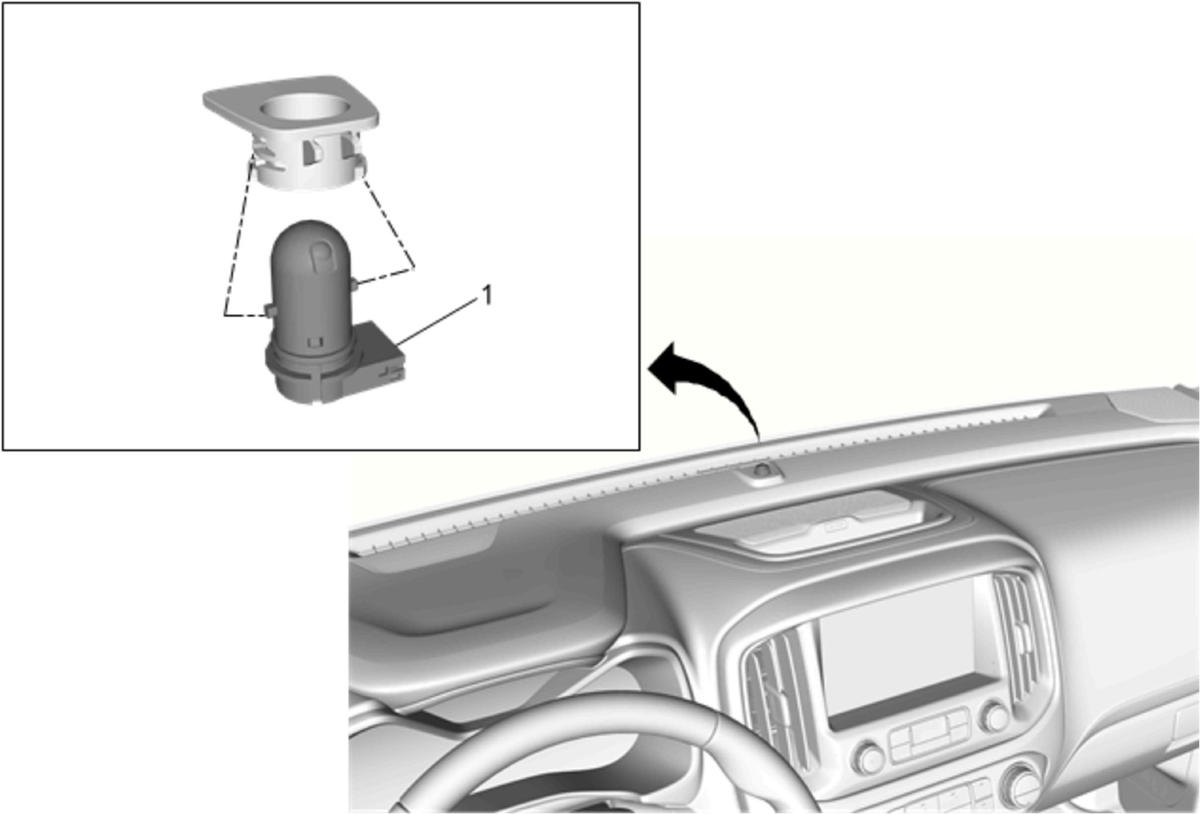

Fig 1: Headlamp Automatic Control Ambient Light Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the daytime running lamp ambient light bezel. Refer to Daytime Running Lamp Ambient Light Bezel Replacement .
1	Headlamp Automatic Control Ambient Light Sensor Procedure Carefully separate the bezel from the sensor by lining up the tabs to release. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the daytime running lamp ambient light bezel. Refer to Daytime Running Lamp Ambient Light Bezel Replacement .

Headlamp Automatic Control Ambient Light Sensor

Procedure

Carefully separate the bezel from the sensor by lining up the tabs to release.
Disconnect the electrical connector.
