Left Front of the Engine Components (LWN)

Left Front of the Engine Components (LWN)

Items
1. G13 Generator G13 Generator
2. Q18B Fuel Pressure Regulator 2 (LWN) Q18B Fuel Pressure Regulator 2 (LWN)
3. Q38 Throttle Body Q38 Throttle Body (LWN)
4. Q14 Exhaust Gas Recirculation Valve (LWN) Q14 Exhaust Gas Recirculation Valve (LWN)
5. M64 Starter Motor M64 Starter Motor X1 (LWN)M64 Starter Motor X2 (LWN)
6. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
7. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LCV/LWN)B26 Crankshaft Position Sensor (LWN)
8. Q18A Fuel Pressure Regulator 1 (LWN) Q18A Fuel Pressure Regulator 1 (LWN)
9. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
10. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
11. G1 A/C Compressor

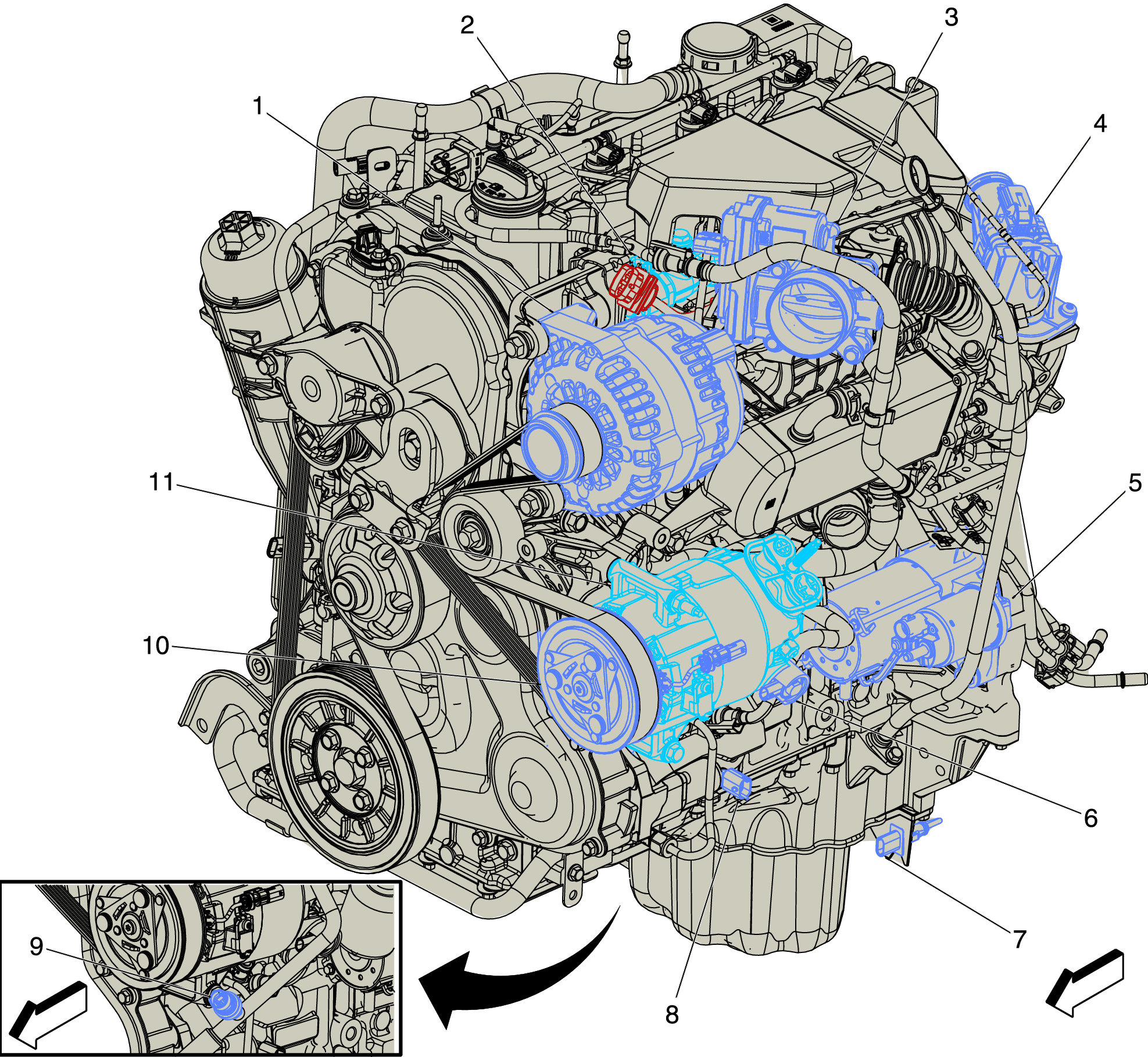

Fig 1: Left Front of the Engine Components (LWN)
GM4122340Courtesy of GENERAL MOTORS COMPANY
