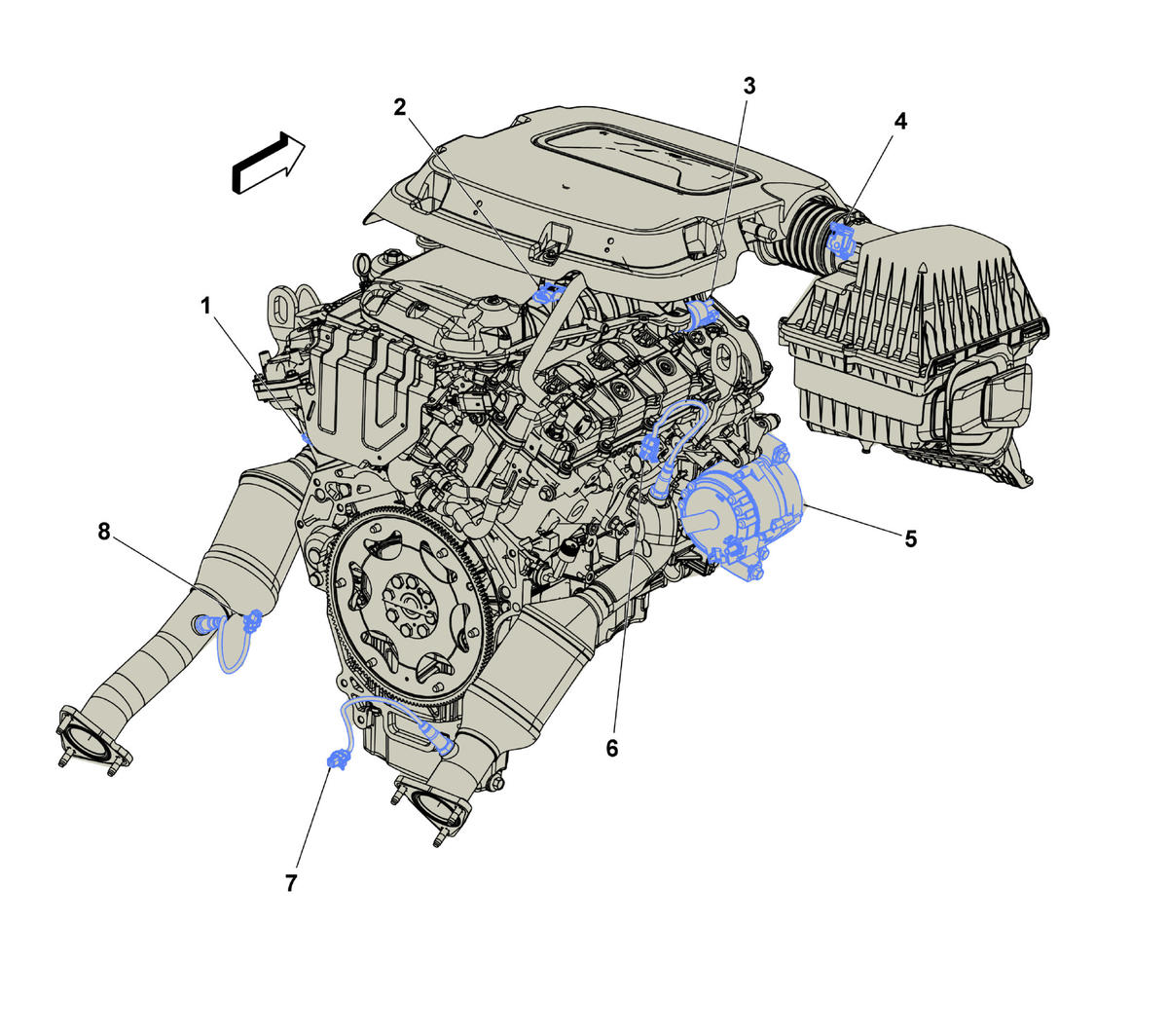

Right Rear of Engine Components (LFX)
Right Rear of Engine Components (LFX)
| Items |
|---|
| 1. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFX) |
| 2. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 3. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LFX) |
| 4. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 5. G13 Generator G13 Generator |
| 6. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX) |
| 7. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX) |
| 8. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX) |
