Accessory and Liftgate Control Module Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

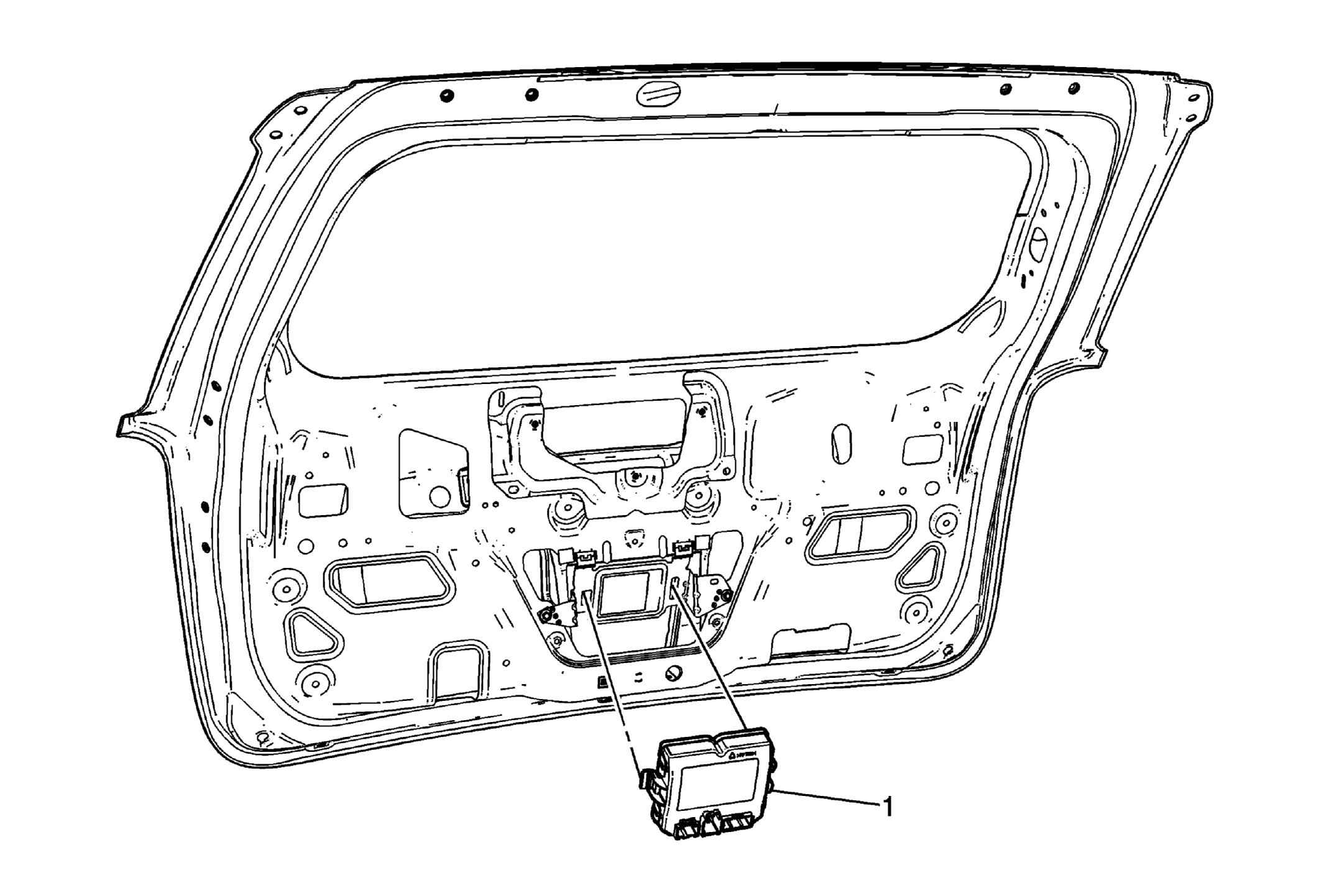

Fig 1: Accessory and Liftgate Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the lower liftgate trim panel. Refer to Liftgate Lower Trim Finish Panel Replacement
1	Accessory and Liftgate Control Module Procedure Disconnect the electrical connectors. Push in tabs to release module from the bracket. Reprogram the control module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the lower liftgate trim panel. Refer to Liftgate Lower Trim Finish Panel Replacement

Accessory and Liftgate Control Module

Procedure

Disconnect the electrical connectors.
Push in tabs to release module from the bracket.
Reprogram the control module if replaced. Refer to Control Module References .
