Fuel Pump Power Control Module Replacement

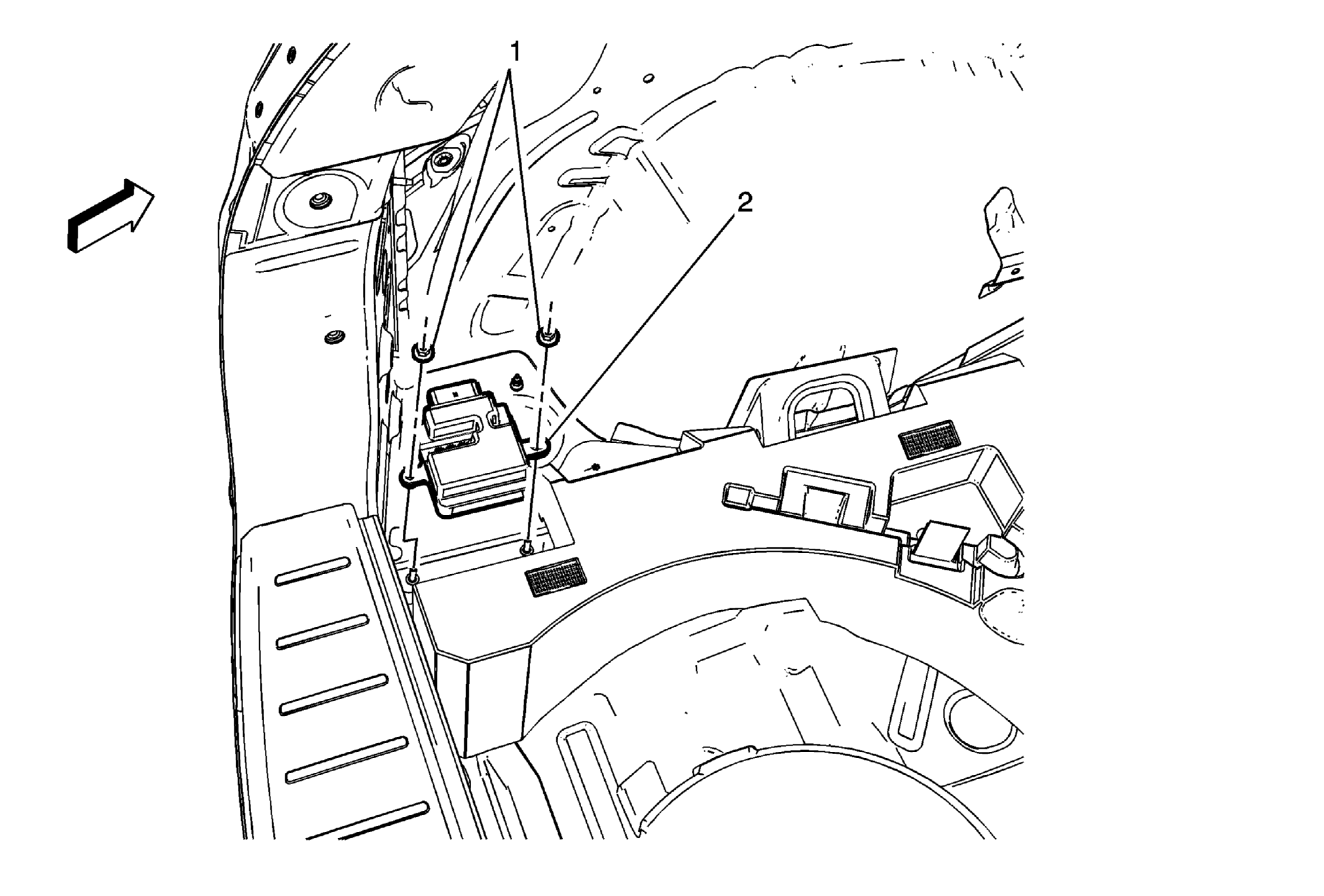

Fig 1: Fuel Pump Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fuel Pump Power Control Module Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 8 N.m (71 lb in)
2	Fuel Pump Power Control Module Procedure Open the spare tire compartment lid. Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References

Callout

Component Name

Fuel Pump Power Control Module Fasteners (Qty: 2)

CAUTION:

Tighten
8 N.m (71 lb in)

Fuel Pump Power Control Module

Procedure
