Disc Player Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

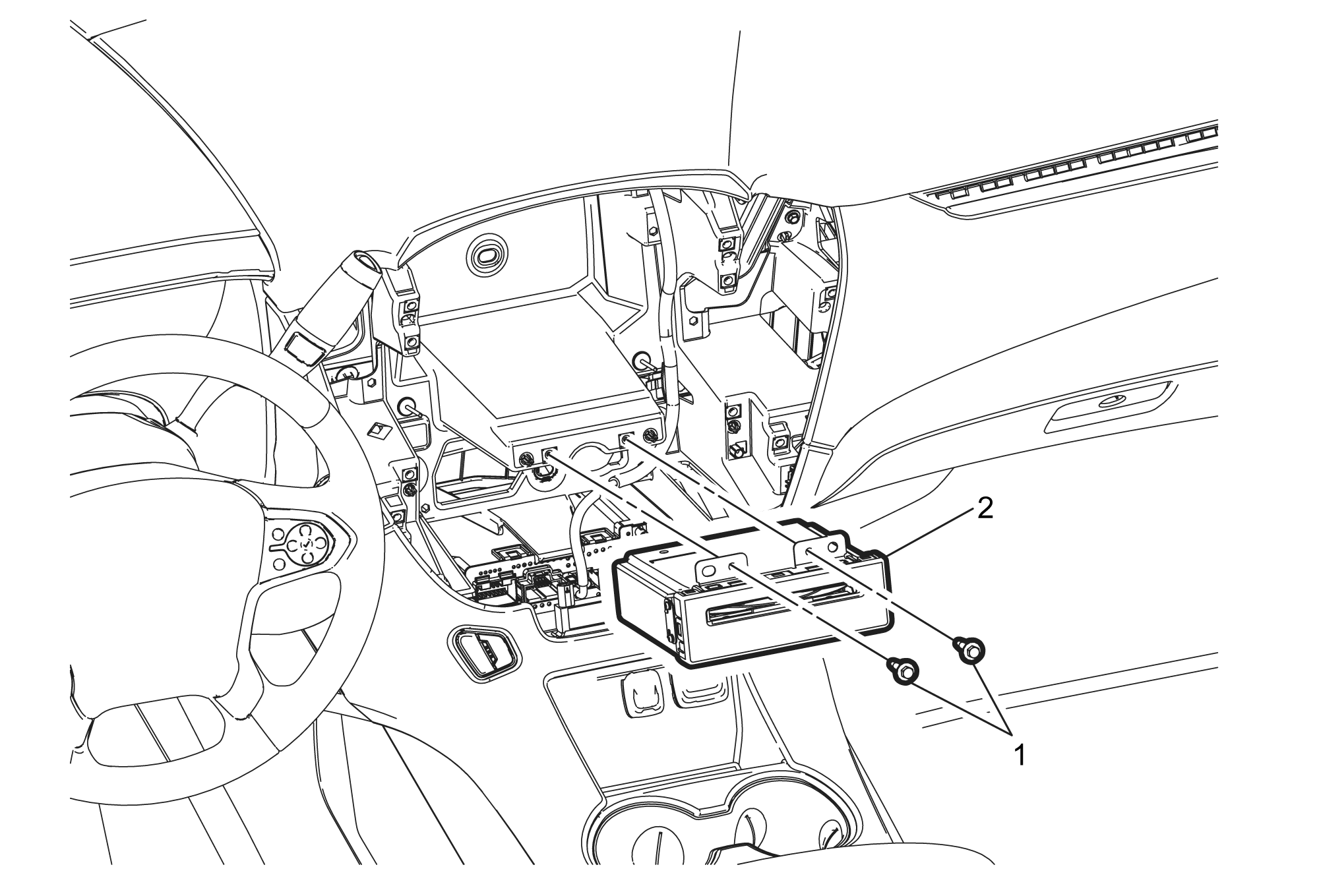

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement (Chevrolet / GMC) Radio Control Assembly Replacement (Cadillac) . |
|
| 1 | Disc Player Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Disc Player Procedure Disconnect the electrical connectors. |
