Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

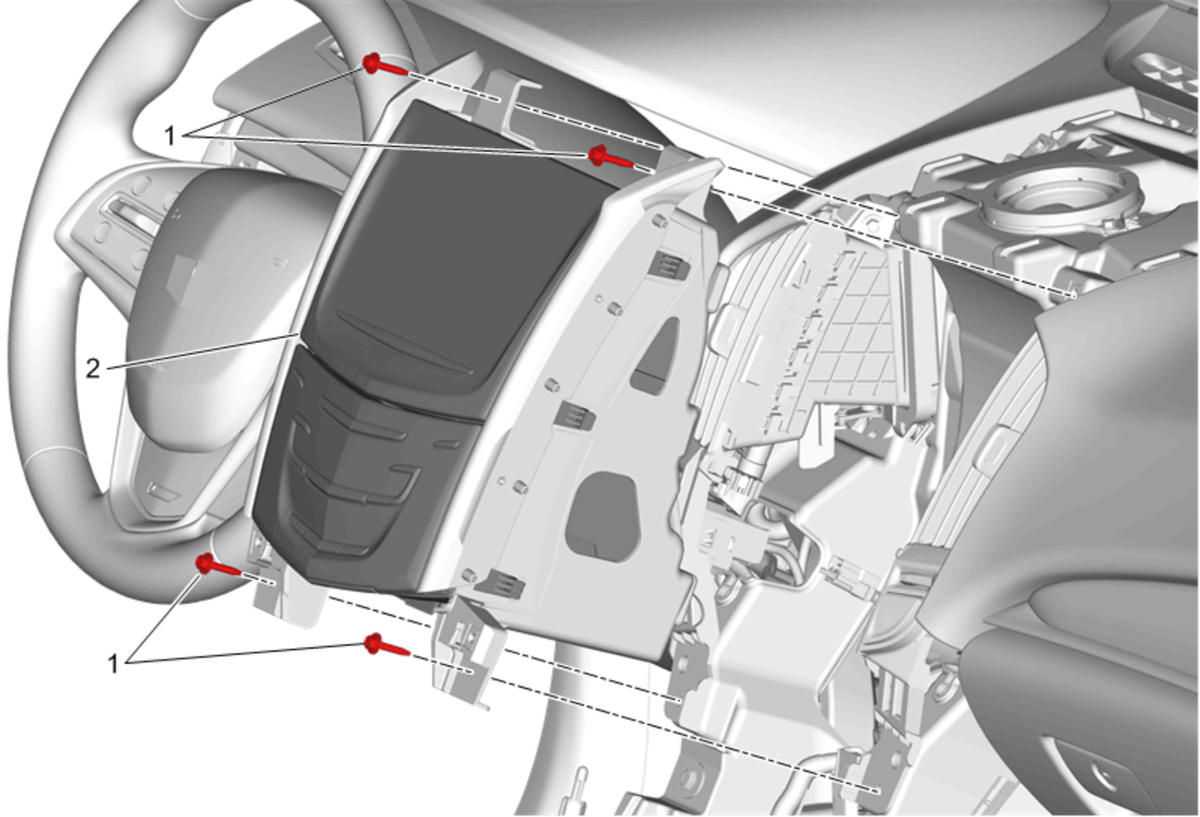

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Refer to Radio Front Center Speaker Grille Replacement Refer to Front Floor Console Trim Plate Replacement
1	Instrument Panel Accessory Center Trim Plate Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Procedure Disconnect the electrical connector. Transfer components as necessary. Refer to Control Module References for programming and setup procedures, if required.

Callout

Component Name

Preliminary Procedure

Refer to Radio Front Center Speaker Grille Replacement
Refer to Front Floor Console Trim Plate Replacement

Instrument Panel Accessory Center Trim Plate Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Control

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Refer to Control Module References for programming and setup procedures, if required.
