Cruise Control Switch Replacement

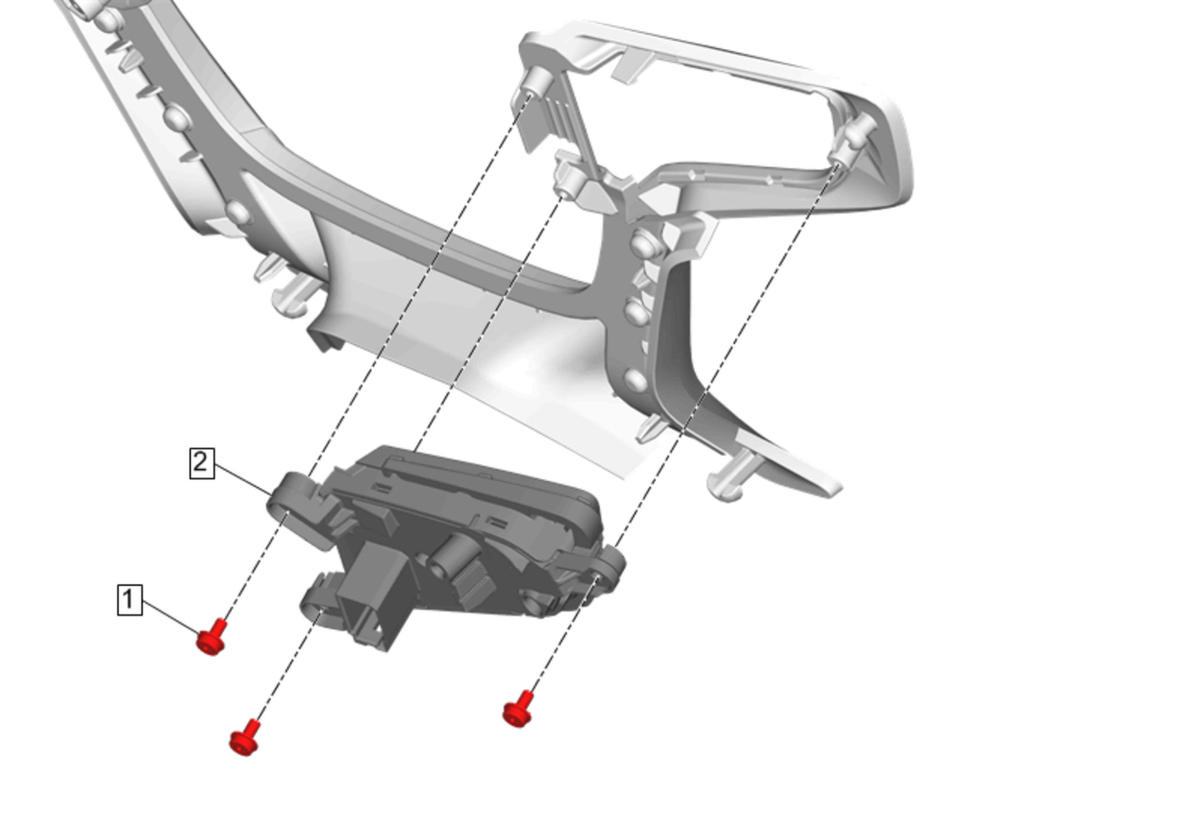

Fig 1: Cruise Control Switch
GM4380736Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Steering Wheel Spoke Cover. Refer to Steering Wheel Spoke Cover Replacement
1 Steering Wheel Spoke Cover Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Cruise Control Switch
