Installation Procedure

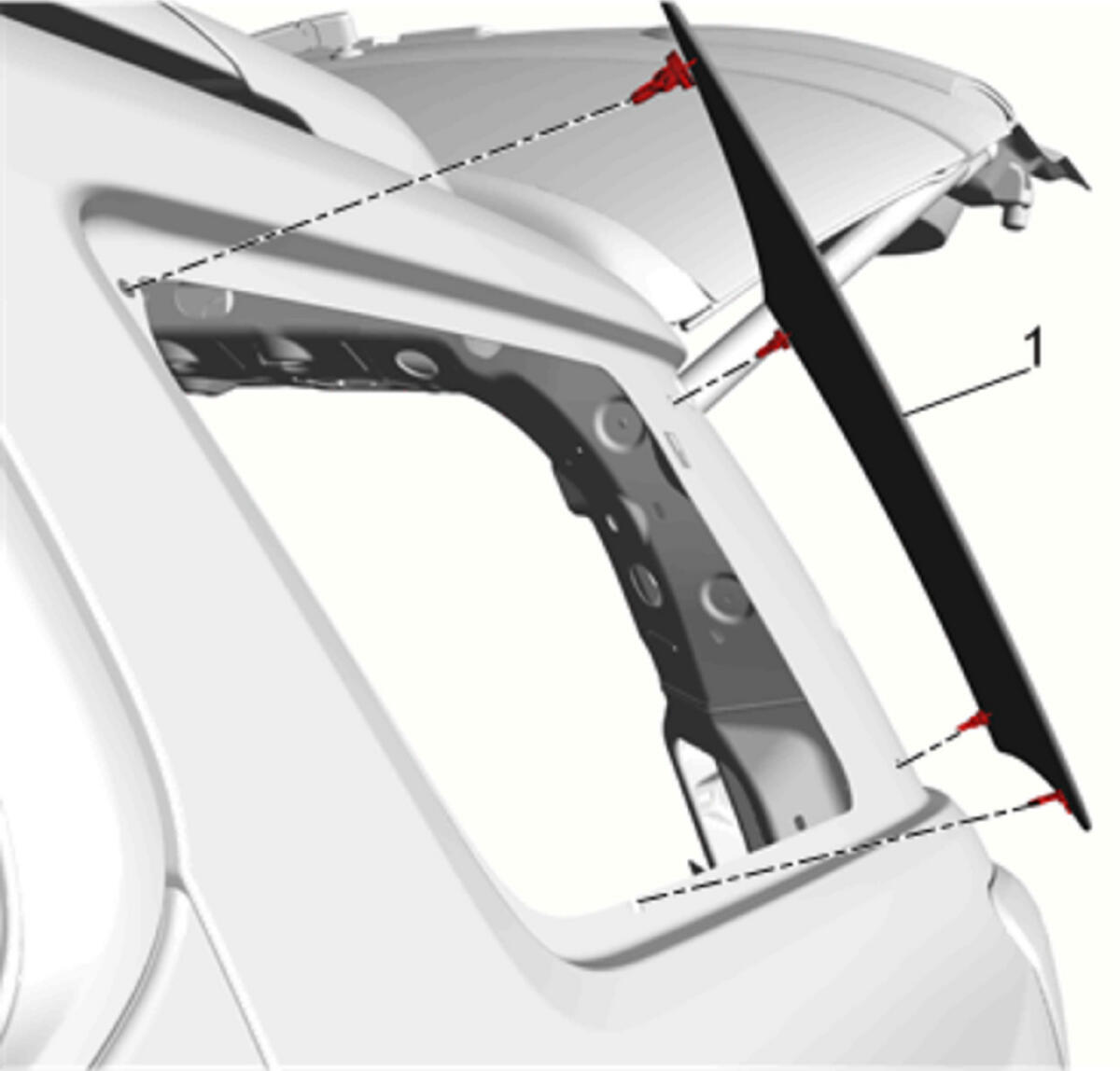

    Fig 1: Quarter Window
    GM4399567Courtesy of GENERAL MOTORS COMPANY
  1. Install Quarter Window (1) - Adhesive Installation of Quarter Windows

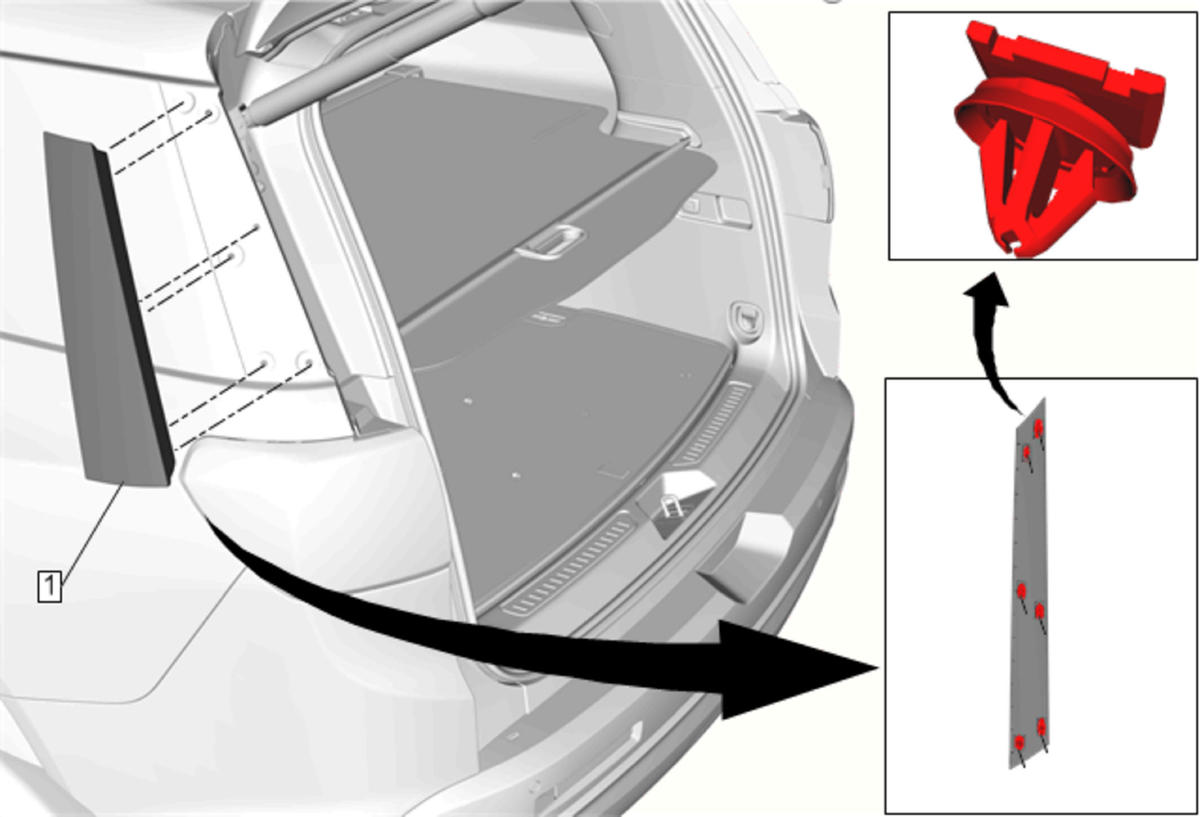

    2. Fig 2: Body Side Upper Rear Applique
    GM4374283Courtesy of GENERAL MOTORS COMPANY
  2. Install Body Side Upper Rear Applique (1) - Body Side Upper Rear Applique Replacement
  3. Install Quarter Lower Rear Trim Panel - Quarter Lower Rear Trim Panel Replacement (Left Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Left Side Without All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side Without All Terrain)
  4. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  5. Close the liftgate.
