Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Block the drive wheels.
  2. Disable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Disabling (With J77) Parking Brake Cable Adjuster Disabling (Without J77)
  3. Place the ignition in the OFF position.
  4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .

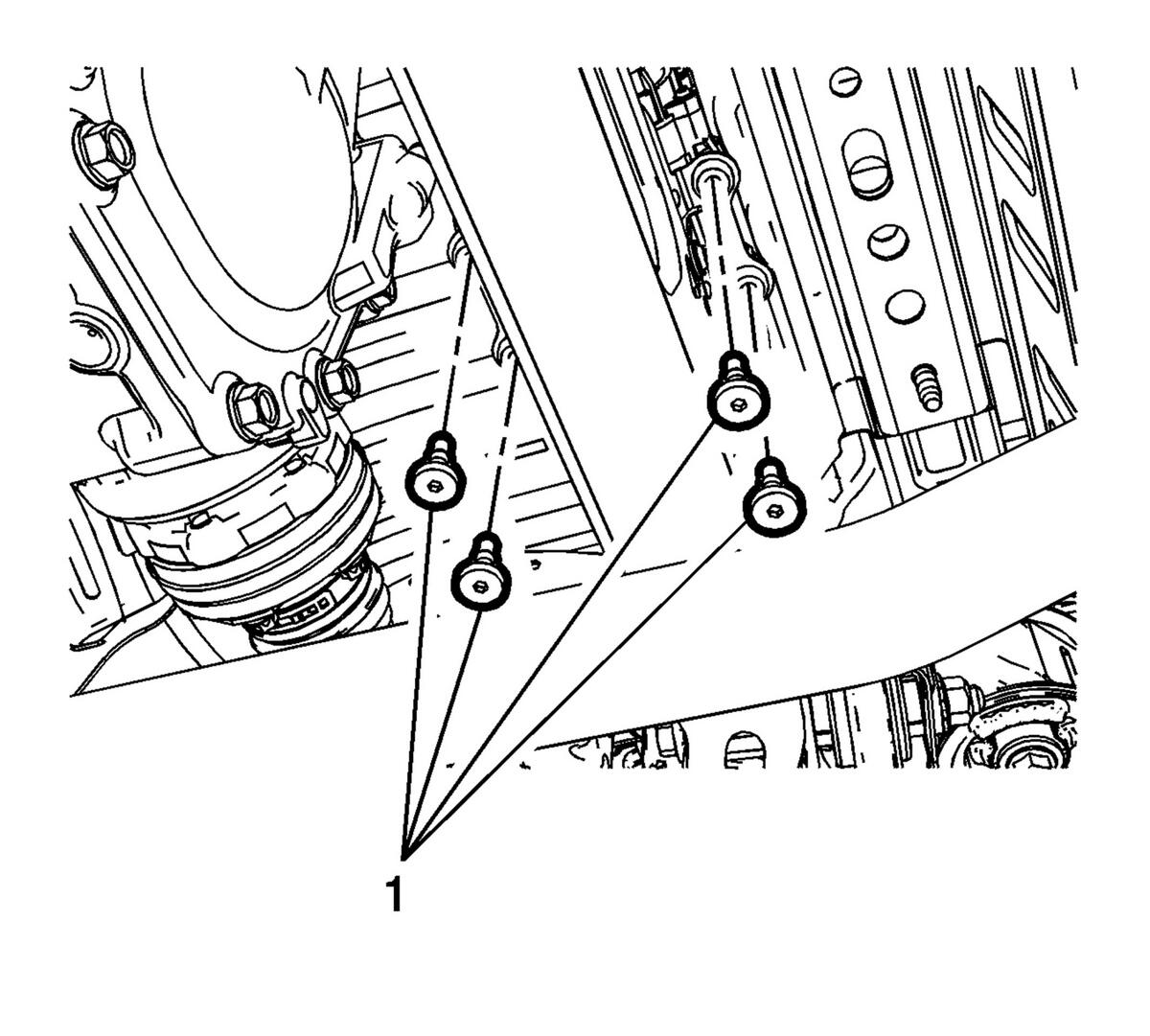

    5. Fig 1: Electronic Parking Brake Control Module Bolts
    GM2833696Courtesy of GENERAL MOTORS COMPANY
  5. Remove the electronic parking brake control module bolts (1).
  6. Position the electronic parking brake control module to access the electrical connector.
  7. Disconnect the electronic parking brake control module electrical connector.

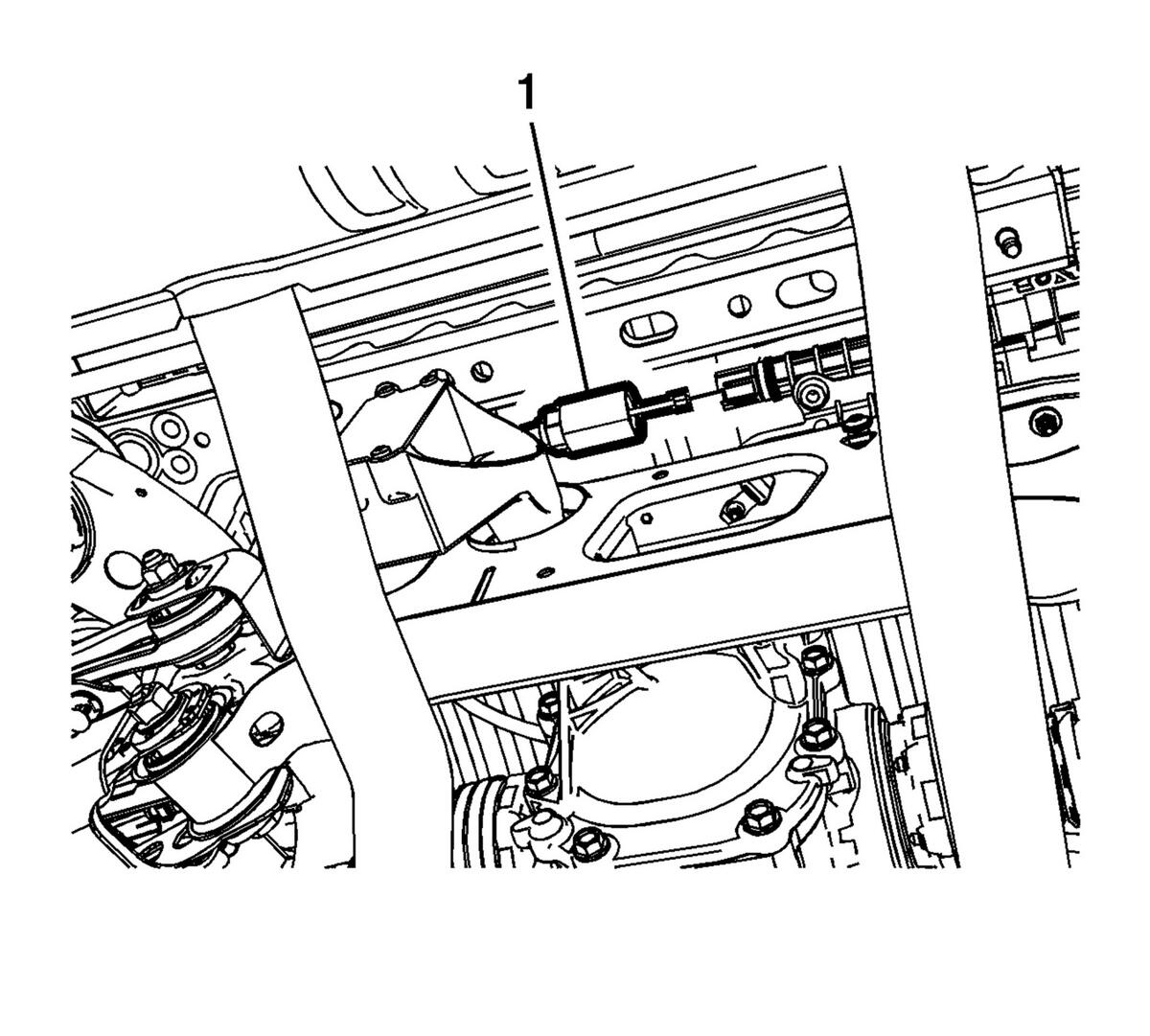

    8. Fig 2: Parking Brake Intermediate Cable Nut
    GM2833700Courtesy of GENERAL MOTORS COMPANY
  8. Disconnect the parking brake intermediate cable nut (1).

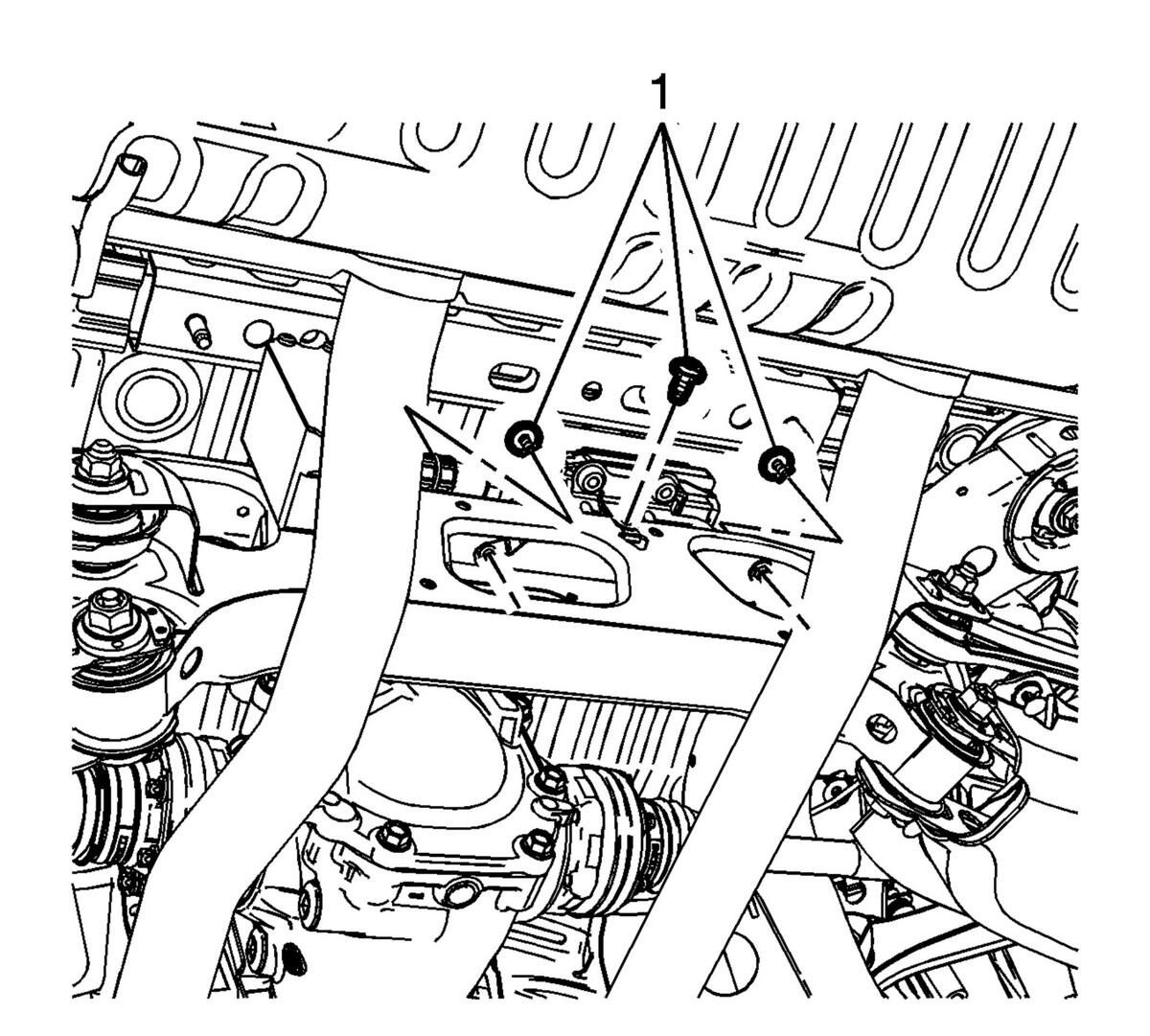

    9. Fig 3: Electronic Parking Brake Control Module Bracket Bolts
    GM3105162Courtesy of GENERAL MOTORS COMPANY
  9. Remove the electronic parking brake control module bracket bolts (1).
  10. Separate the electronic parking brake control module from the bracket.

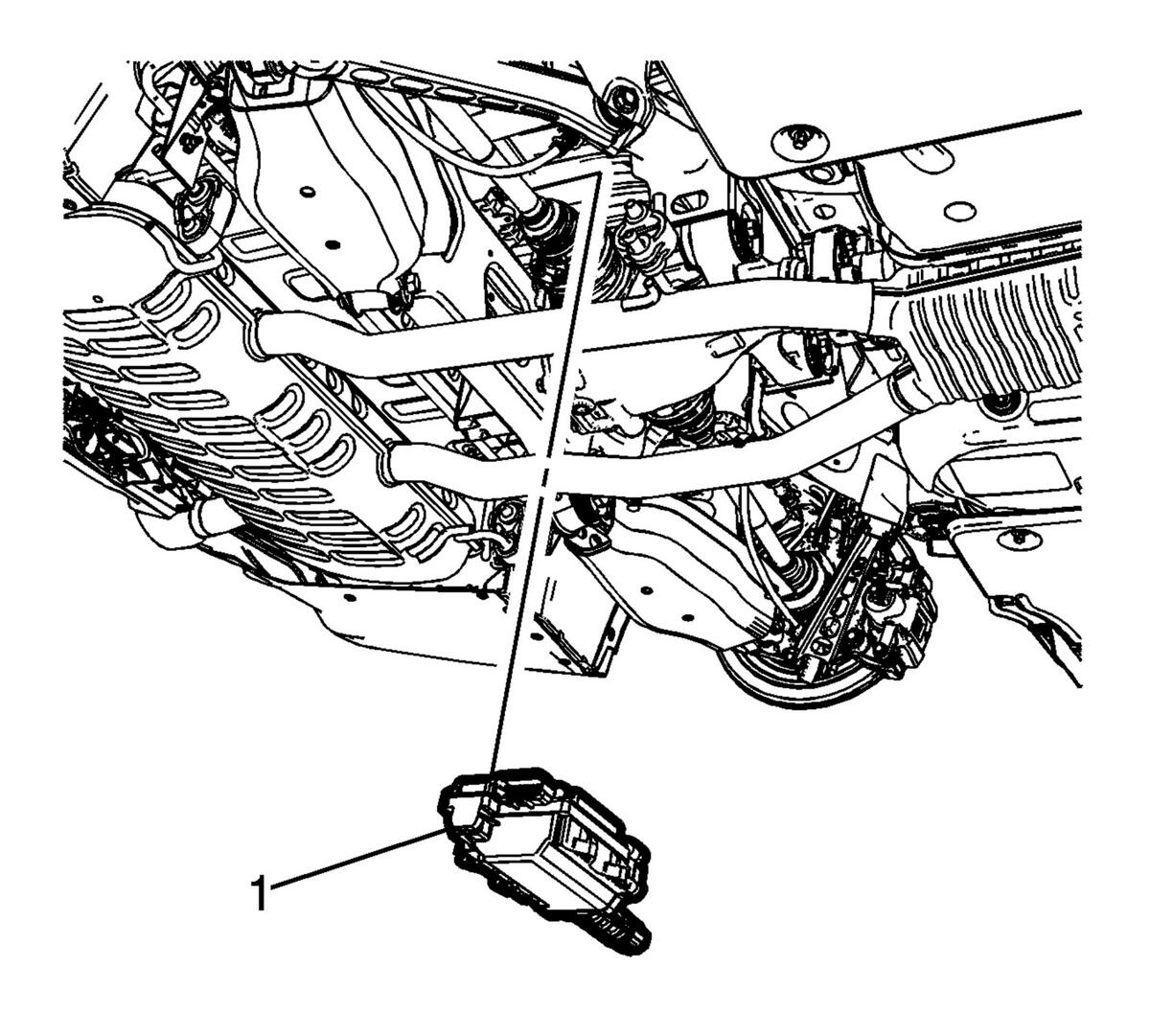

    11. Fig 4: Electronic Parking Brake Control Module
    GM2833704Courtesy of GENERAL MOTORS COMPANY
  11. Maneuver and remove the electronic parking brake control module (1).
