Front of Engine Compartment Components

Front of Engine Compartment Components

Items
1: P12L Horn - Left P12L Horn - Left
2: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
3: B55 Hood Ajar Switch B55 Engine Hood Switch
4: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
5: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
6: K22 Cooling Fan Control Module K22 Cooling Fan Control Module
7: P12R Horn - Right P12R Horn - Right

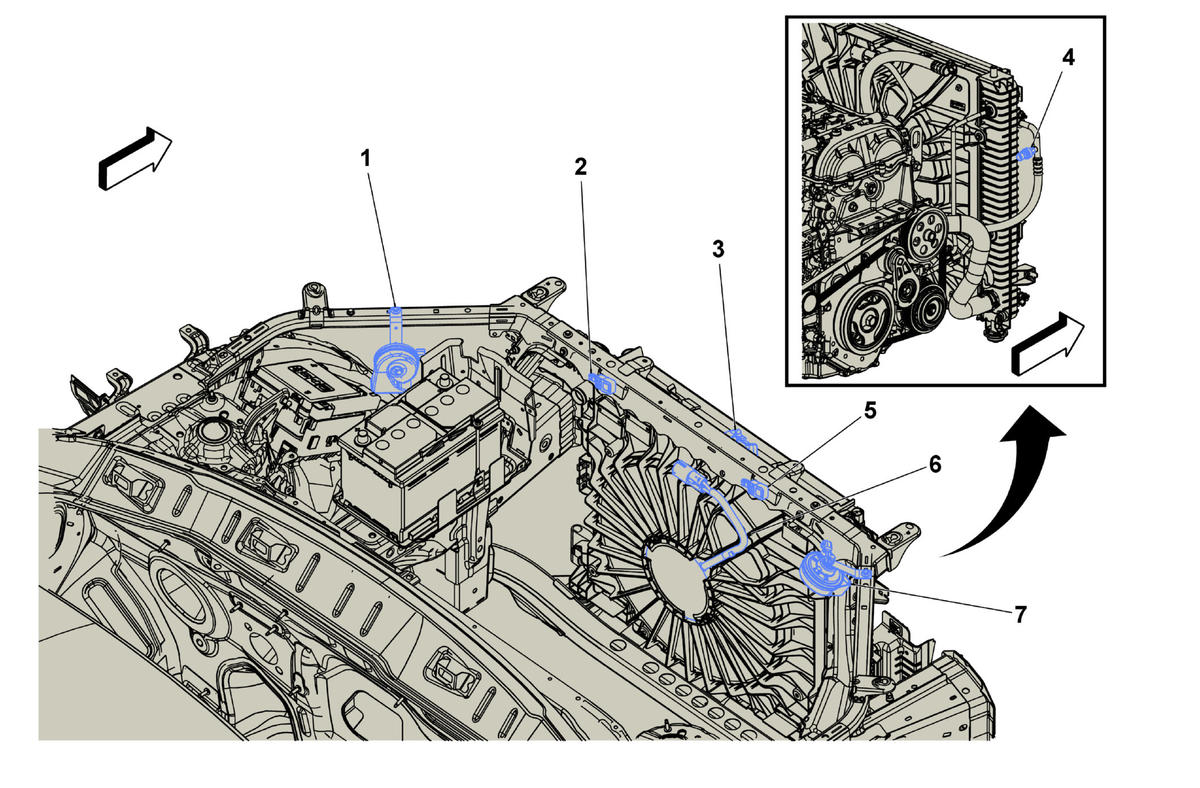

Fig 1: Front of Engine Compartment Components
GM4341262Courtesy of GENERAL MOTORS COMPANY
