Left Side of Engine Compartment Components

Items
1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2: K17 Electronic Brake Control Module K17 Electronic Brake Control Module
3: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X50A Fuse Block - Underhood X2 X50A Fuse Block - Underhood X4
4: B5LF Wheel Speed Sensor - Left Front (J61) B5LF Wheel Speed Sensor - Left Front (J61)
5: X50D Fuse Block - Battery X50D Fuse Block - Battery X1 X50D Fuse Block - Battery X10 X50D Fuse Block - Battery X2 X50D Fuse Block - Battery X3
6: B110 Battery Sensor Module (KL9) B110 Battery Sensor Module (KL9)
7: B18 Battery Current Sensor (Without KL9) B18 Battery Current Sensor (-KL9)
8: K20 Engine Control Module K20 Engine Control Module X1 (LCV)K20 Engine Control Module X1 (LGX)K20 Engine Control Module X2 (LCV)K20 Engine Control Module X2 (LGX)K20 Engine Control Module X3 (LCV)K20 Engine Control Module X3 (LGX)
9: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
10: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor

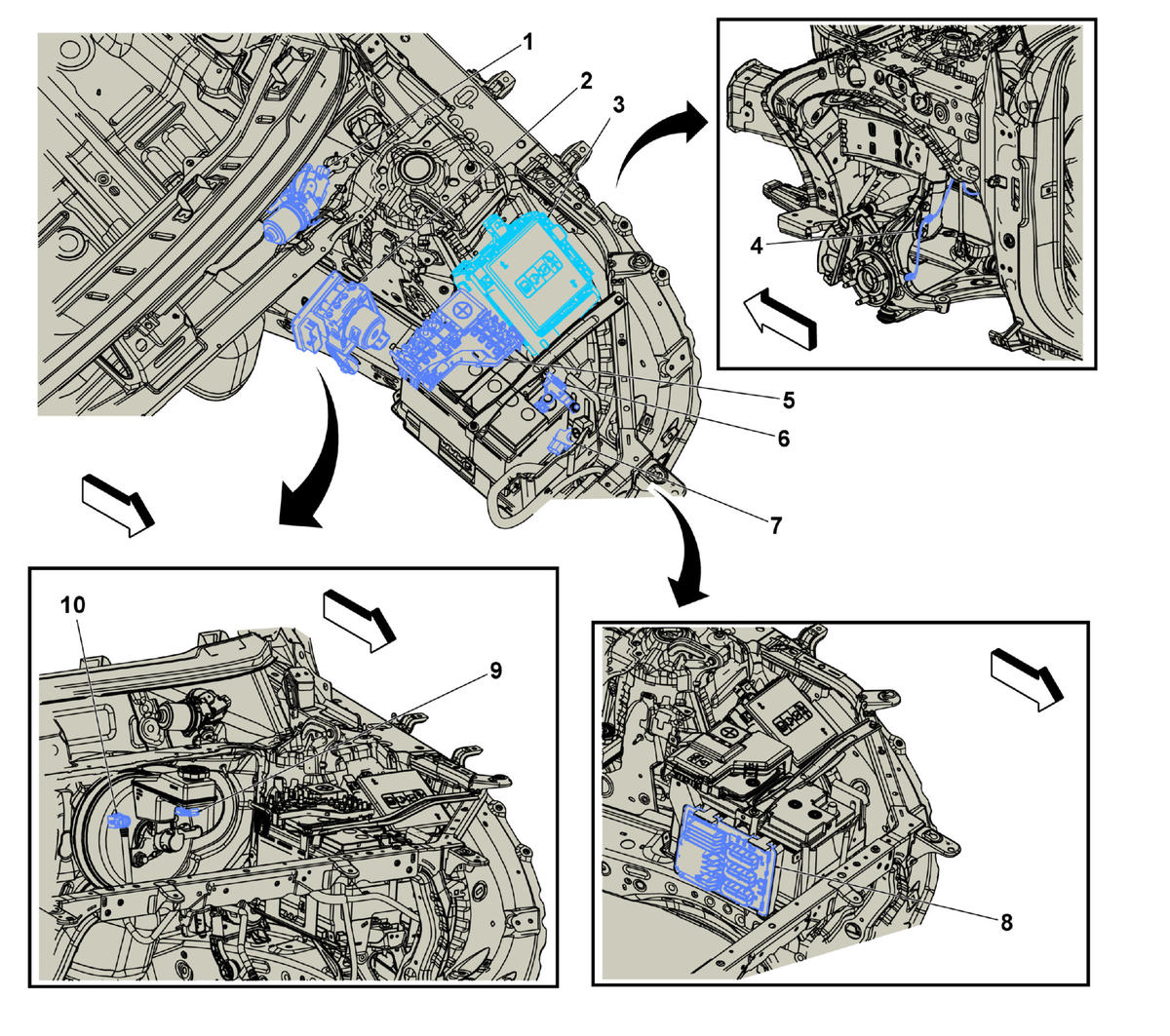

Fig 1: Left Side of Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY
