Rear Camera (IO3)

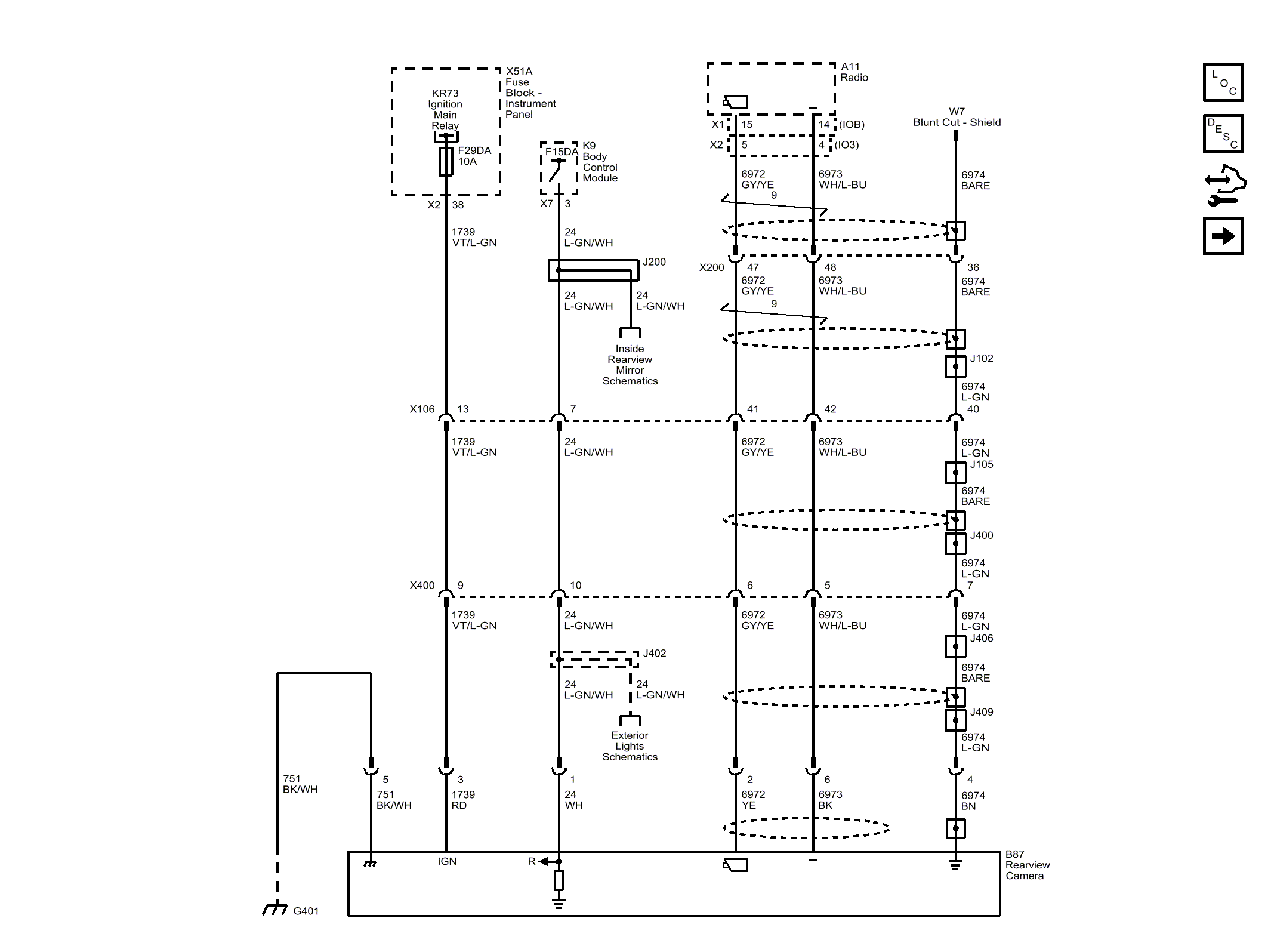

Fig 1: Rear Camera (IO3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
