Rear Camera (IO4/IO5/IO6)

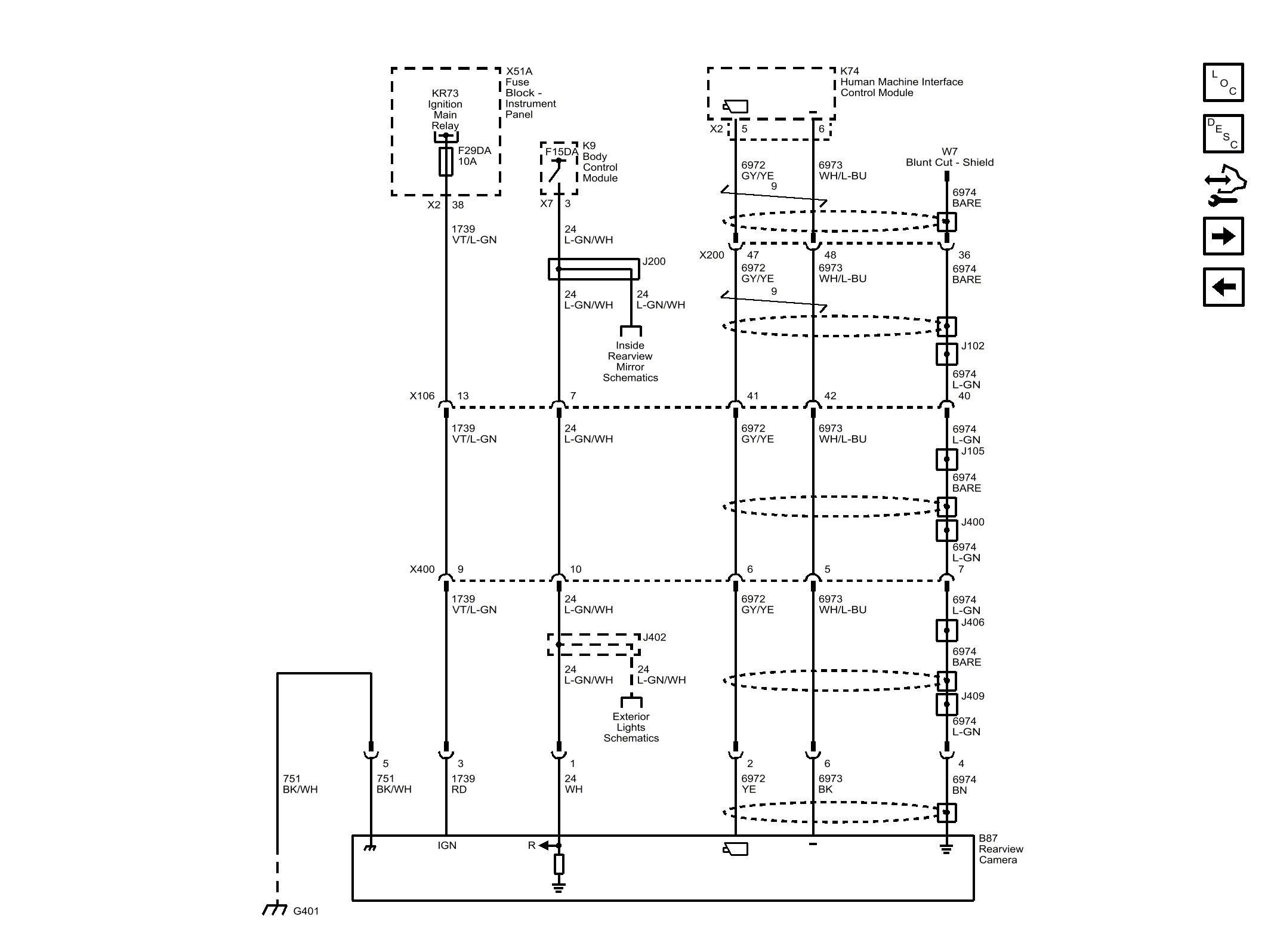

Fig 1: Rear Camera (IO4/IO5/IO6)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
