Left Side of Engine Components (LWN)

Left Side of Engine Components (LWN)

Items
1. B193B Charge Air Cooler Outlet Temperature Sensor (LWN) B193B Charge Air Cooler Outlet Temperature Sensor
2. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LWN)
3. Q85 Cooling Fan Clutch (LWN)

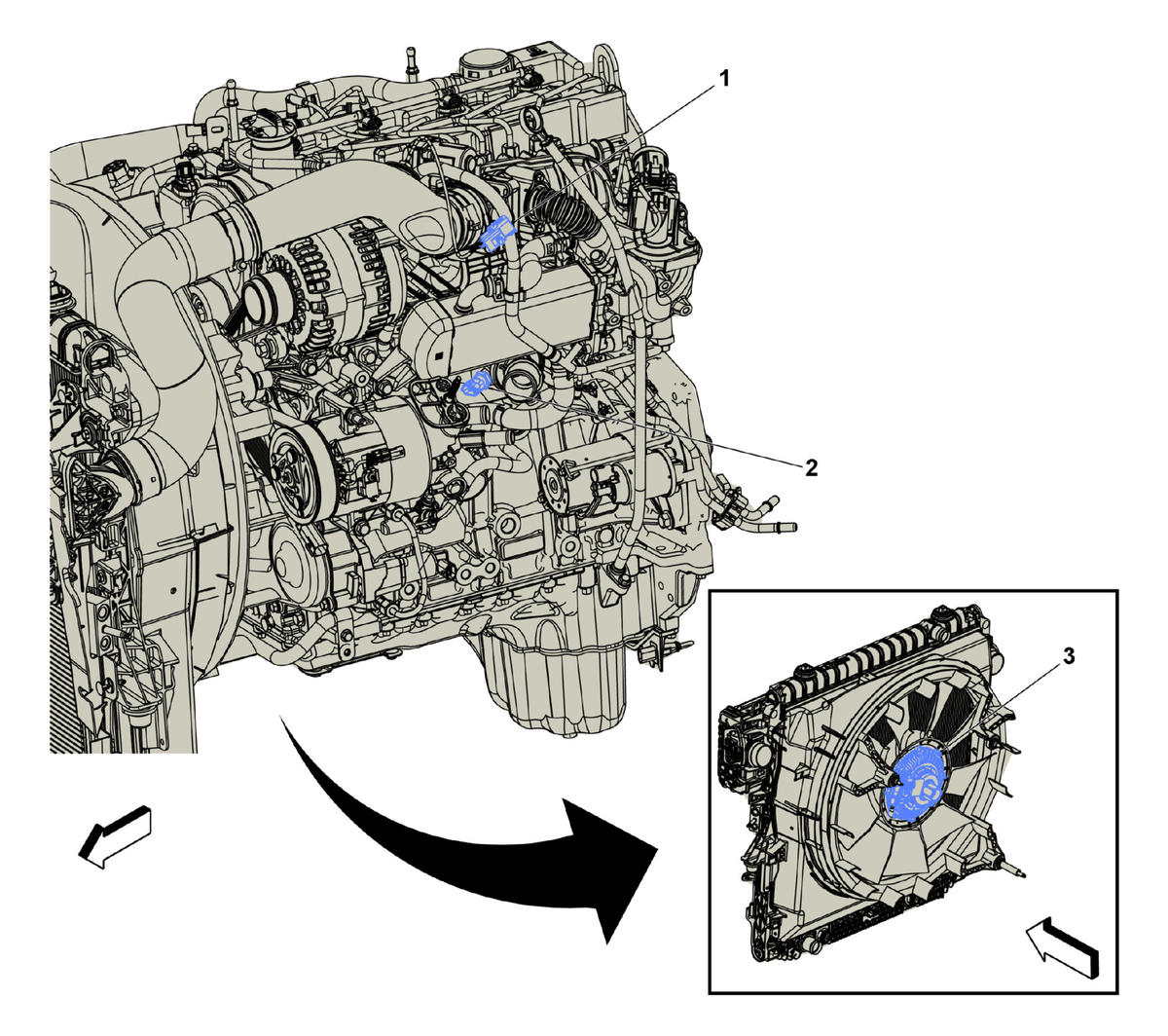

Fig 1: Left Side of Engine Components (LWN)
GM4122339Courtesy of GENERAL MOTORS COMPANY
