Air Cleaner Element Replacement

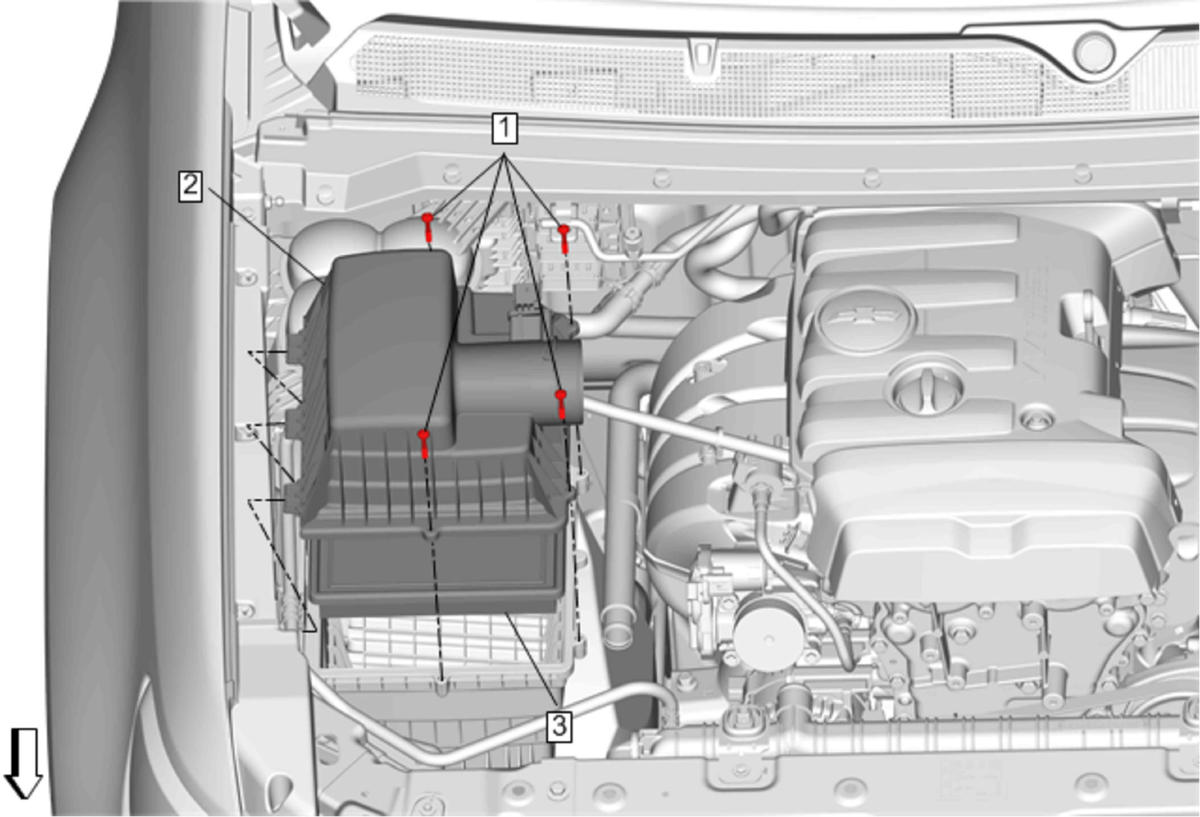

Fig 1: Air Cleaner Element
GM3963159Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
  2. Disconnect the mass airflow sensor connector.
1 Air Cleaner Assembly Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .

2 Air Cleaner Upper Cover
3 Air Cleaner Element
